GENERAL INFORMATION

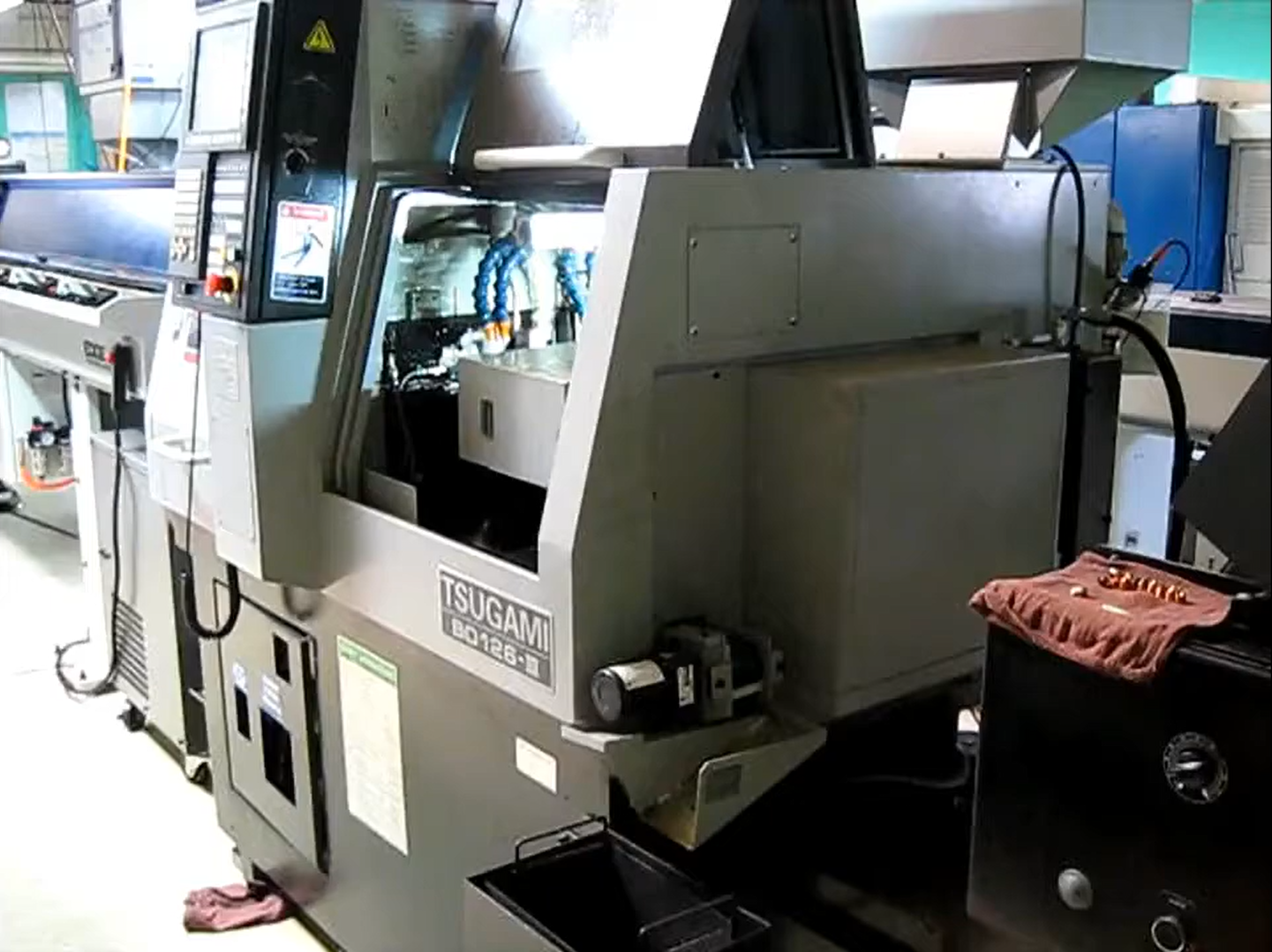

• Manufacturer: Tsugami
• Model: BO126III
• Year: 2005
• Machine Type: CNC Swiss-Type Sliding Headstock Lathe
• Condition: Used

MACHINE HOURS
• Power On Hours: 3,607
• Run Time: 1,377 Hours
• Cut Time: 506 Hours
• Previous Material: Primarily Brass with Some Copper

SPECIFICATIONS
• CNC Control: Fanuc 31i-TB
• Number of CNC Axes: 6
• Maximum Bar Capacity: 12 mm (0.47″)
• Maximum Machining Length (Guide Bushing): 210 mm (8.26″)
• Maximum Machining Length (Chucker Mode): 45 mm (1.77″)
• Tool Positions: 25
• Main Spindle Speed: 200 – 12,000 RPM
• Sub Spindle Speed: 200 – 12,000 RPM
• Live Tool Speed: 8,000 RPM
• Main Spindle Motor: 1.5 / 2.2 kW
• Sub Spindle Motor: 1.5 / 2.2 kW
• Rapid Traverse Rate: 32 m/min
• Coolant Tank Capacity: 120 Liters
• Power Requirement: 11 kVA
• Machine Weight: 2,050 kg (4,520 lbs)
• Footprint: 1,655 x 1,125 x 1,700 mm (65.2″ x 44.3″ x 66.9″)

SPINDLE CONFIGURATION
• Sliding Headstock Design
• Guide Bushing System
• Convertible to Chucker Mode
• Main Spindle Full C-Axis
• Sub Spindle with 1° Indexing

EQUIPPED WITH
• Edge Scout magazine bar feeder
• Axial shift for Scout bar feeder
• LNS Turbo MH500 chip conveyor
• MP Systems V-2 high-pressure coolant system (2,000 PSI)
• Trimist 850 mist collector
• Part conveyor
• Part catcher
• Guide bushing & chucker conversion kit

FEATURES
✓ 6-axis Swiss-type machining center for high-precision small-part production
✓ Fanuc 31i-TB CNC control for reliable and efficient operation
✓ Convertible guide bushing/chucker configuration for maximum flexibility
✓ Main and sub-spindle simultaneous machining reduces cycle times
✓ Y2-axis on back tool post enables advanced back milling operations
✓ 25-tool capacity supports complex multi-operation machining
✓ 2,000 PSI high-pressure coolant system improves chip evacuation and tool life
✓ Low cutting hours (506) indicate light production use

APPLICATIONS
• Medical components
• Aerospace precision parts
• Automotive components
• Electronics and connector manufacturing
• Precision turned brass and copper parts
• High-volume Swiss machining production
