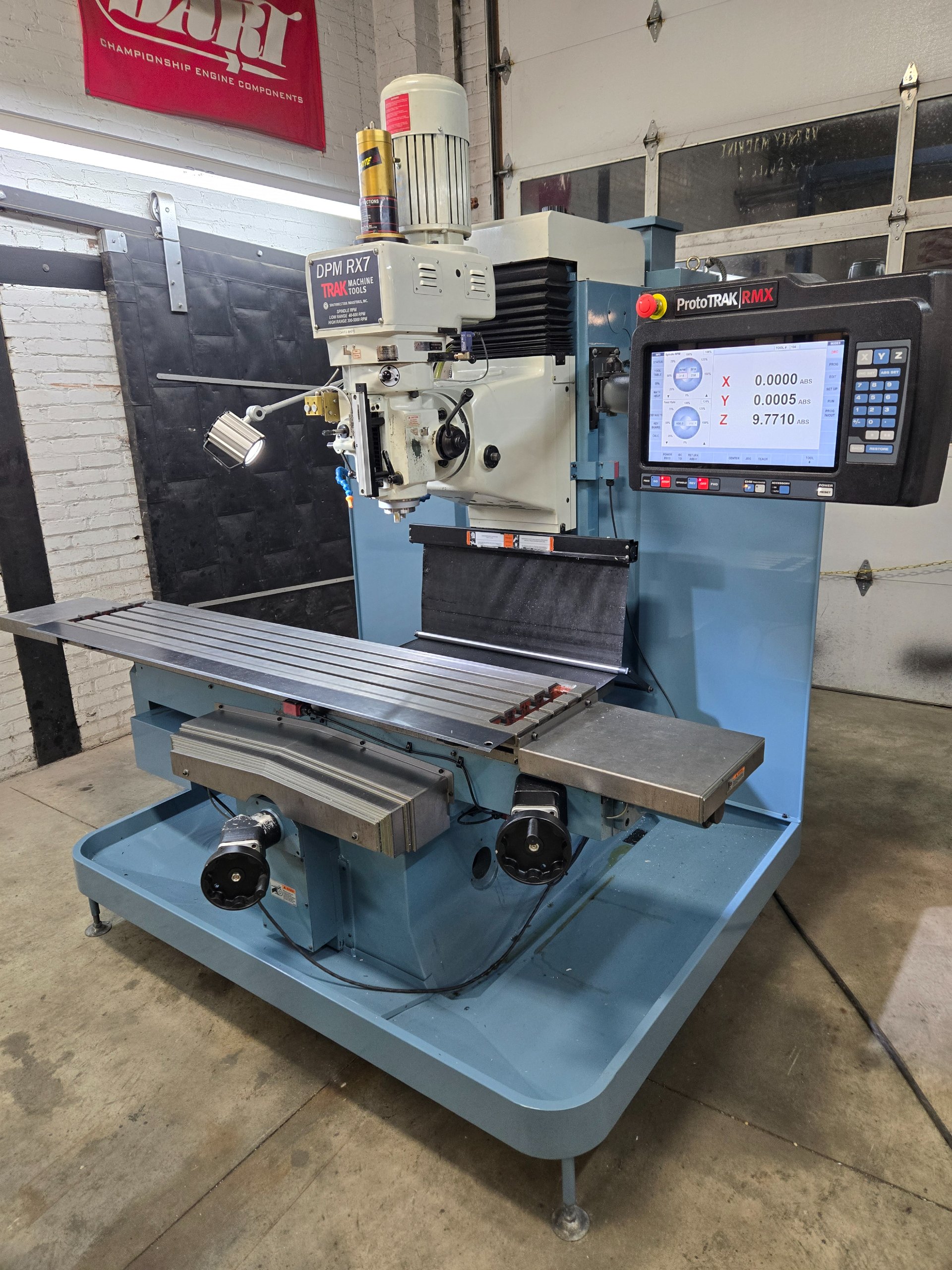

SOUTHWESTERN INDUSTRIES TRAK DPM RX7 CNC BED MILL
Original price was: $13,400.00.$9,990.00Current price is: $9,990.00.
GENERAL INFORMATION • Manufacturer: Southwestern Industries • Model: TRAK DPM RX7 • Year: 2020 • Machine Type: CNC Bed Mill • CNC Control: ProtoTRAK RMX • […]
GENERAL INFORMATION
• Manufacturer: Southwestern Industries
• Model: TRAK DPM RX7
• Year: 2020
• Machine Type: CNC Bed Mill
• CNC Control: ProtoTRAK RMX
• Condition: Used
SPECIFICATIONS
• Table Size: 76″ x 14″
• T-Slots: 4 x 0.63″
• X-Axis Travel: 60″
• Y-Axis Travel: 23.5″
• Z-Axis Travel: 23″
• Quill Travel: 5.5″
• Quill Diameter: 4.56″
• Spindle Taper: 40 Taper
• Spindle Speed Range:
– Low Range: 40 – 600 RPM
– High Range: 300 – 5,000 RPM
• Spindle Motor: 7.5 HP
• Spindle Center to Column: 24″
• Maximum Spindle Nose to Table: 24.25″
• Maximum Workpiece Weight: 2,200 lbs
• Rapid Traverse:
– X & Y: 400 IPM
– Z: 250 IPM
• Coolant Capacity: 15 Gallons
• Maximum Drilling Capacity: 1″
• Maximum Milling Capacity: 7 in³/min
• Maximum Tapping Capacity: 1-8
• Power Requirements: 200–240V, 3-Phase, 35.5A
• Machine Weight: 7,480 lbs
FEATURES
✓ ProtoTRAK RMX CNC control for intuitive conversational programming
✓ Large 76″ table with generous travels for oversized workpieces
✓ Powerful 7.5 HP spindle with dual speed ranges
✓ 40 taper spindle for rigid machining applications
✓ Rapid traverse rates up to 400 IPM
✓ Swiveling head for angular machining applications
✓ Heavy-duty bed mill construction for excellent rigidity
✓ Ideal for prototype, repair, toolroom, and production work
EQUIPPED WITH
• ProtoTRAK RMX CNC Control
• 40 taper spindle
• Variable speed spindle drive
• Swiveling milling head
• Coolant system
• Power quill feed
APPLICATIONS
• Toolroom machining
• Prototype manufacturing
• General metalworking
• Mold and fixture production
• Repair and maintenance work
• Production milling
• Precision drilling and tapping
SHIPPING DIMENSIONS
Please note that this dimensions are estimative.
