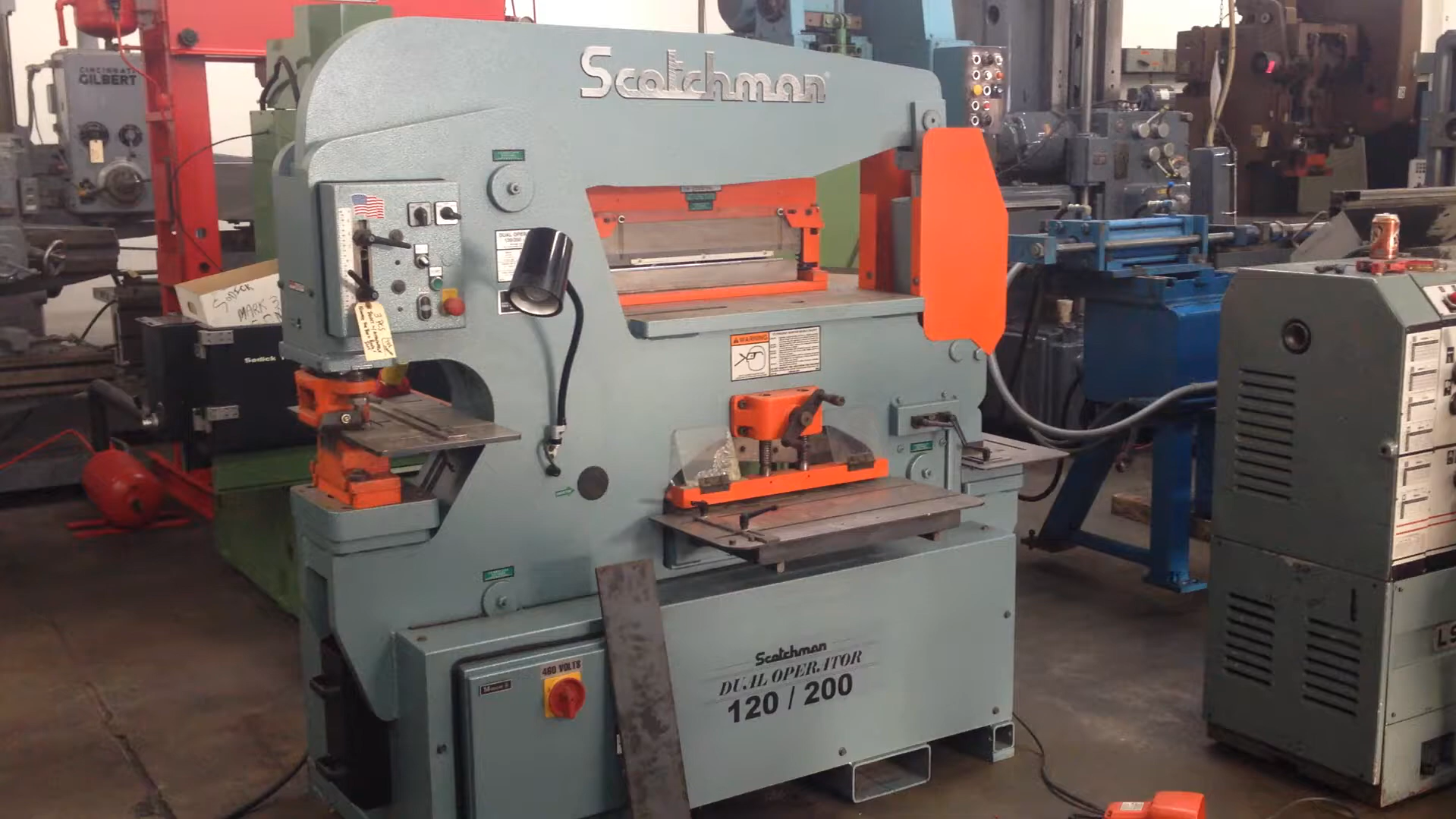

SCOTCHMAN DO 120/200-24M DUAL OPERATOR HYDRAULIC IRONWORKER
Original price was: $20,000.00.$16,800.00Current price is: $16,800.00.
GENERAL INFORMATION • Manufacturer: Scotchman • Model: DO 120/200-24M • Year: 2013 • Machine Type: Dual Operator Hydraulic Ironworker • Condition: Used SPECIFICATIONS PUNCH STATION • […]
GENERAL INFORMATION
• Manufacturer: Scotchman
• Model: DO 120/200-24M
• Year: 2013
• Machine Type: Dual Operator Hydraulic Ironworker
• Condition: Used
SPECIFICATIONS
PUNCH STATION
• Punch Capacity: 120 Tons
• Maximum Punching Capacity: 1-1/2″ Hole through 1″ Mild Steel
• Throat Depth: 12″
• Adjustable Electric Stroke Control with Scale
FLAT BAR SHEAR
• Shear Capacity: 200 Tons
• Blade Length: 24″
• Capacity: 1″ x 12″
• Capacity: 3/4″ x 20″
• Capacity: 1/2″ x 24″
ANGLE SHEAR
• Capacity: 6″ x 6″ x 1/2″
RECTANGULAR NOTCHER
• Capacity: 3″ x 5″
• Material Thickness: Up to 3/4″
POWER & HYDRAULICS
• Hydraulic Pressure: 3,500 PSI
• Main Motor: 10 HP
• Electrical: Available in 1-Phase or 3-Phase configurations (208V, 230V, or 460V)
MACHINE WEIGHT
• Approximate Weight: 6,204 lbs
FEATURES
✓ Dual-operator design allows two workstations to operate simultaneously, increasing shop productivity
✓ Powerful 120-ton punching station for heavy-duty fabrication
✓ 200-ton flat bar shear handles large plate and bar stock with ease
✓ Integrated angle shear and rectangular notcher eliminate secondary operations
✓ Adjustable electric stroke control improves punching speed and accuracy
✓ Heavy-duty hydraulic construction designed for continuous industrial use
APPLICATIONS
• Structural steel fabrication
• General metal fabrication
• Plate and flat bar processing
• Angle iron cutting
• Punching and notching operations
• Industrial manufacturing and maintenance shops
SHIPPING DIMENSIONS
Please note that this dimensions are estimative.
