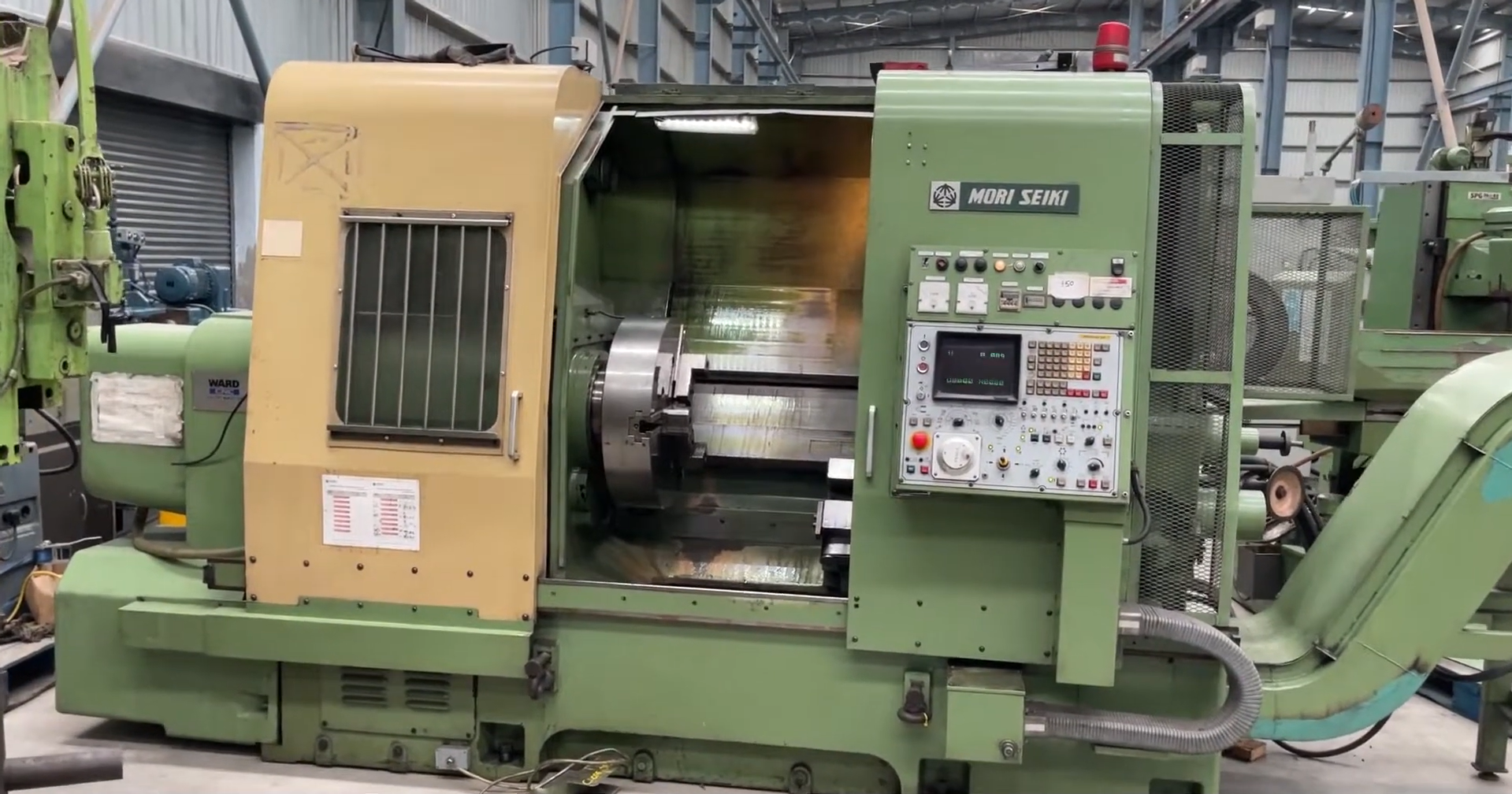

GENERAL INFORMATION
• Manufacturer: Mori Seiki
• Model: SL-6
• Machine Type: CNC Turning Center
• Condition: Used

SPECIFICATIONS
• Maximum Turning Diameter: 600 mm
• Distance Between Centers: 900 mm
• Swing Over Bed: 700 mm

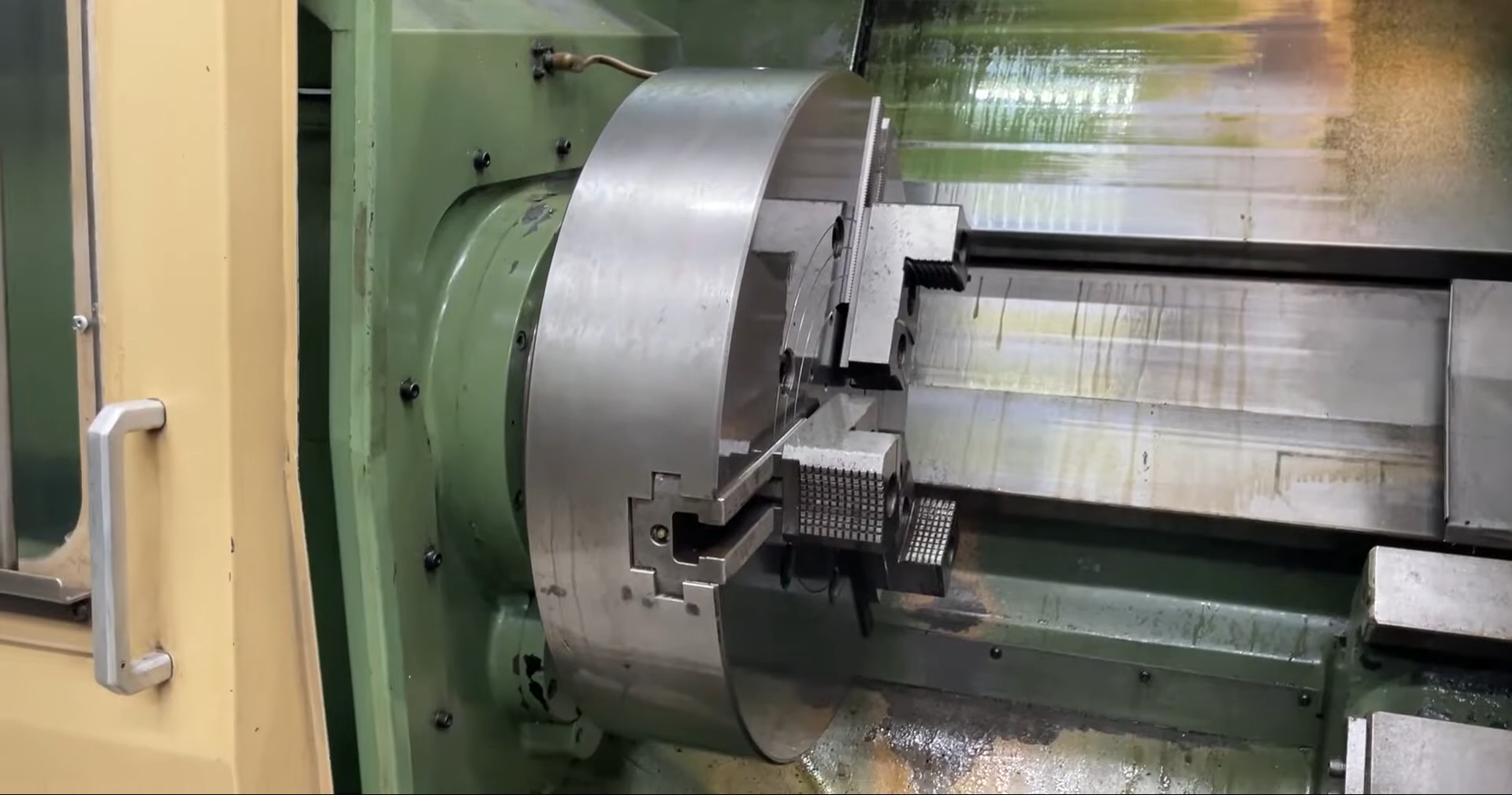

• Chuck Size: 600 mm Hydraulic Power Chuck
• Guideway Type: Box Ways

SPINDLE
• Maximum Spindle Speed: 1,800 RPM
• Bar Capacity: 95 mm
• Spindle Motor Power: 37 / 30 kW

CONTROL SYSTEM

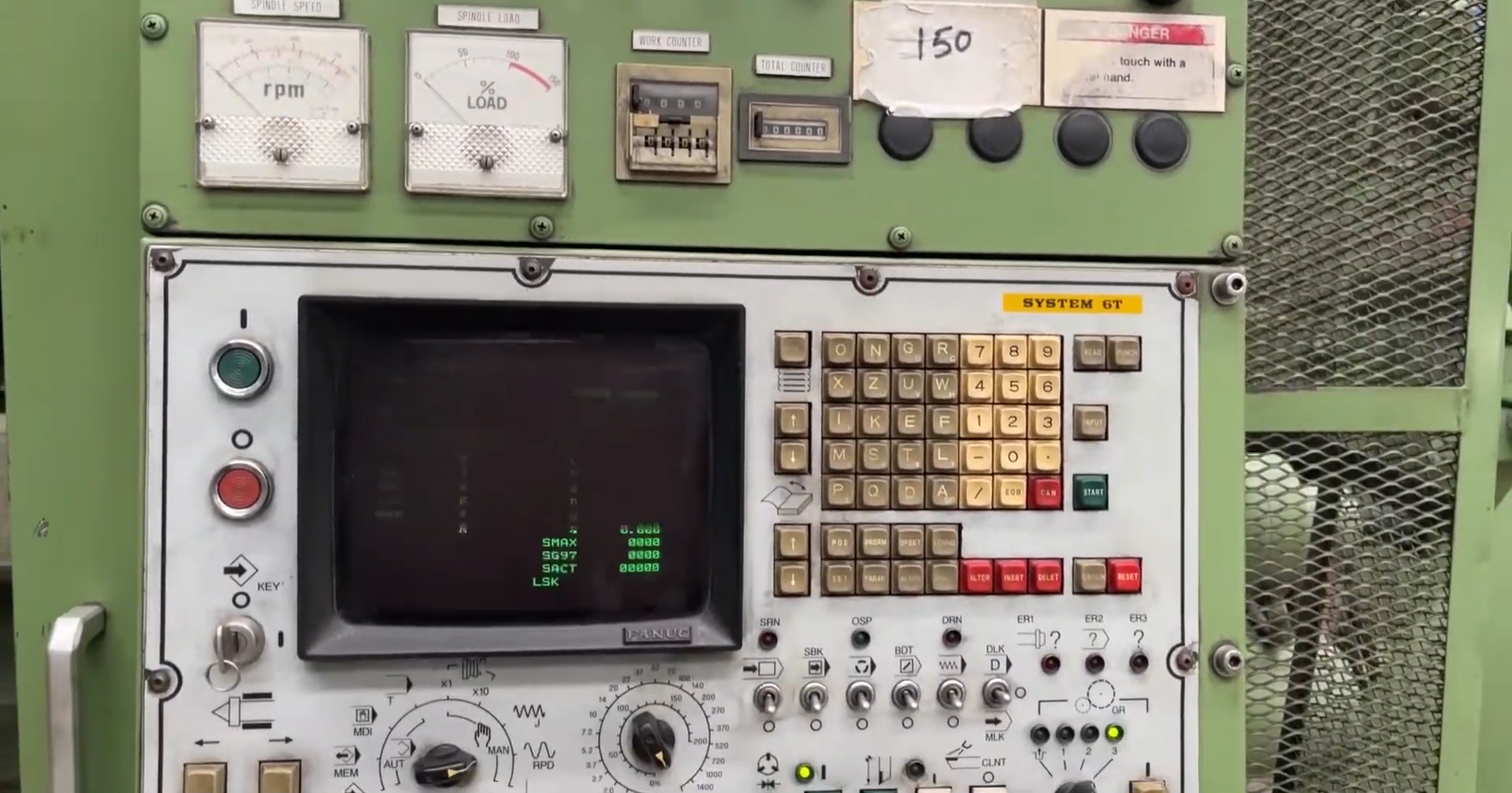

• Fanuc 6T CNC Control

TURRET

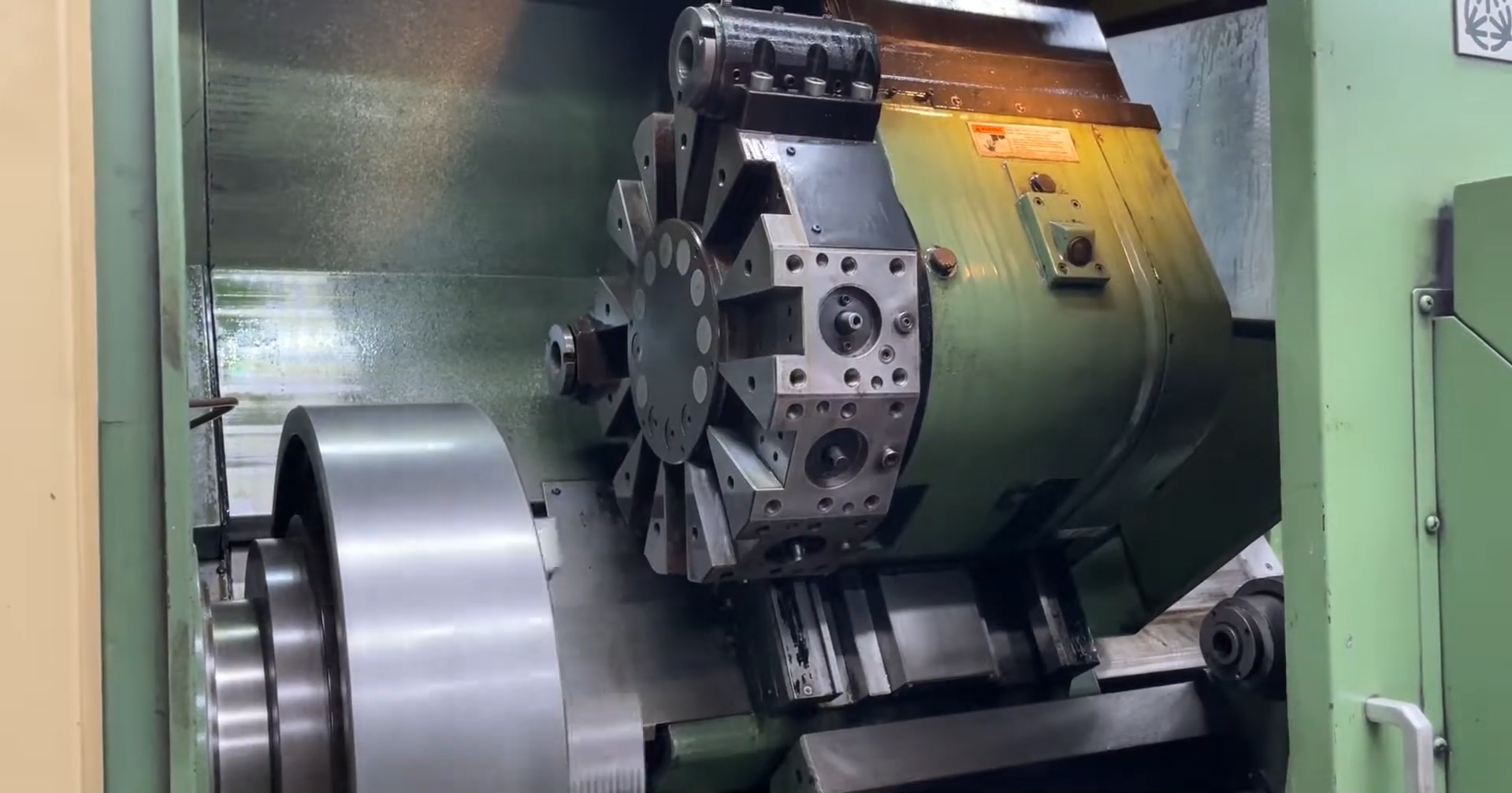

• 12-Station Turret

TAILSTOCK
• Programmable Tailstock Included

MACHINE DIMENSIONS
• Approximate Floor Space: 4.7 x 1.9 x 2.4 m
• Approximate Machine Weight: 9,000 kg (9 tons)

EQUIPPED WITH
• 600 mm Hydraulic Power Chuck
• 12-Station Turret
• Tailstock
• Chip Conveyor

FEATURES
✓ Heavy-duty box way construction provides exceptional rigidity and stability
✓ Large 600 mm hydraulic chuck accommodates oversized workpieces
✓ Powerful spindle motor designed for demanding turning applications
✓ Reliable Fanuc CNC control for proven performance and ease of operation
✓ Chip conveyor improves productivity by ensuring efficient chip evacuation
✓ Ideal for roughing and finishing large precision components

APPLICATIONS
• Heavy-duty CNC turning
• Oil & gas components
• Mining and construction equipment
• Large shafts and flanges
• Industrial repair and remanufacturing
• General precision machining
