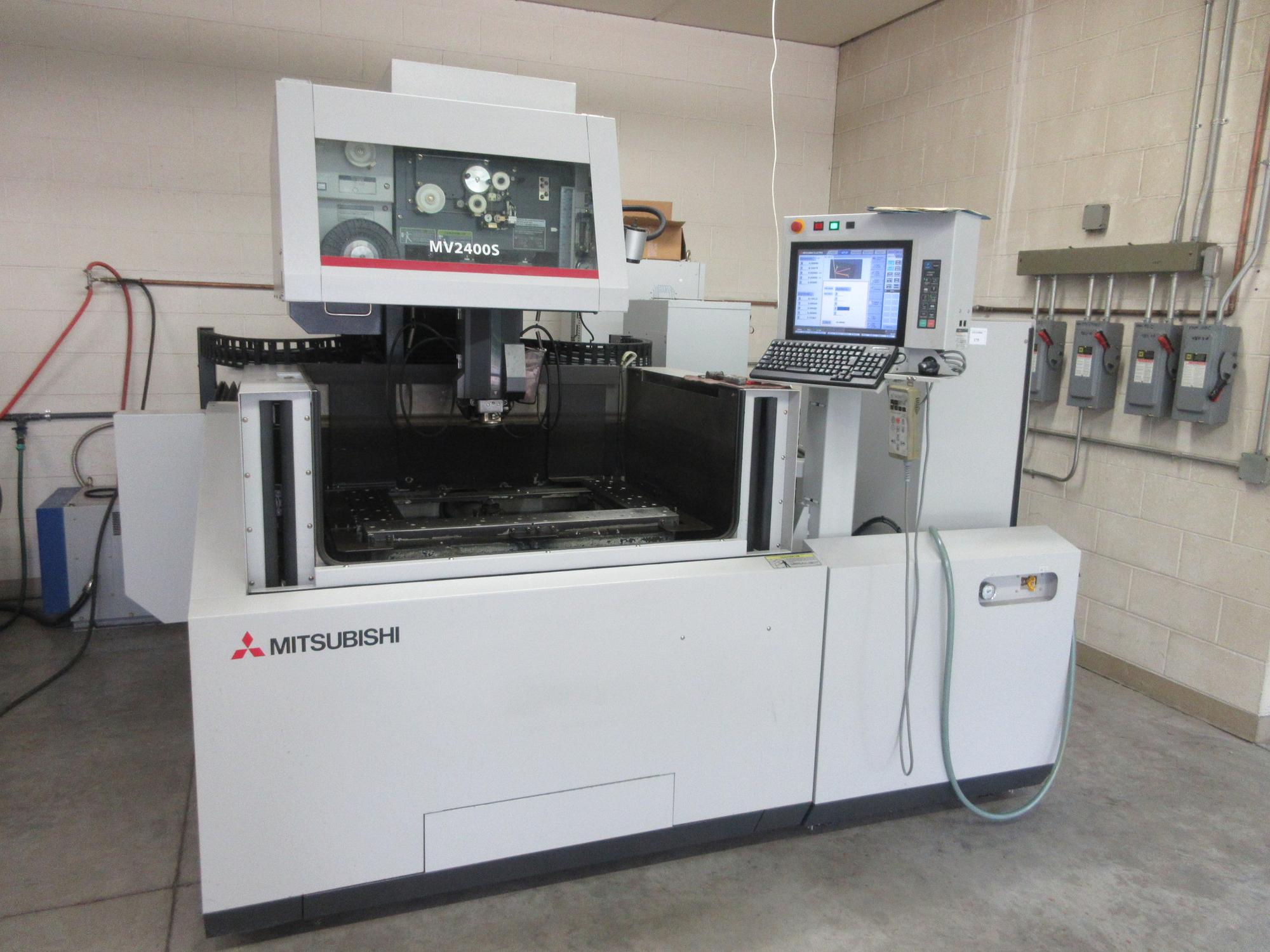

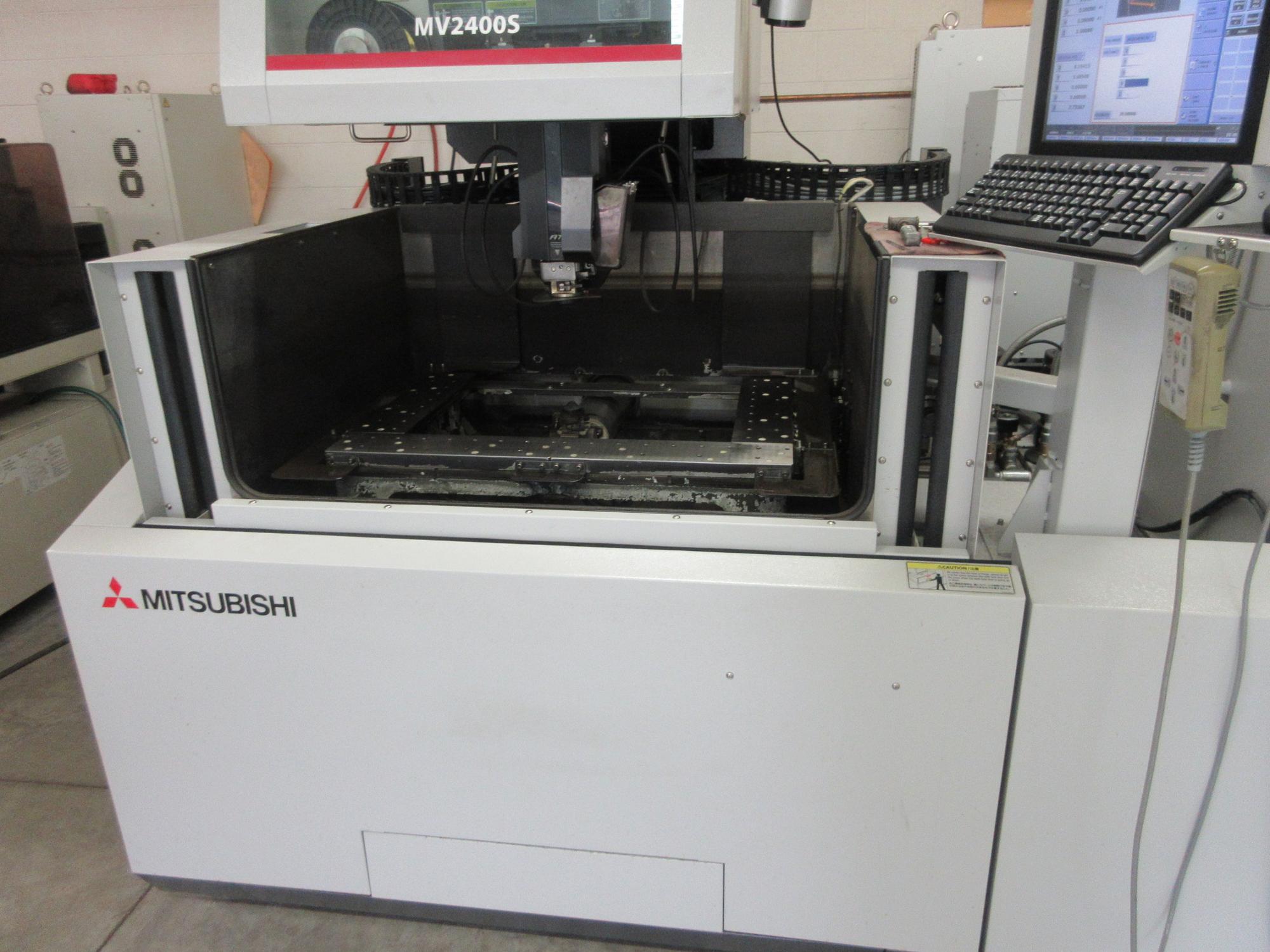

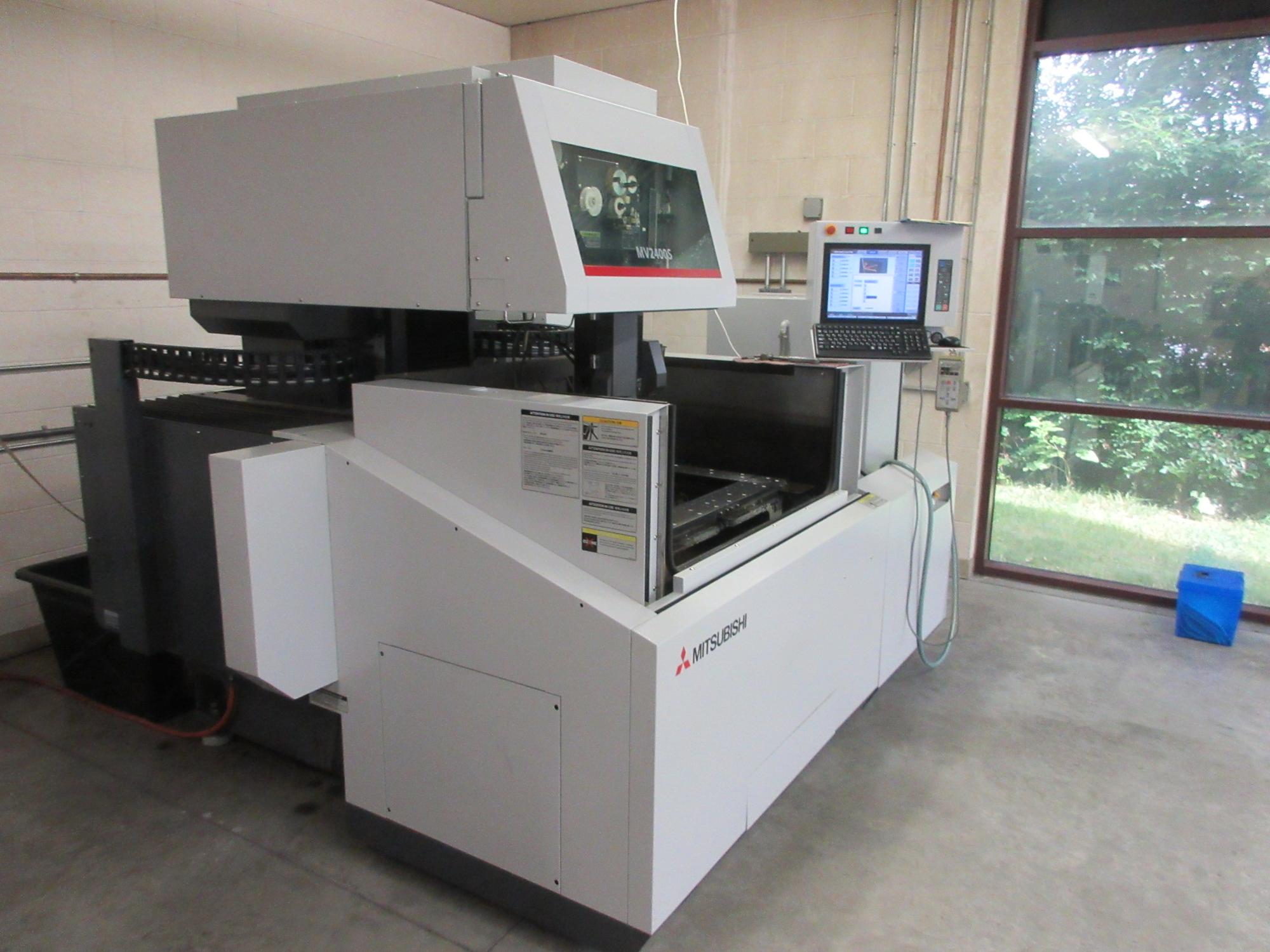

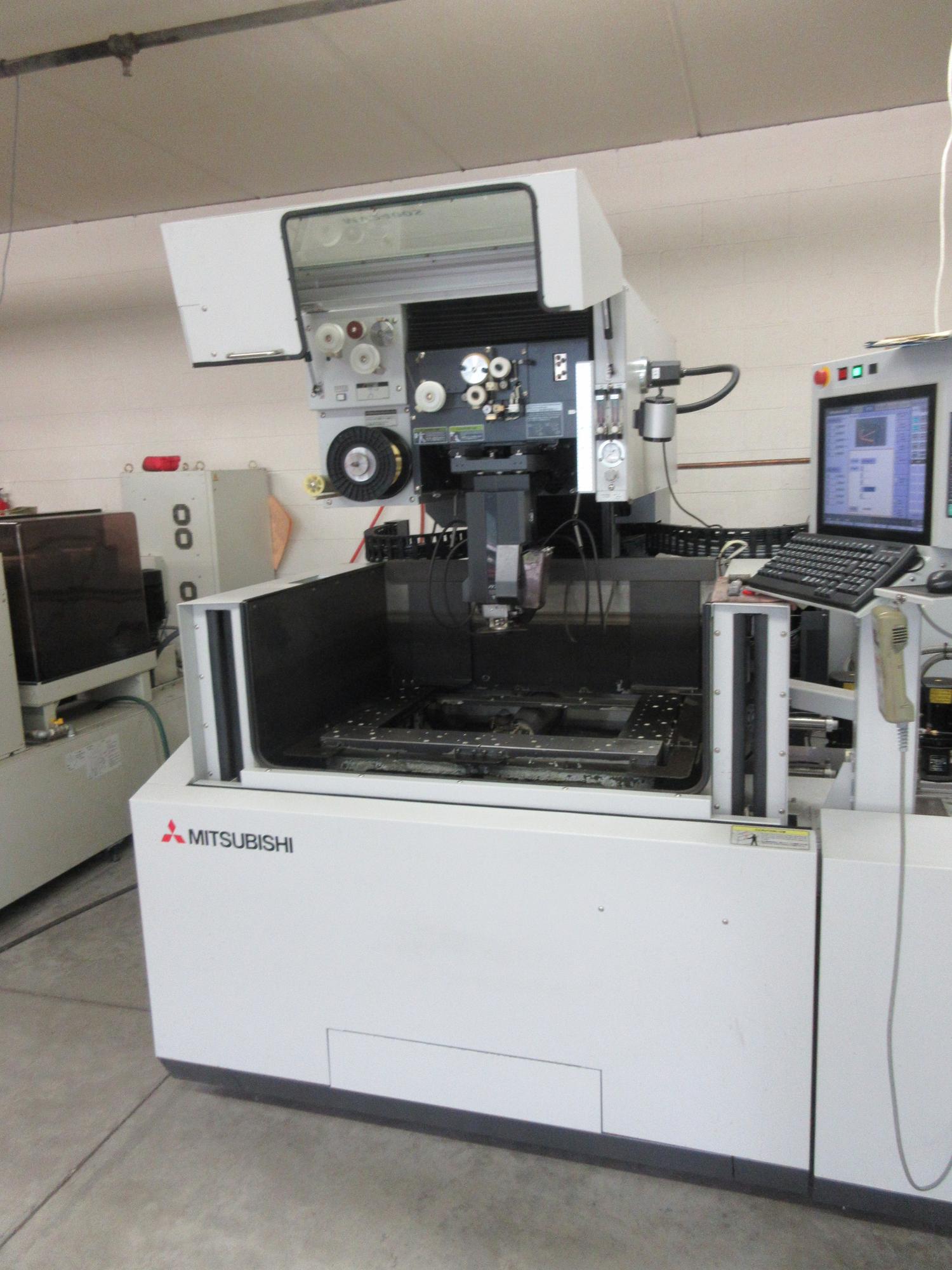

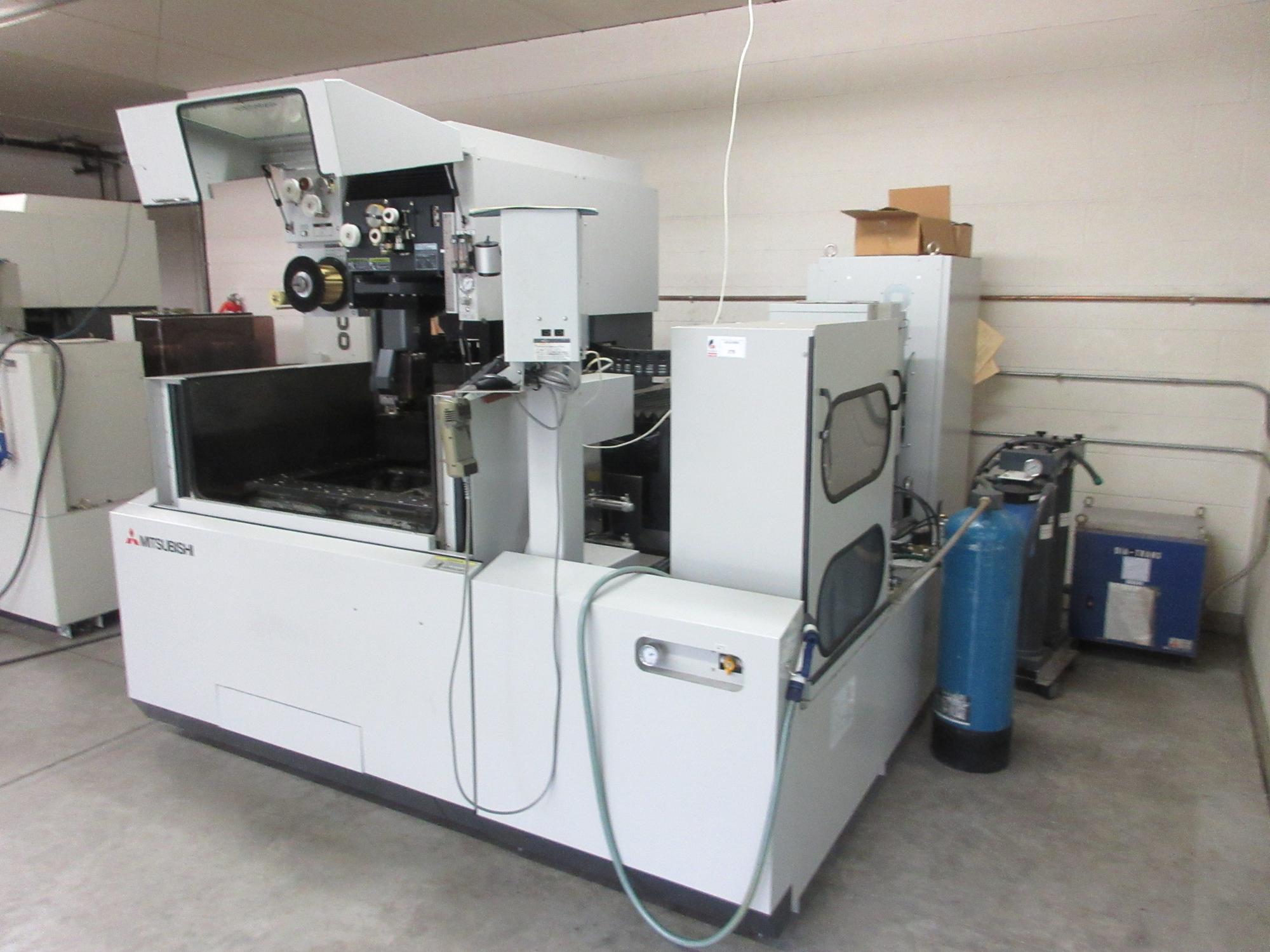

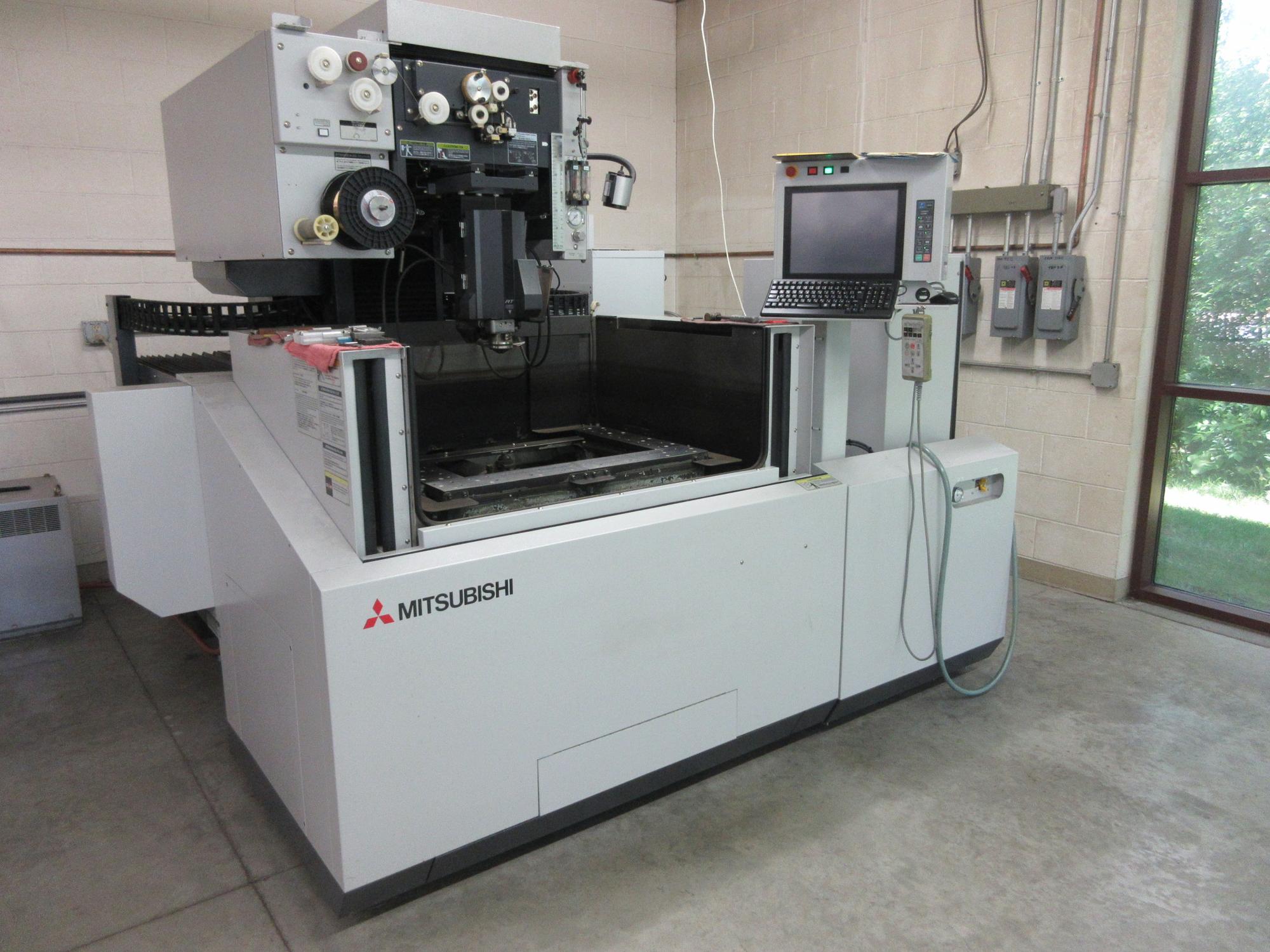

GENERAL INFORMATION

• Manufacturer: Mitsubishi

• Model: MV2400S

• Year: 2013

• Machine Type: CNC Wire EDM

• Condition: Used

CONTROL SYSTEM

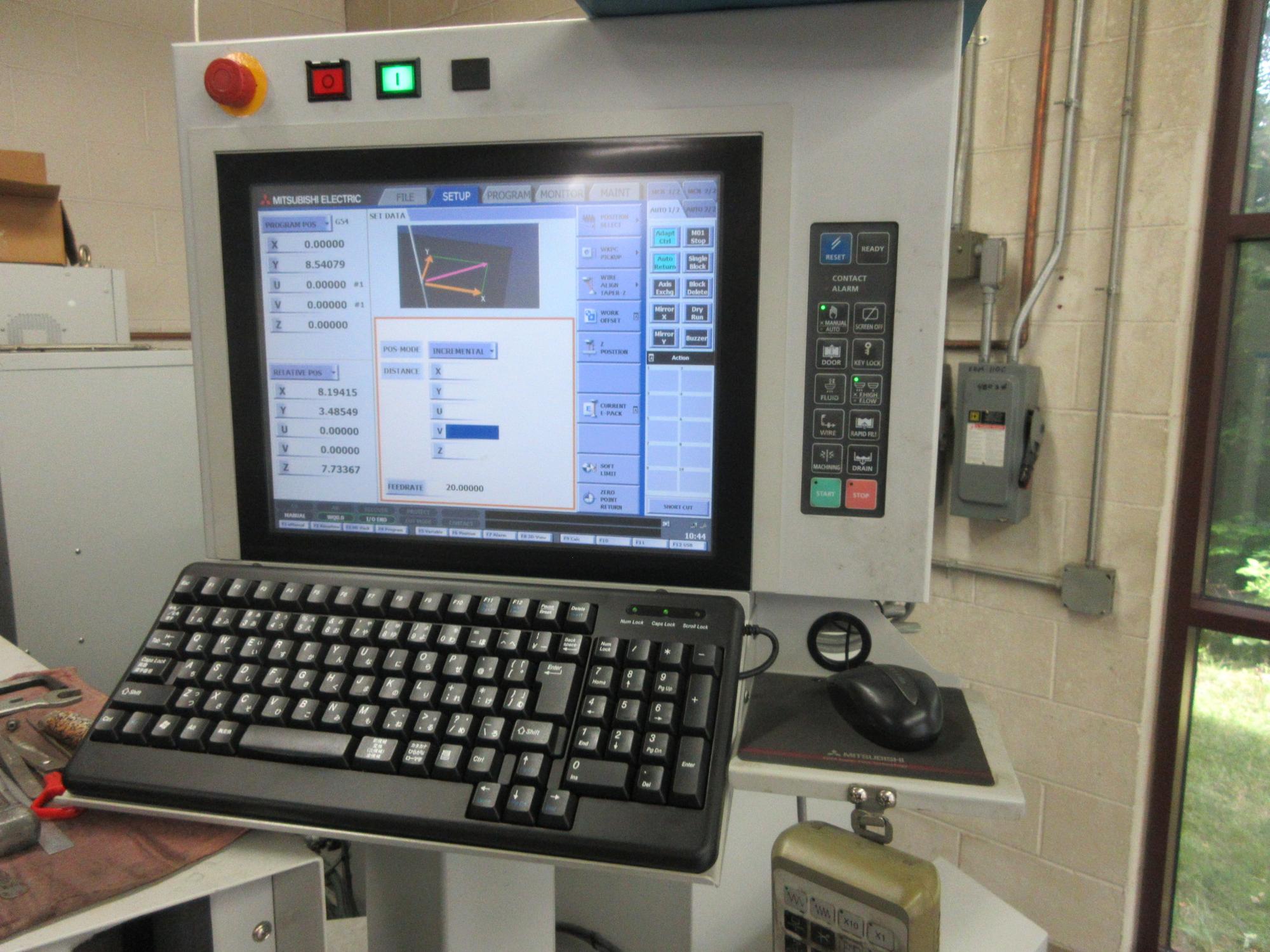

• Mitsubishi W31MV-2 CNC Control

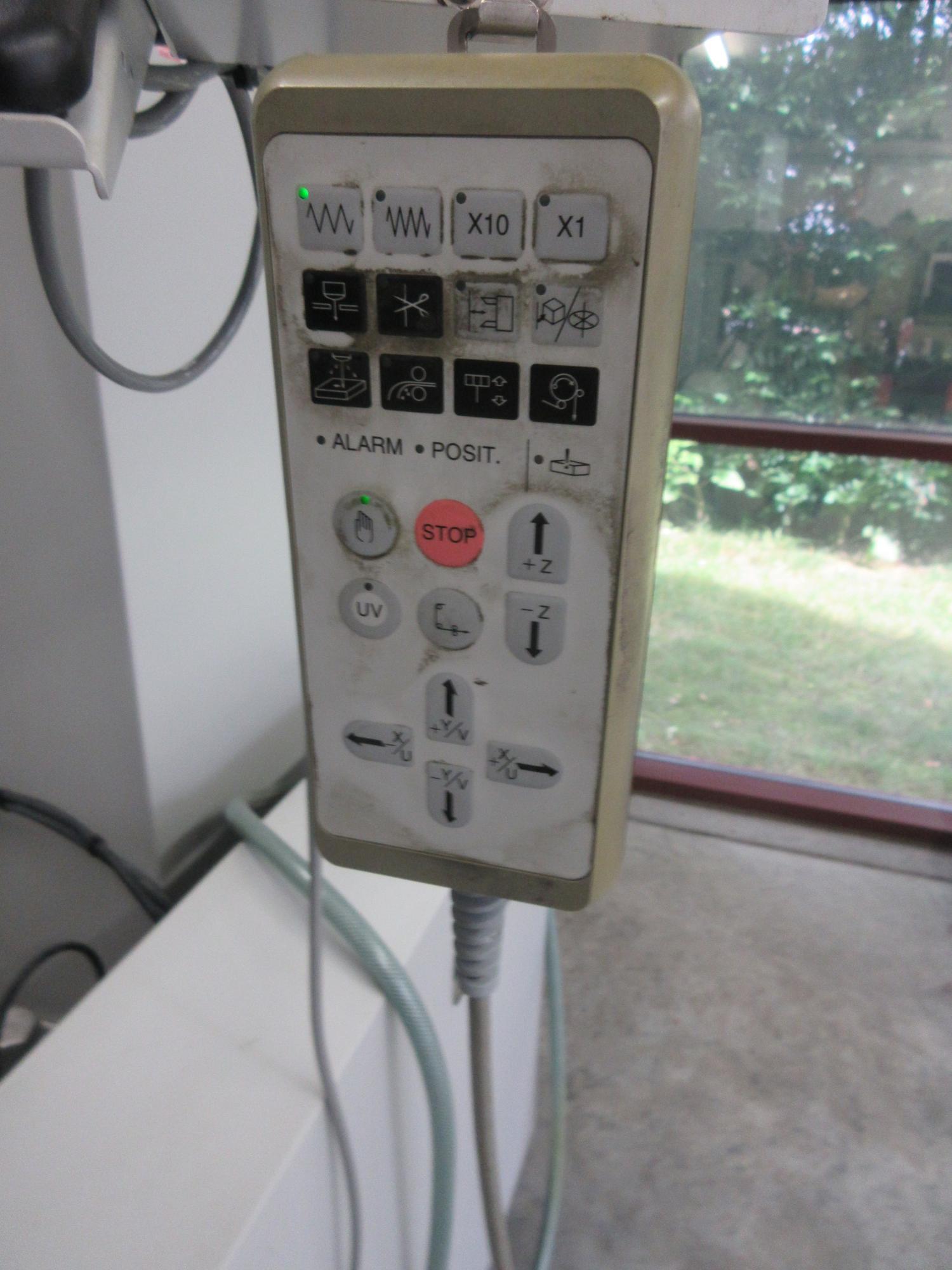

• Remote Control Pendant

WORK CAPACITY

• Maximum Workpiece Size: 41.3″ x 32.3″ x 12″

• Maximum Workpiece Weight: 3,307 lbs

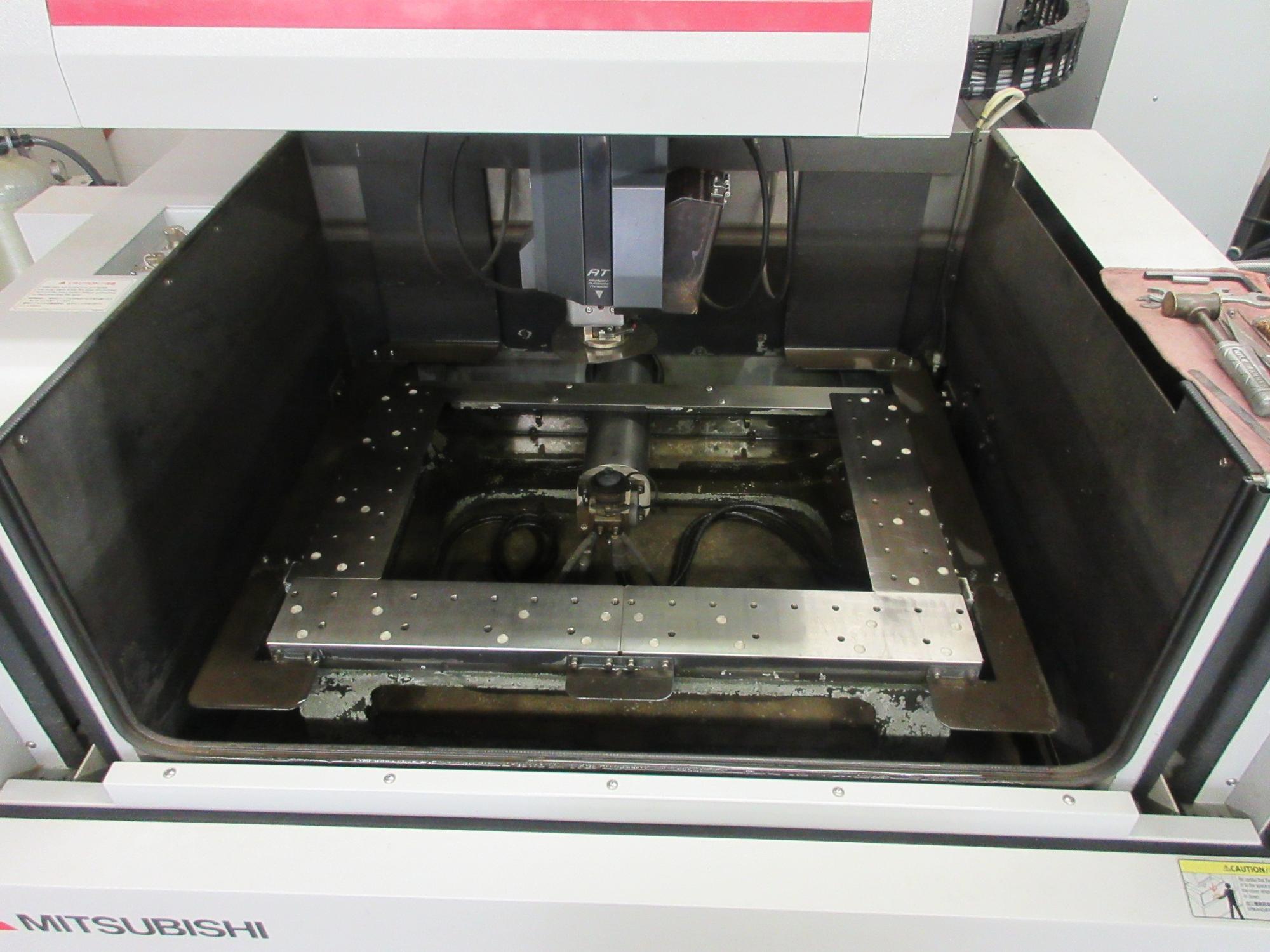

• Table Size: 33″ x 25.2″

TRAVELS

• X-Axis Travel: 23.6″

• Y-Axis Travel: 15.7″

• Z-Axis Travel: 12.2″

• U/V Axis Travel: ±3″ x ±3″

WIRE SPECIFICATIONS

• Wire Diameter: 0.004″ – 0.012″

• Minimum Start Hole: 0.02″

• Taper Capability: Up to 15° (10.2″ thickness) / up to 45° (with optional guides)

PERFORMANCE

• Table Rapid Traverse: 51.2 IPM

• Minimum Drive Resolution: 0.000002″

EQUIPPED WITH

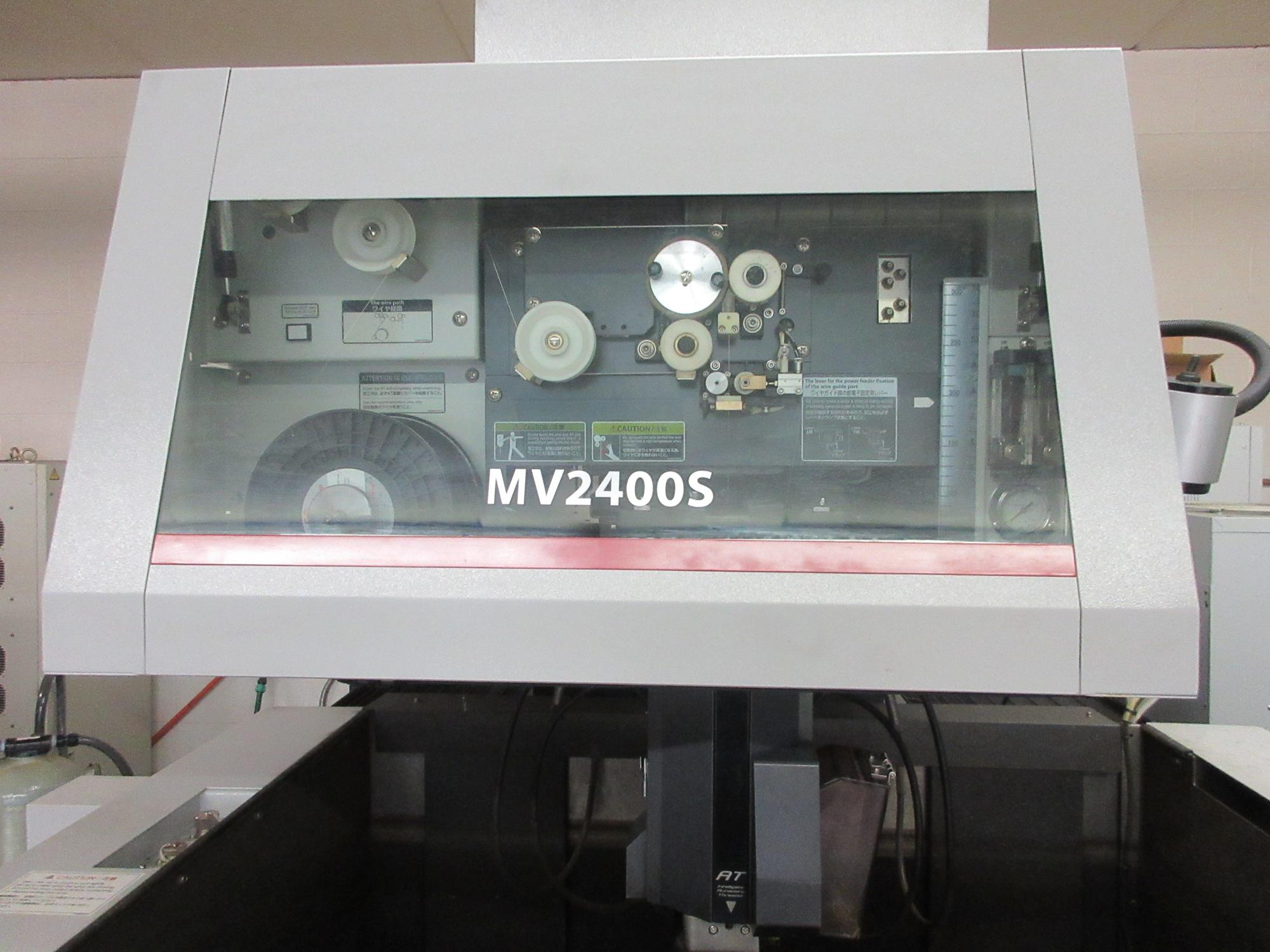

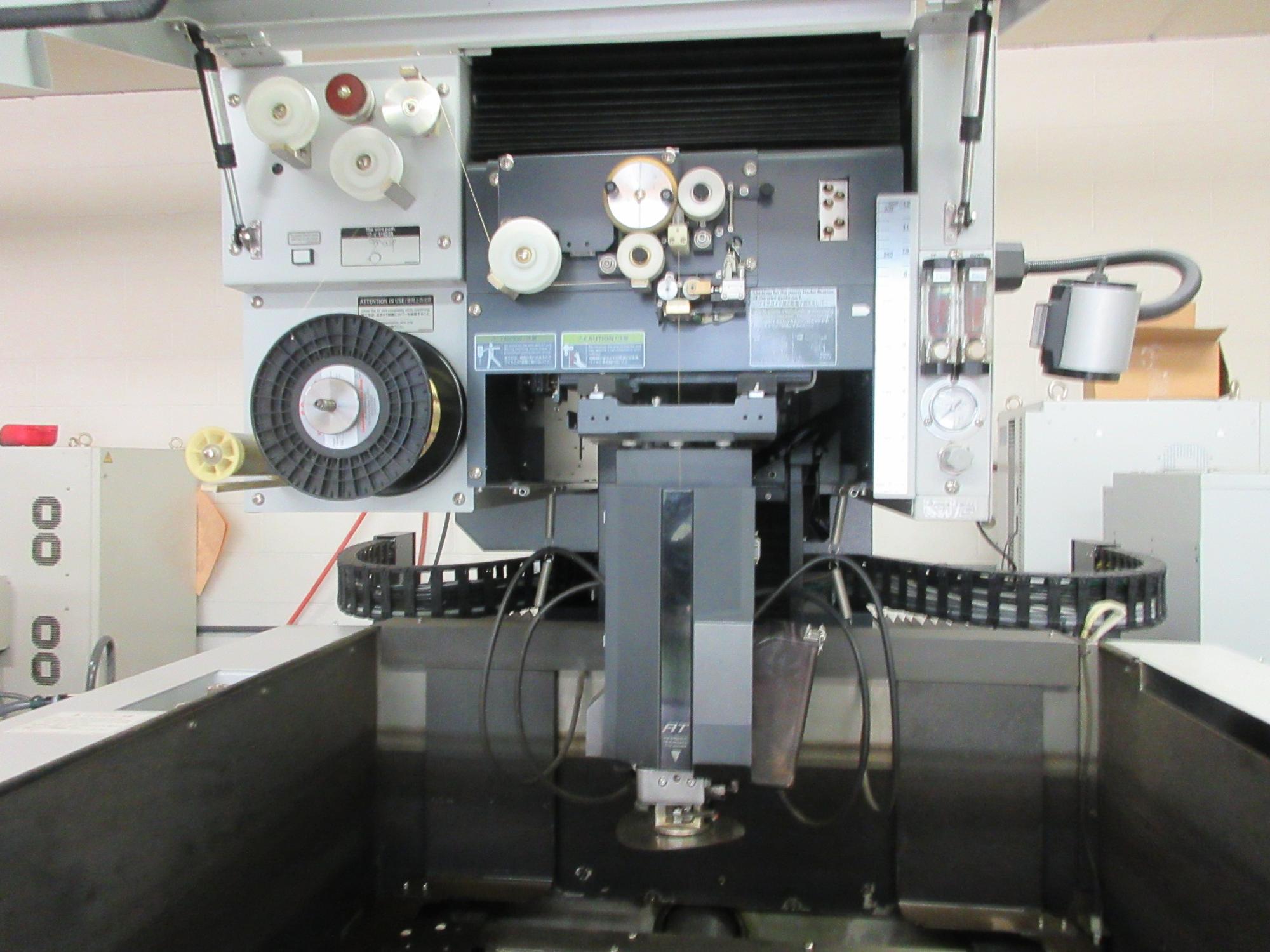

• Auto wire threading system

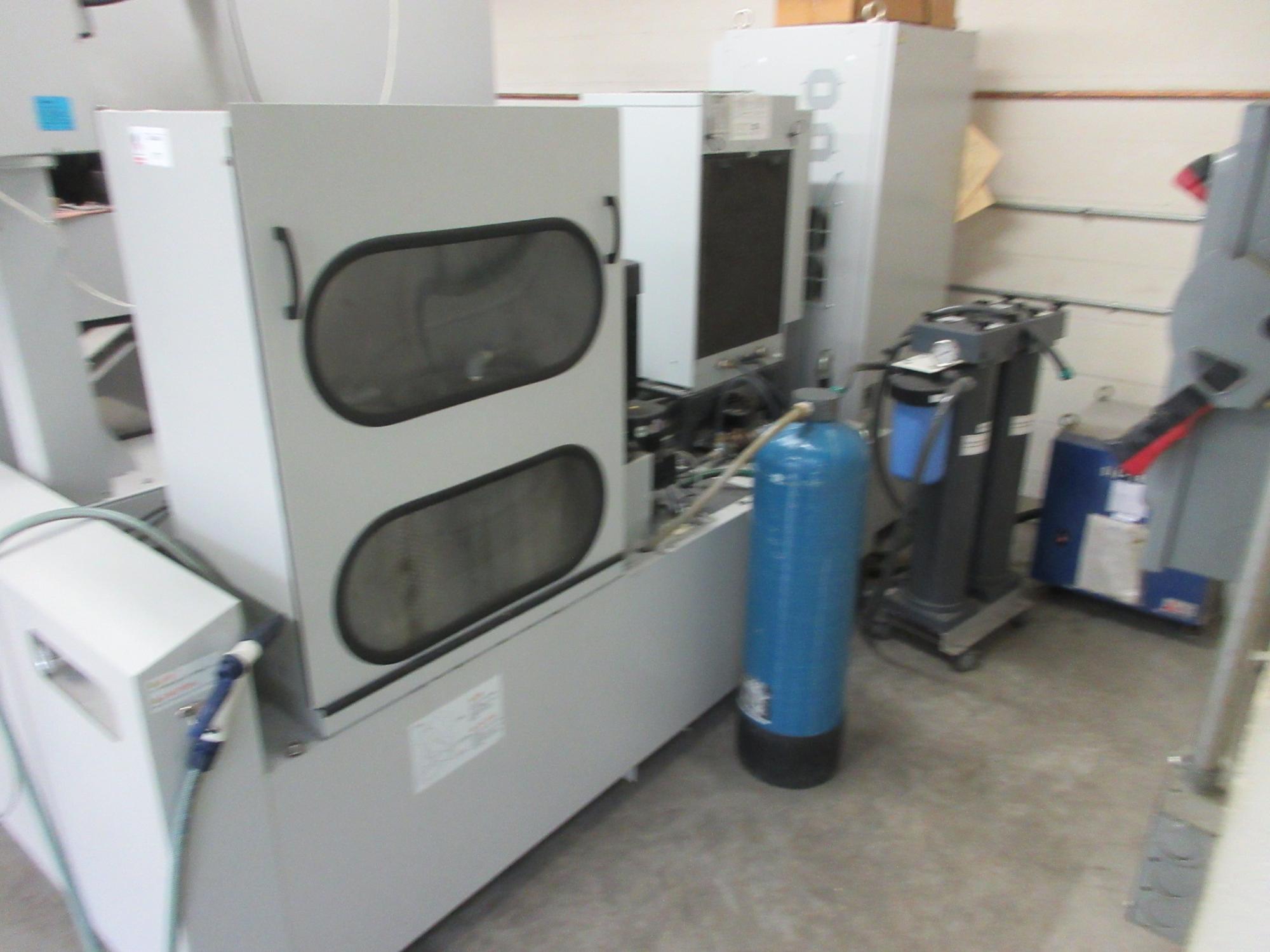

• Dielectric fluid system

• Chiller unit

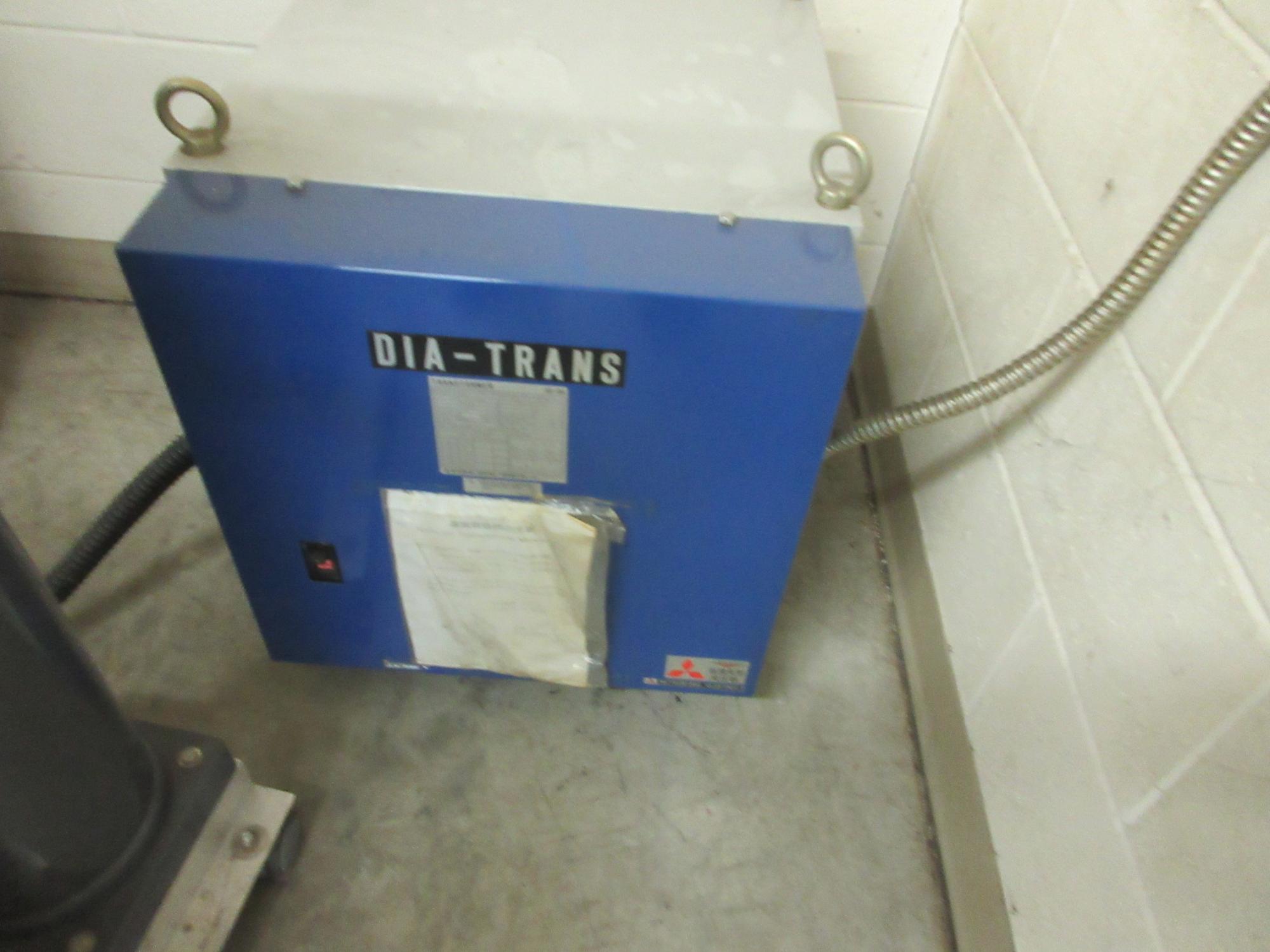

• Transformer

• Wire disposal crimper and bin

• Full dielectric filtration system

ELECTRICAL

• 220 Volt / 3 Phase

MACHINE DIMENSIONS & WEIGHT

• Main Unit Weight: 7,716 lbs

• Main Unit Size: 79″ L x 104″ W x 85″ H

• Dielectric Tank: 35″ L x 92″ W x 60″ H

• Control Cabinet: 28″ L x 26″ W x 72″ H

• Transformer: 24″ L x 21″ W x 25″ H

FEATURES

✓ High-precision CNC wire EDM with Mitsubishi control system

✓ Automatic wire threading for efficient unattended operation

✓ Extremely fine resolution (0.000002″) for precision work

✓ Large work envelope for medium to large precision components

✓ Advanced dielectric system with chiller for stable cutting performance

✓ Ideal for complex geometries and hard material machining

APPLICATIONS

• Precision die and mold making

• Aerospace components

• Medical device manufacturing

• Tool and punch fabrication

• Hardened steel machining

• High-precision prototyping
