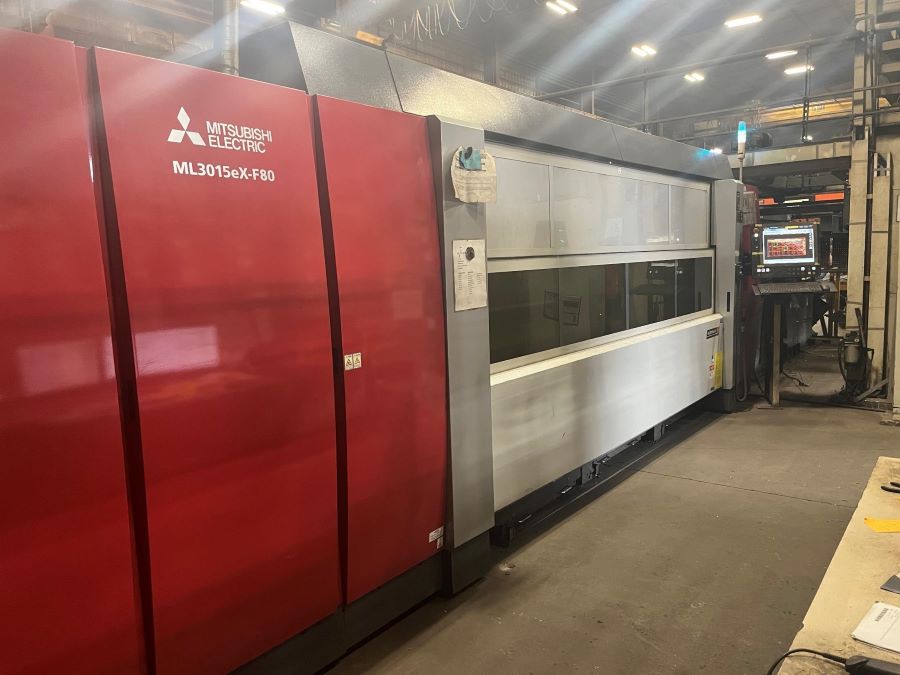

GENERAL INFORMATION

• Manufacturer: Mitsubishi Electric
• Model: ML-3015eX-F80
• Year: 2019
• Machine Type: CNC Fiber Laser Cutting System
• Laser Power: 8,000 Watts
• Laser Source: IPG Fiber Resonator
• Condition: Used

SPECIFICATIONS

• Maximum Sheet Size: 120.1″ x 60″
• X-Axis Travel: 122″
• Y-Axis Travel: 61″
• Z-Axis Travel: 5.9″
• Table Pass Height: 34.6″
• Maximum Workpiece Weight: 2,050 lbs.
• Rapid Traverse Speed: 3,940 IPM (Single Axis)
• Simultaneous Rapid Speed: 5,550 IPM
• Maximum Cutting Feed Rate: 3,937 IPM
• Positioning Accuracy: 0.0019″/20″
• Drive System: Precision Rack & Pinion (X/Y), Precision Ball Screw (Z)
• Drive Motors: Intelligent AC Servo
• Machine Dimensions: 408.3″ L x 115.2″ W x 88.6″ H
• Approximate Machine Weight: 20,503 lbs.

EQUIPPED WITH

• 8,000-Watt IPG Fiber Resonator

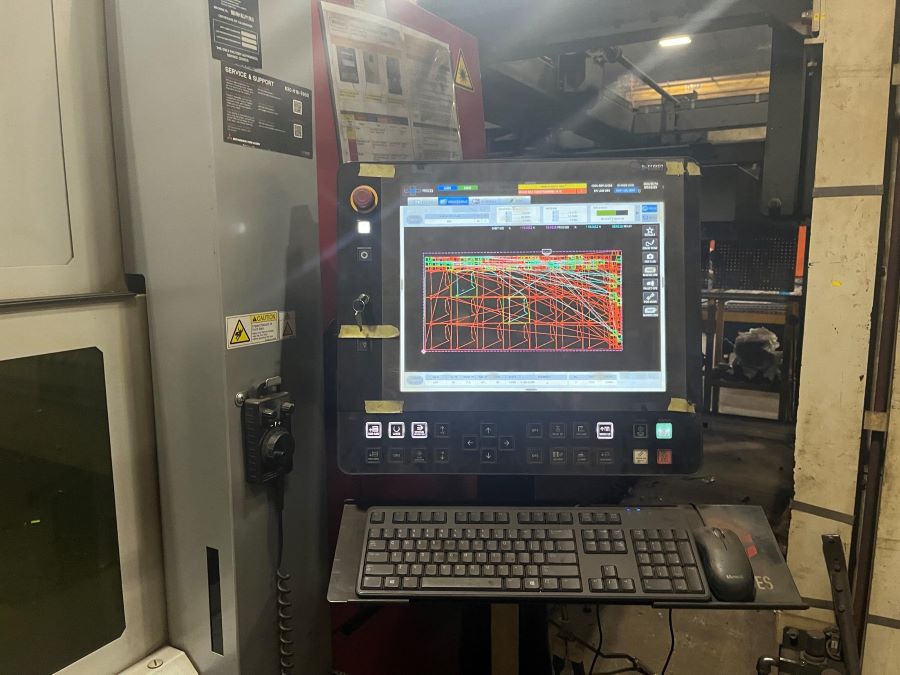

• Mitsubishi ADVANCE 800 (M800) CNC Control
• 19″ Touchscreen Control
• Keyboard & Mouse

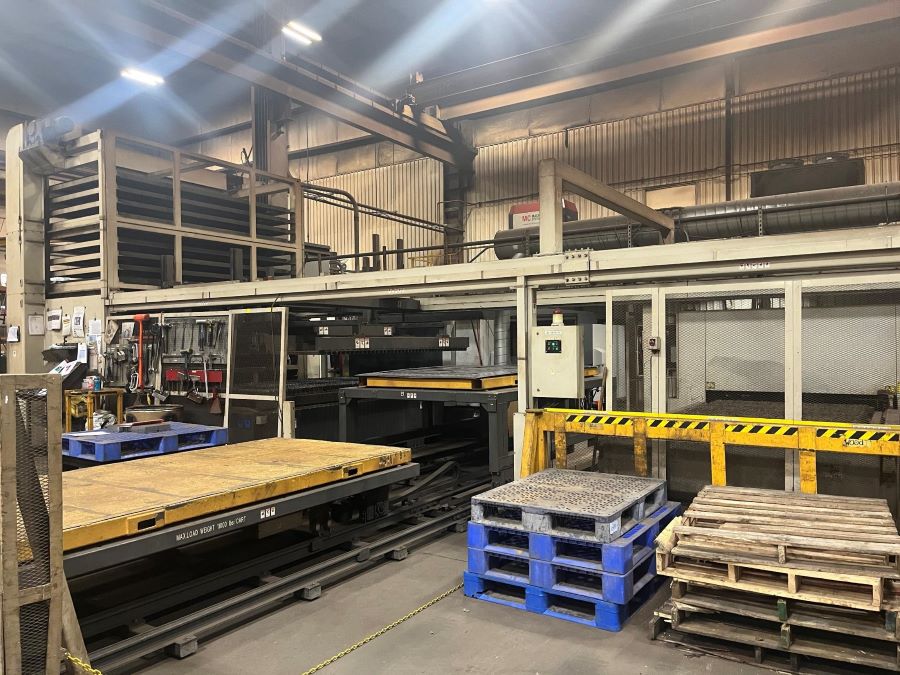

• Automatic Pallet Changer

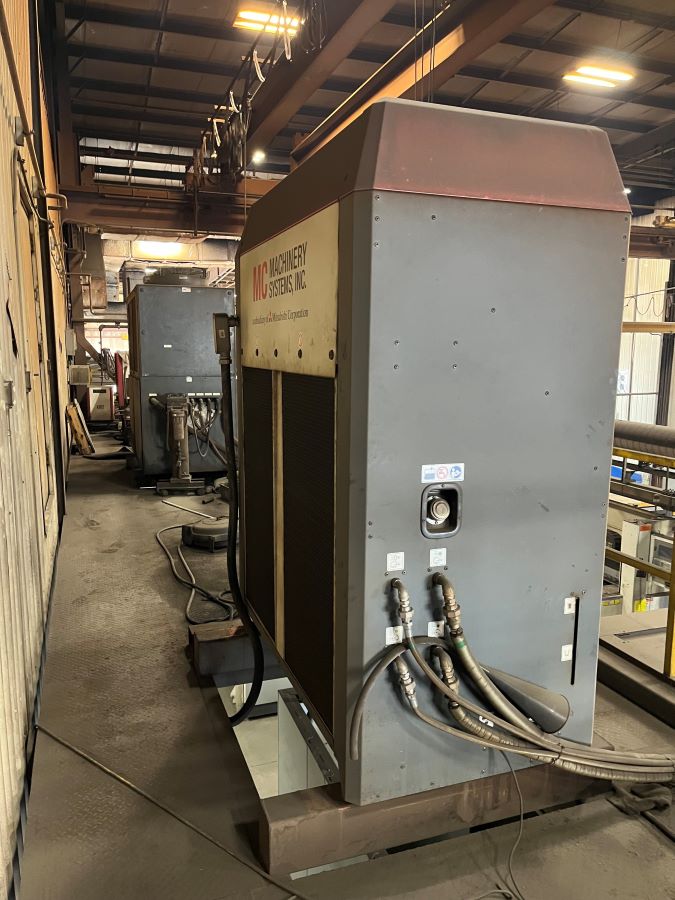

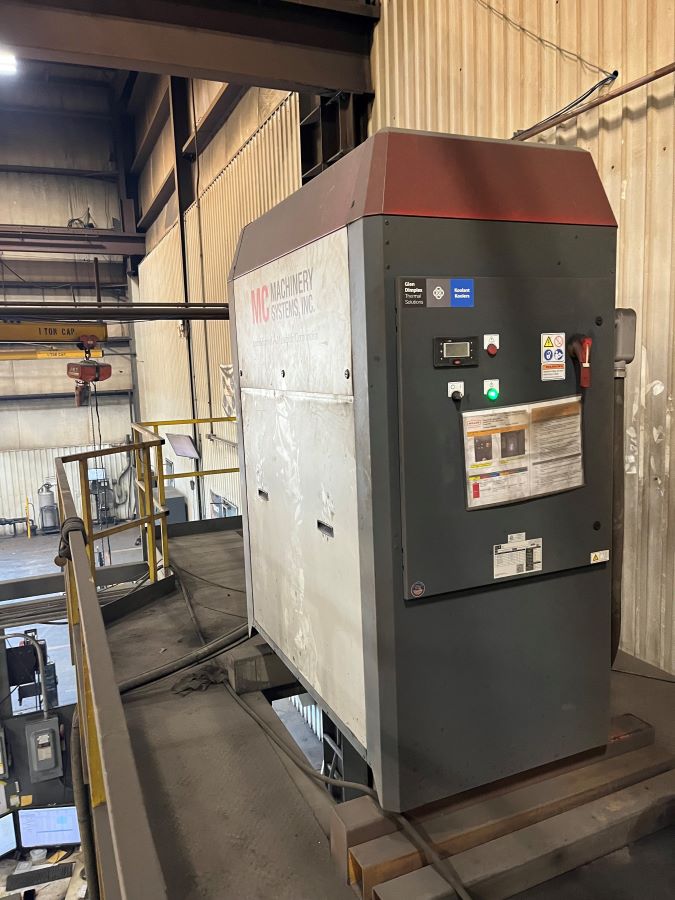

• Industrial Chiller

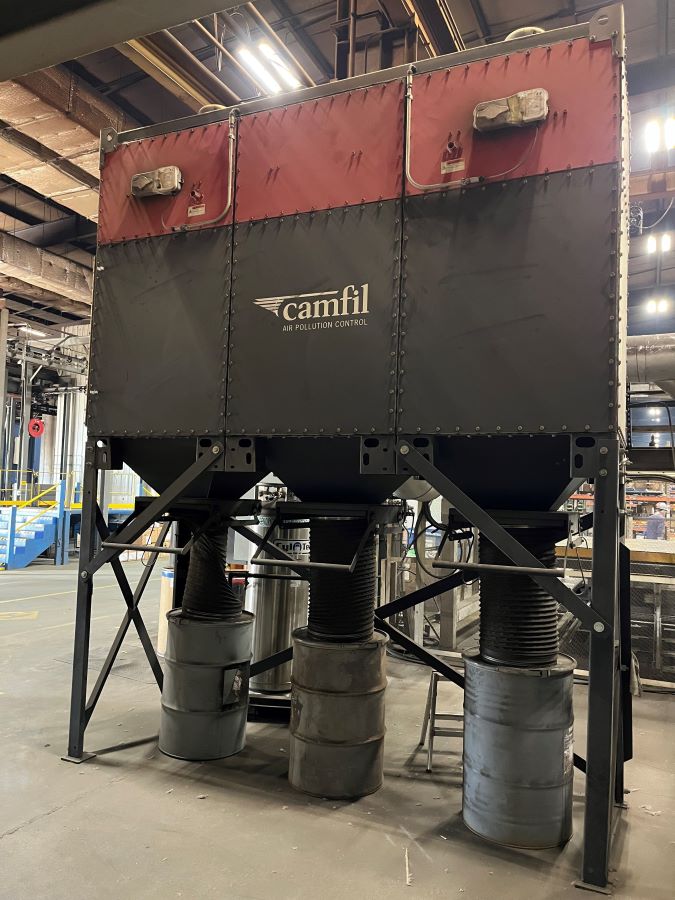

• Dust Collector

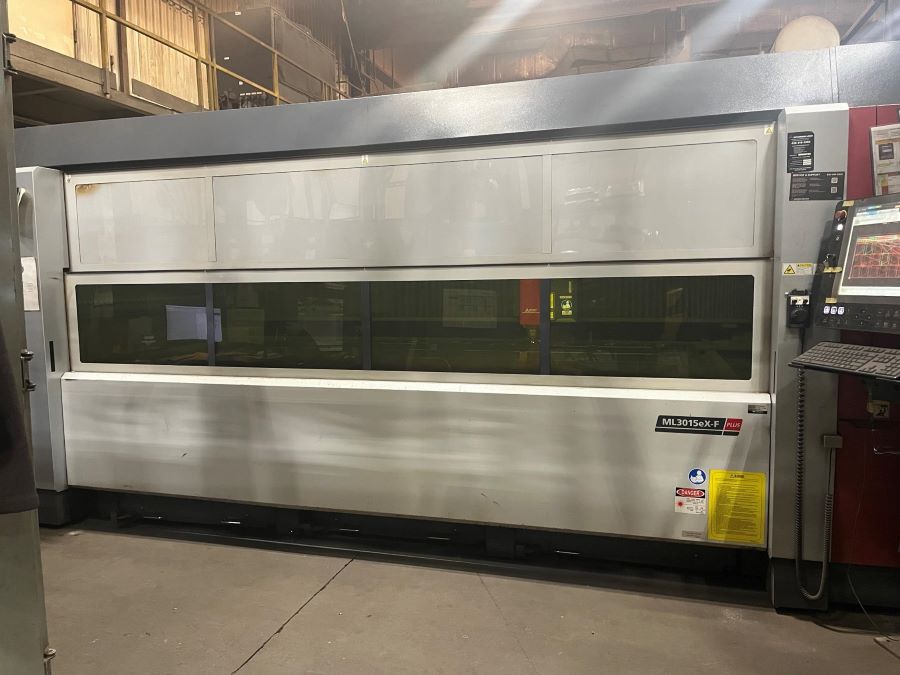

• Powered Safety Access Door

FEATURES

✓ High-performance 8kW IPG fiber laser source
✓ Mitsubishi ADVANCE 800 control with intuitive 19″ touchscreen
✓ High-speed rack & pinion motion system
✓ Automatic pallet changer for increased productivity
✓ Processing speeds up to 100 meters/minute
✓ Advanced Dross Reduction Control for superior edge quality
✓ Automatic pierce detection for faster setup
✓ Height sensing system for improved cutting performance
✓ Multi-language operator interface
✓ Remote diagnostics and production dashboard
✓ Windows-based operating platform
✓ Dual 3.0 MPa high-pressure gas connections
✓ Stores up to 1,000 part programs
✓ Excellent for lights-out production

APPLICATIONS

• Stainless Steel
• Carbon Steel
• Aluminum
• Copper
• Brass
• Aerospace Components
• Precision Sheet Metal Fabrication
• Production Manufacturing
