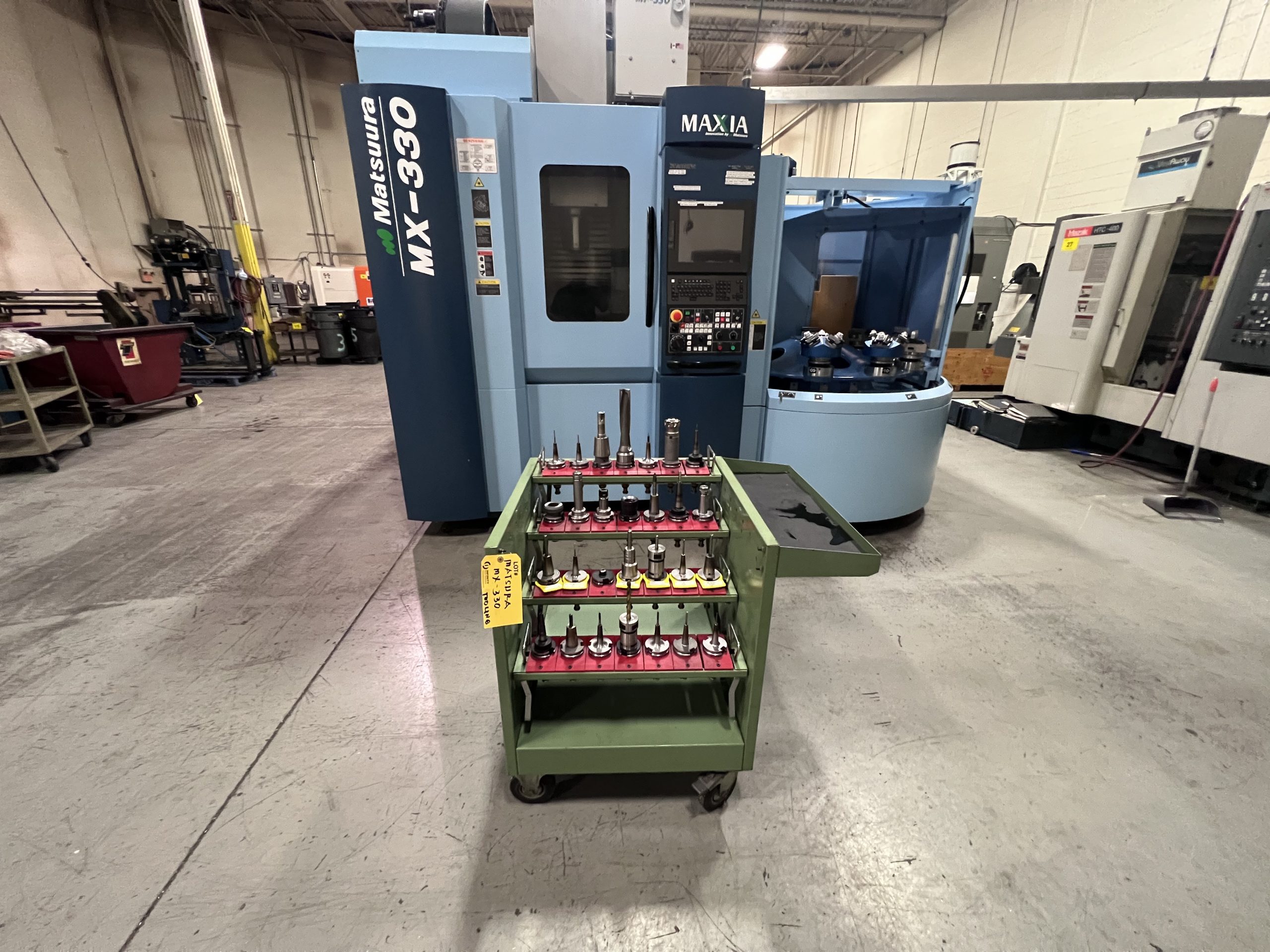

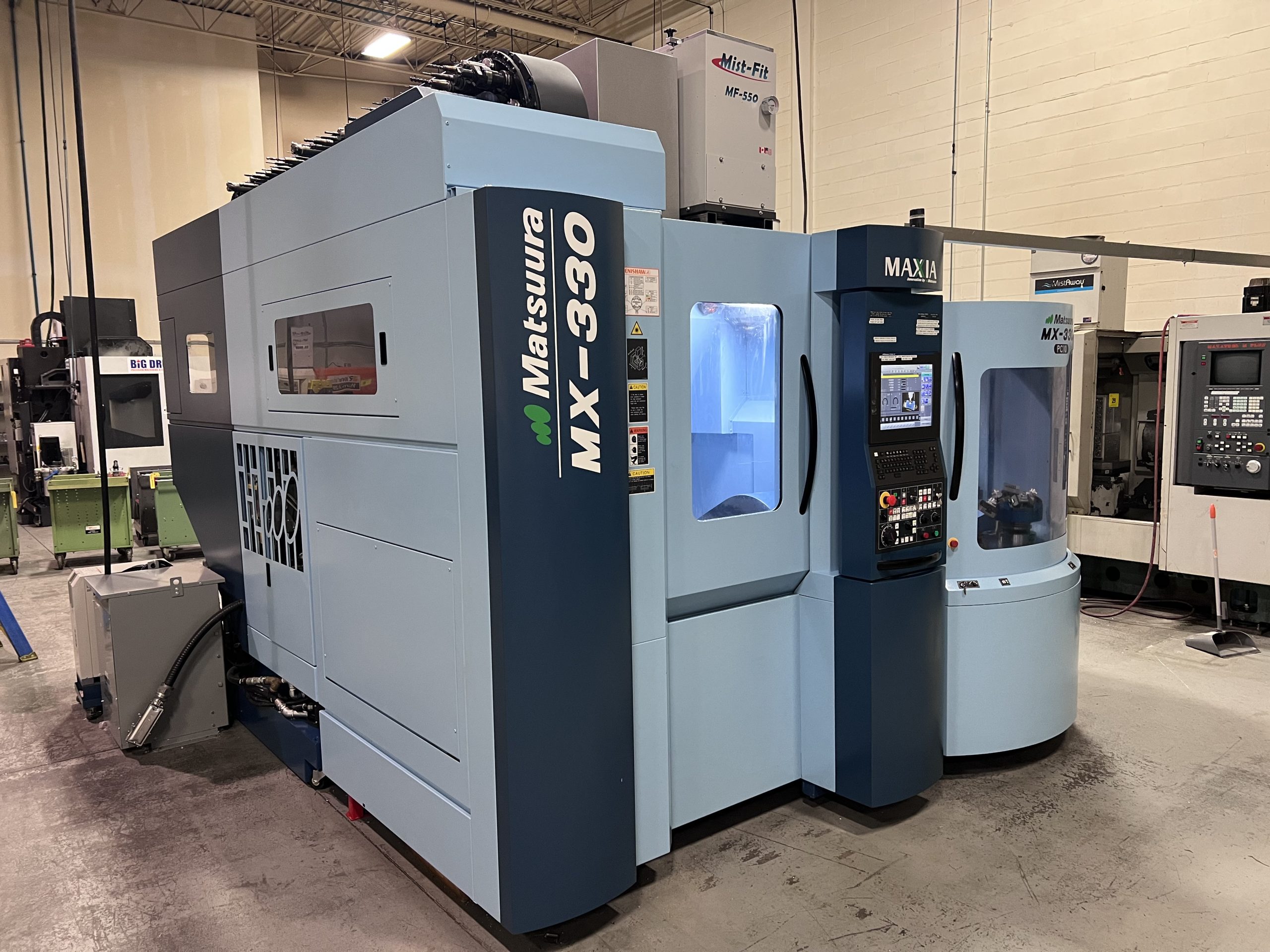

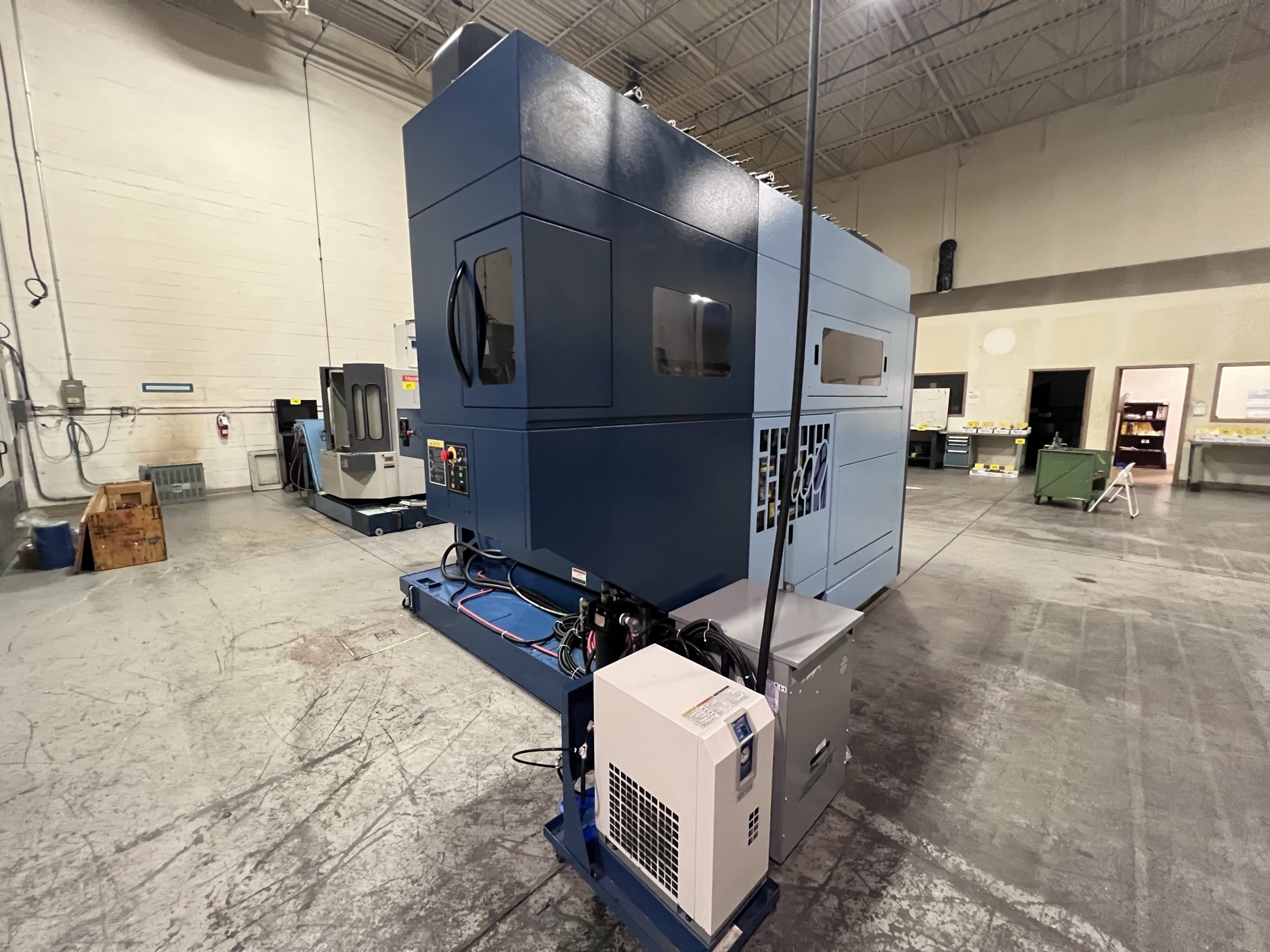

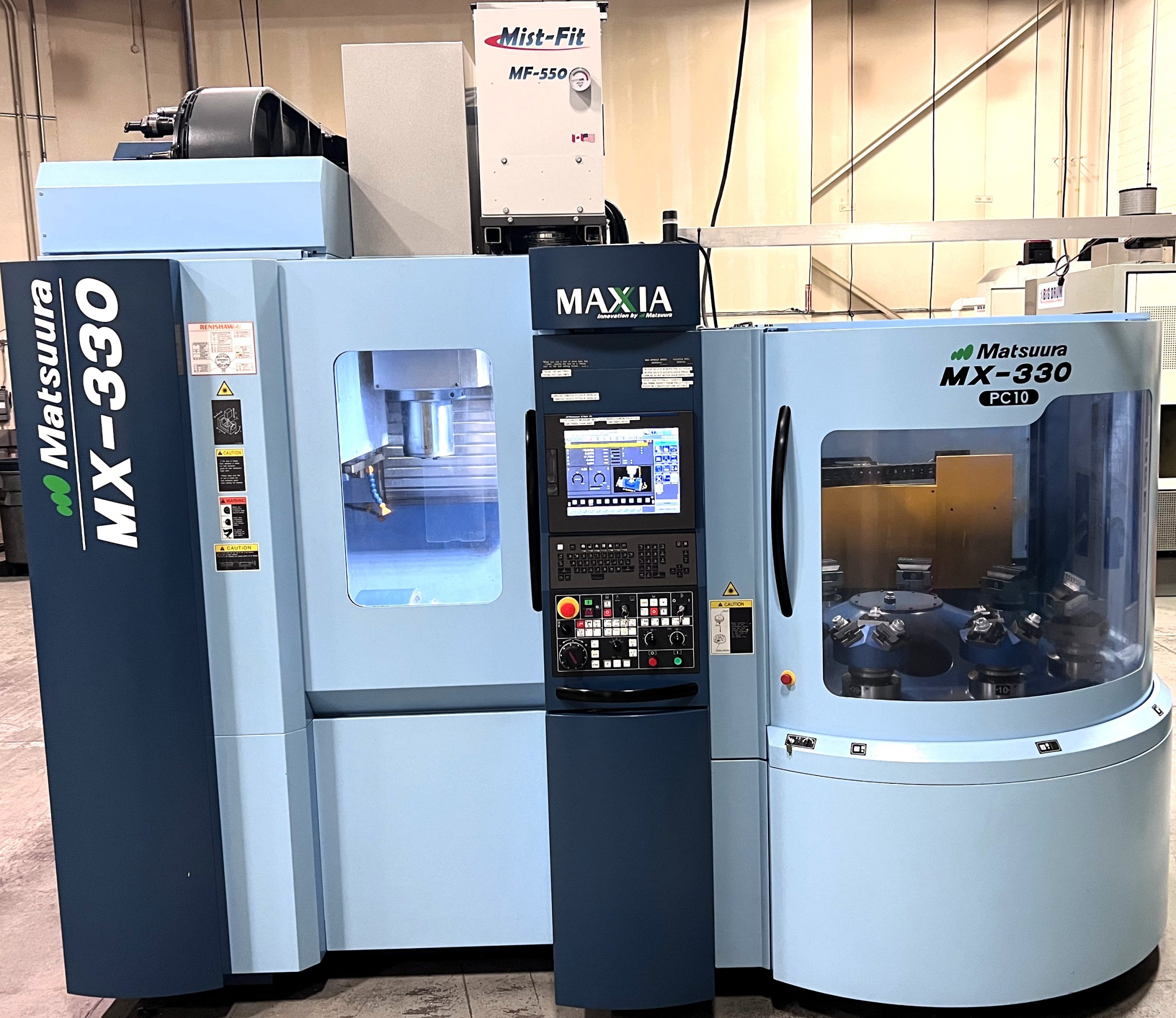

GENERAL INFORMATION

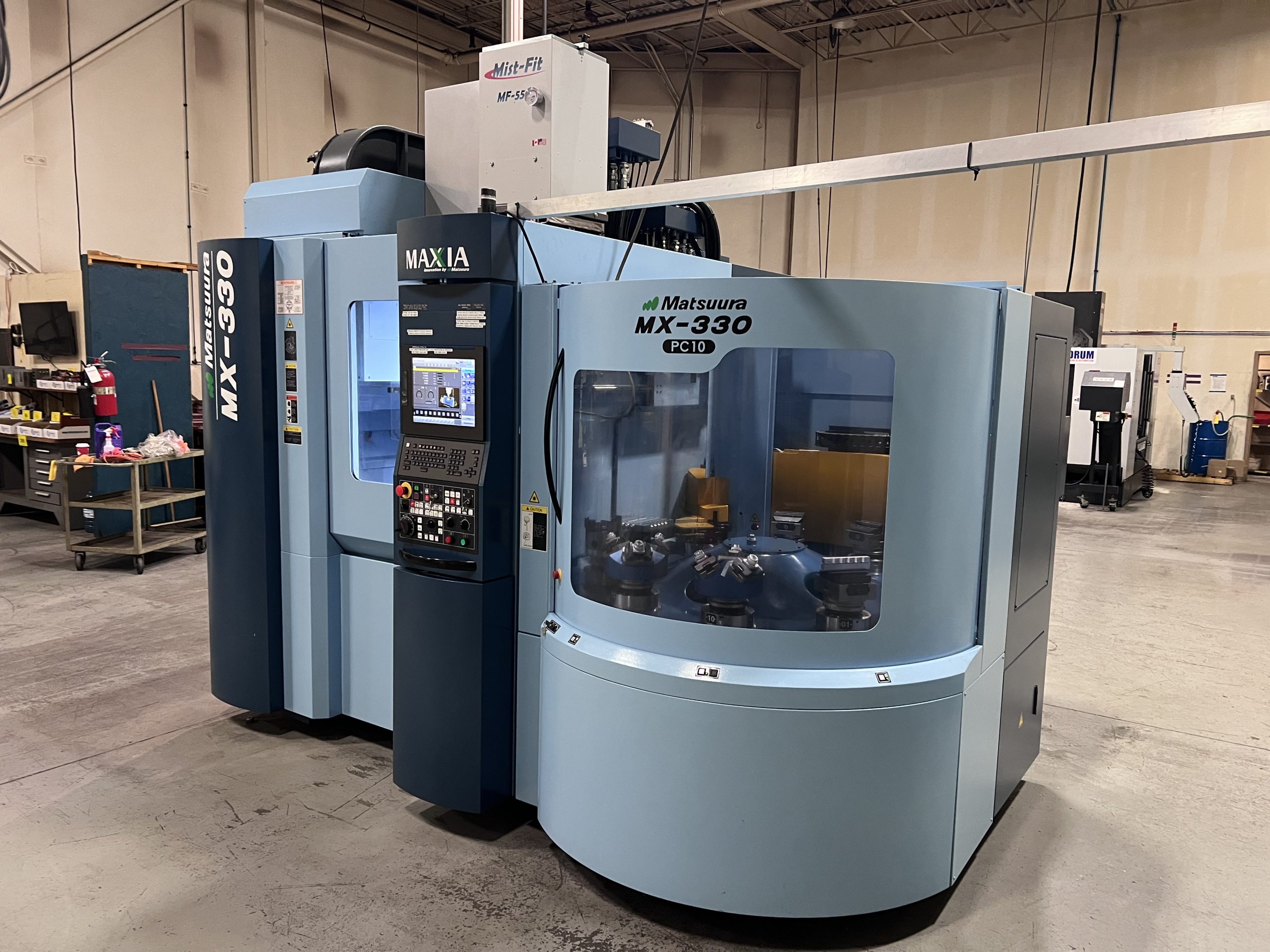

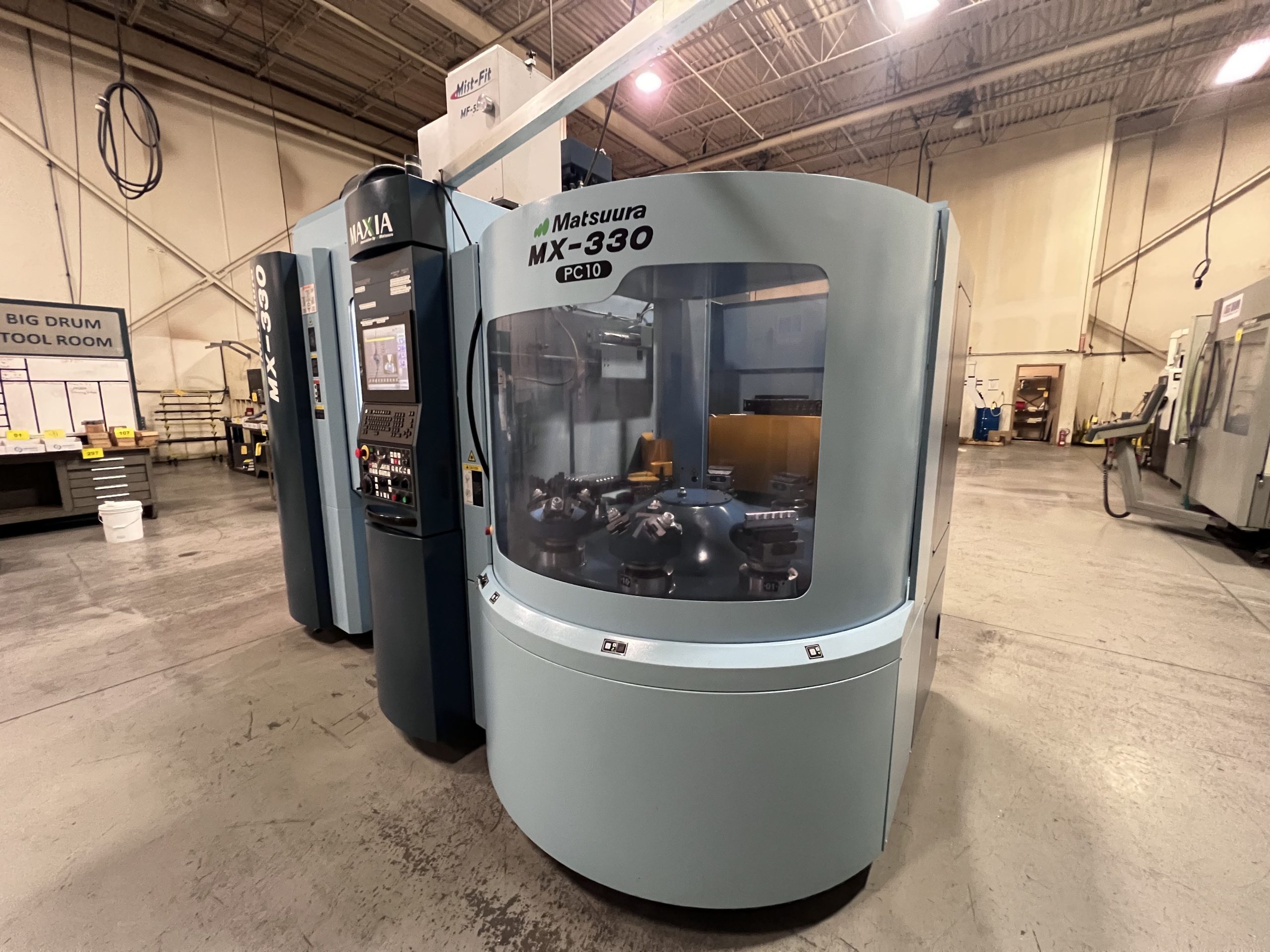

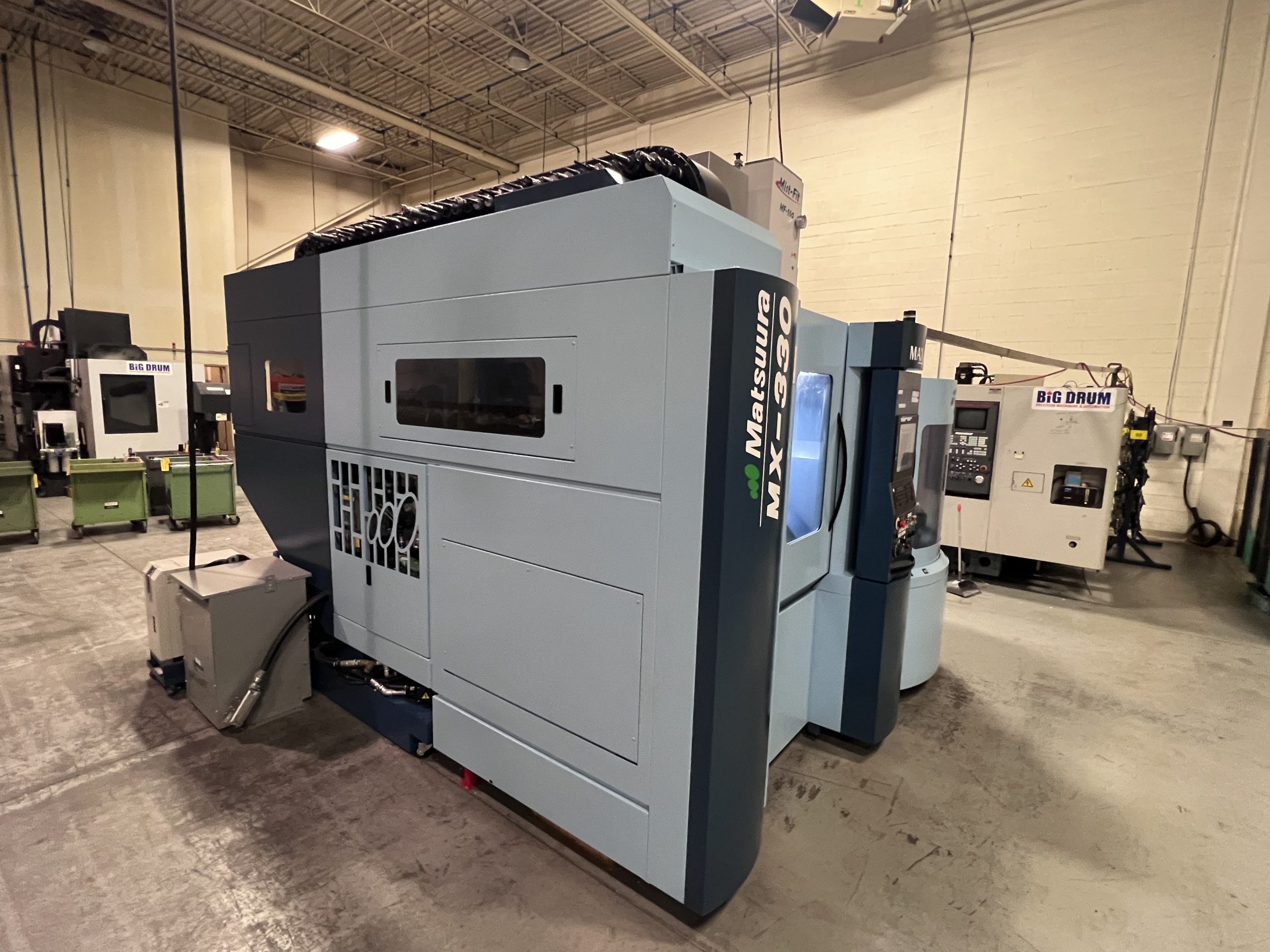

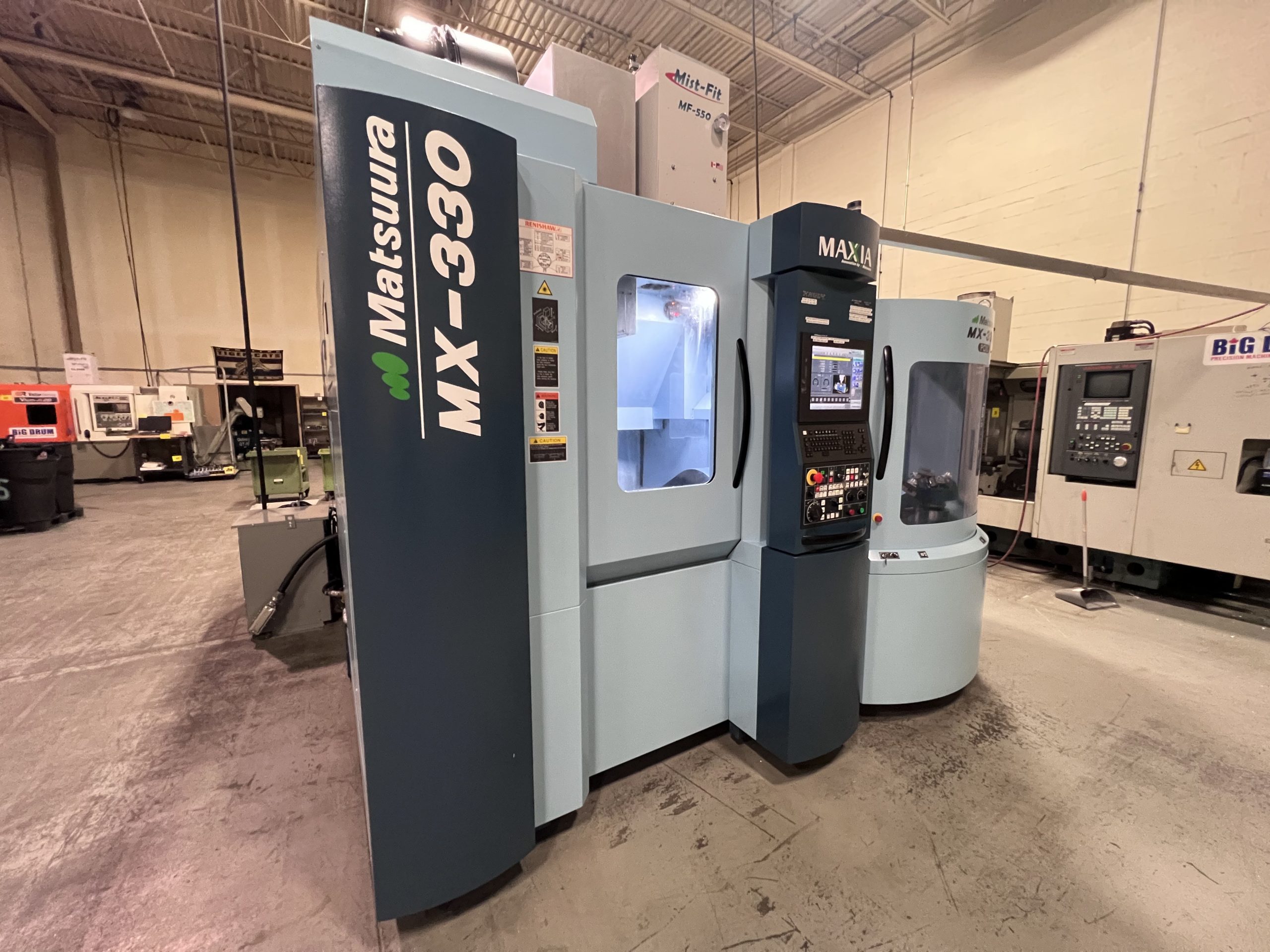

• Manufacturer: Matsuura
• Model: MX-330 PC10
• Year: 2022 (December)
• Machine Type: 5-Axis CNC Vertical Machining Center

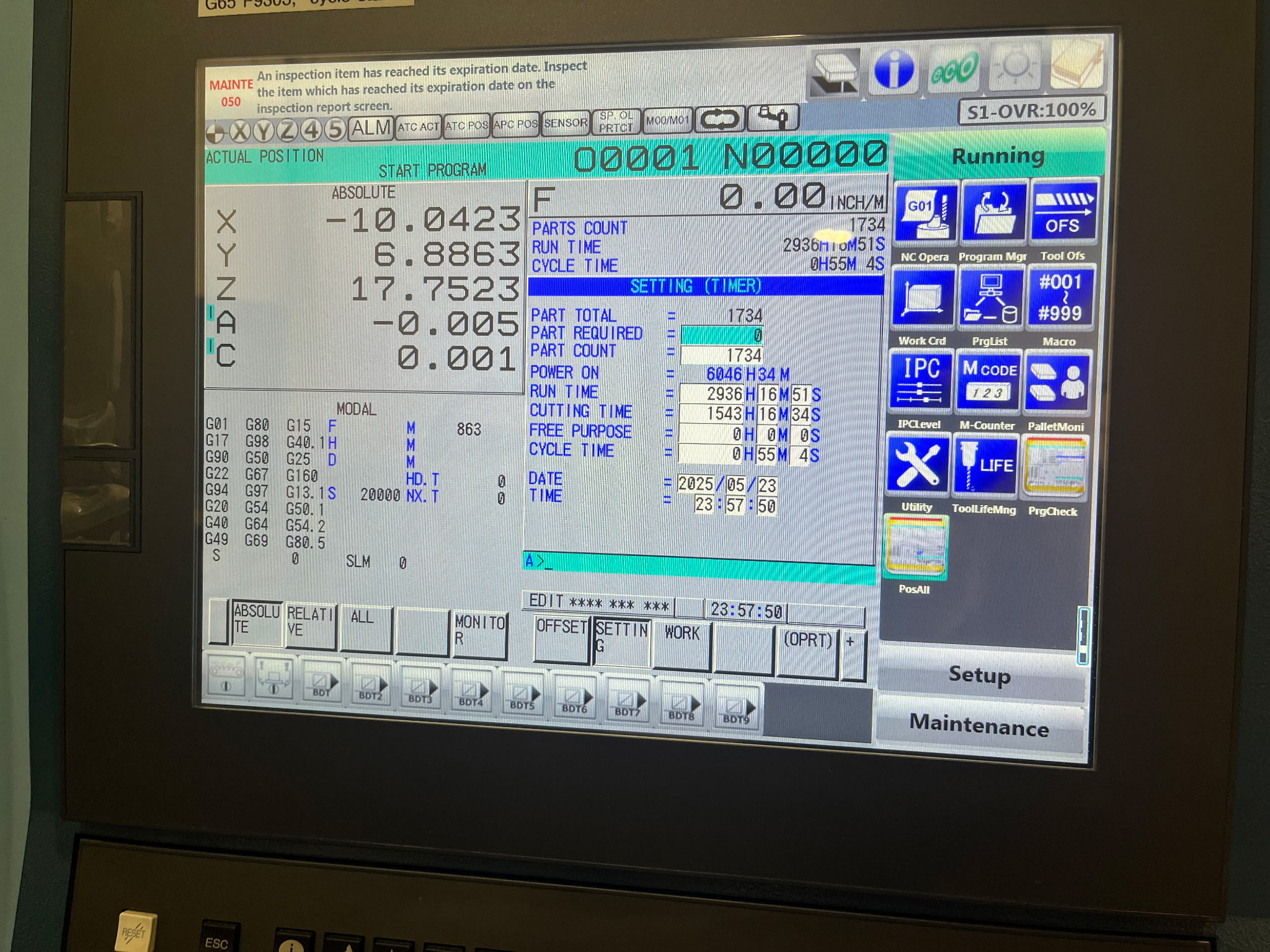

• CNC Control: Matsuura G-Tech 31i (Fanuc Platform)
• Condition: Used
• Approximate Cutting Hours: 1,543
• Approximate Power-On Hours: 6,046

SPECIFICATIONS
• Number of CNC Axes: 5
• Spindle Speed: 20,000 RPM
• Spindle Motor: 20 / 25 HP
• Maximum Spindle Torque: 108.5 Nm
• Spindle Taper: CAT 40 Big Plus
• Spindle Lubrication: Oil-Air
• Automatic Tool Changer Capacity: 90 Tools
• Automatic Pallet Pool: 10 Pallets
• High-Pressure Coolant: 300 PSI
• Coolant Filtration: 20 Microns

EQUIPPED WITH

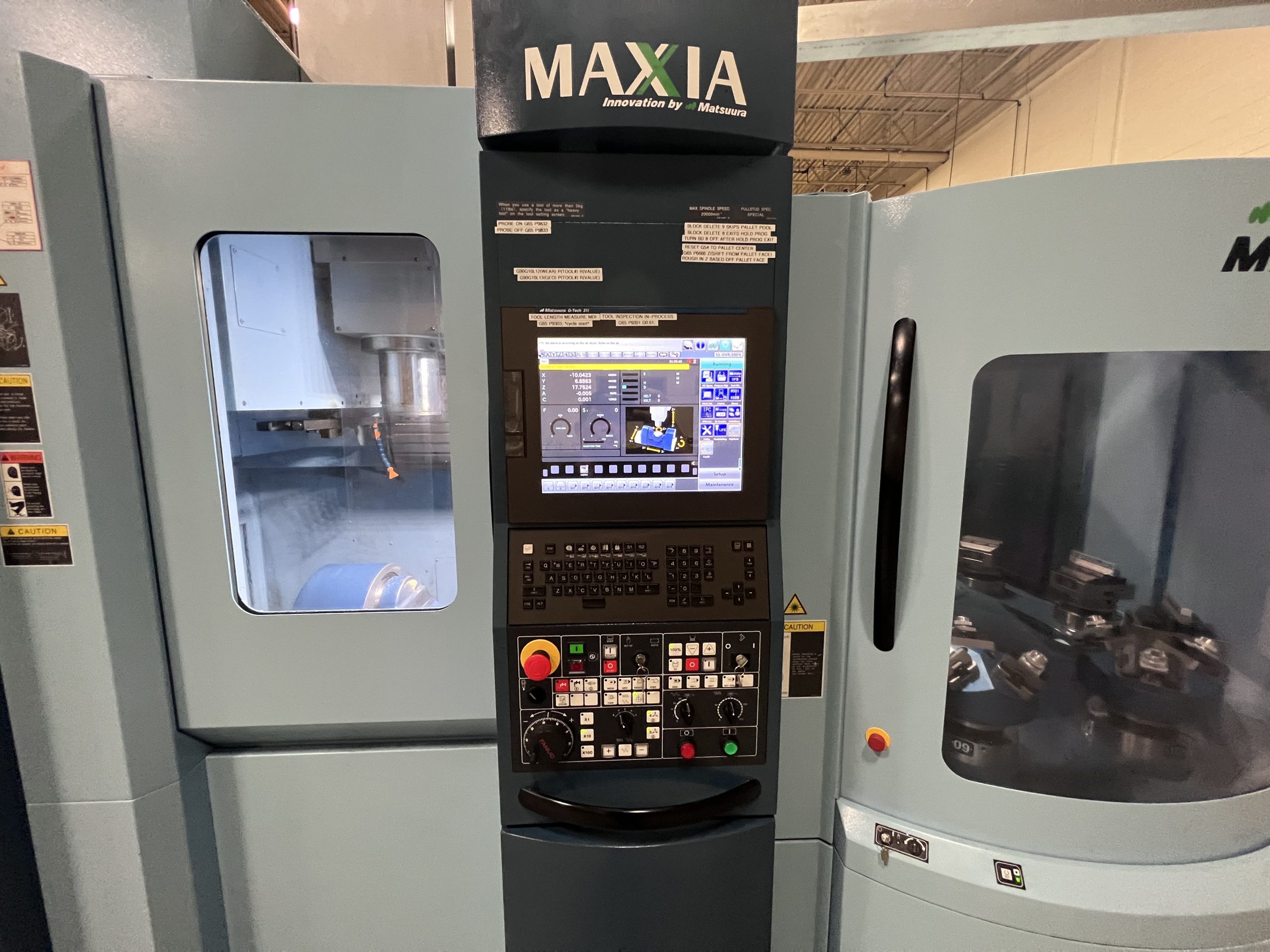

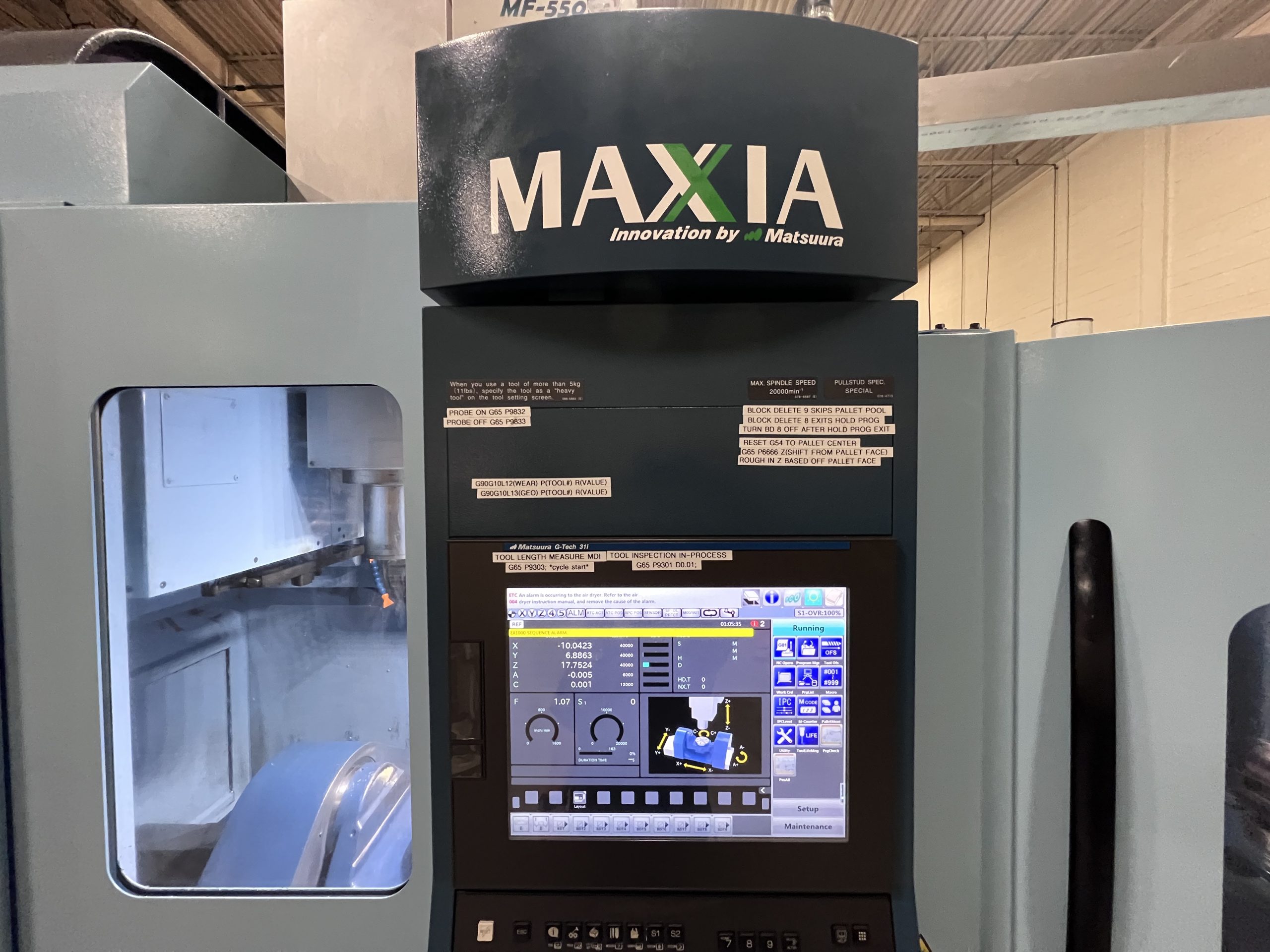

• Matsuura G-Tech 31i CNC Control

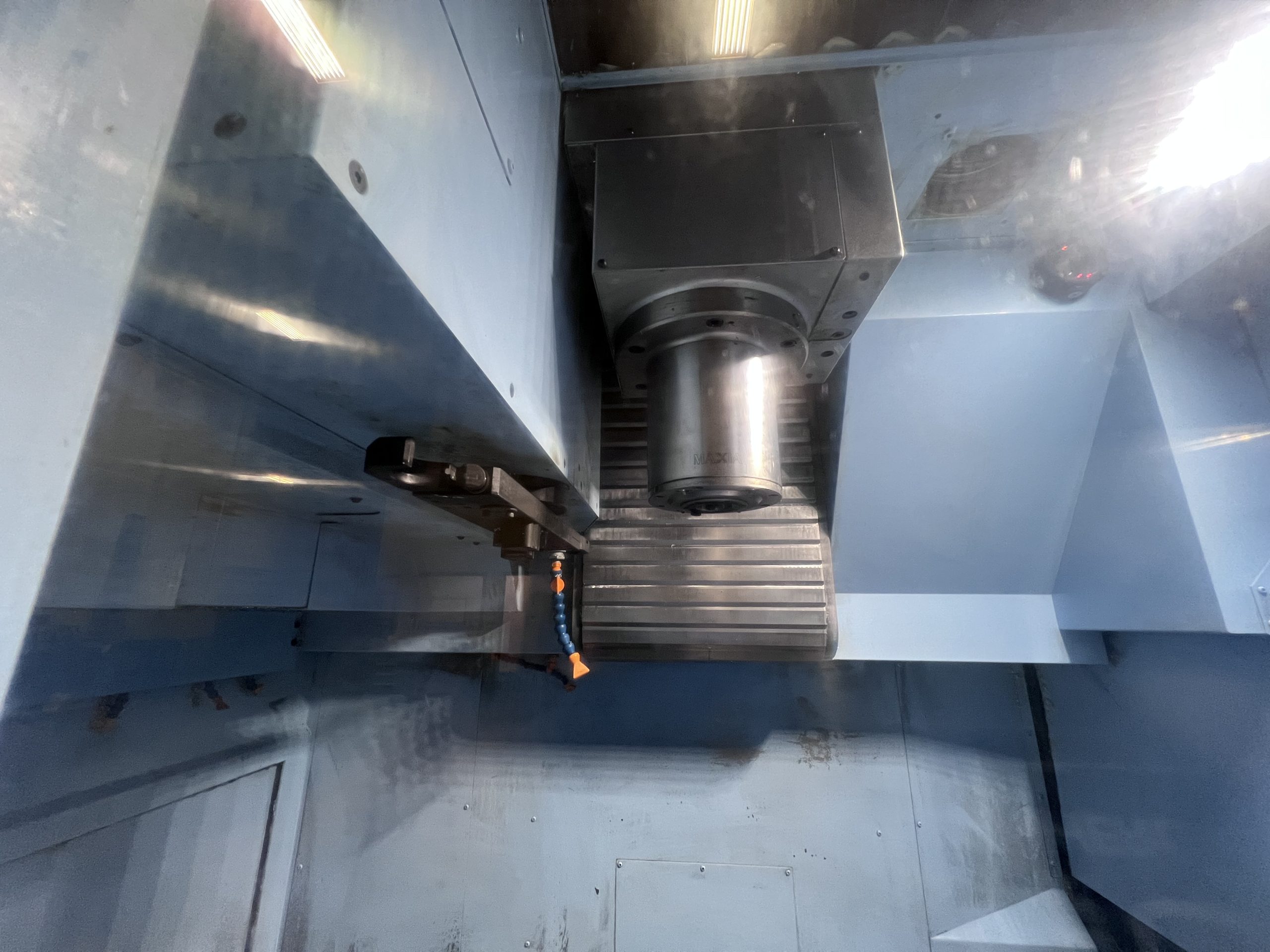

• 20,000 RPM CAT 40 Big Plus spindle

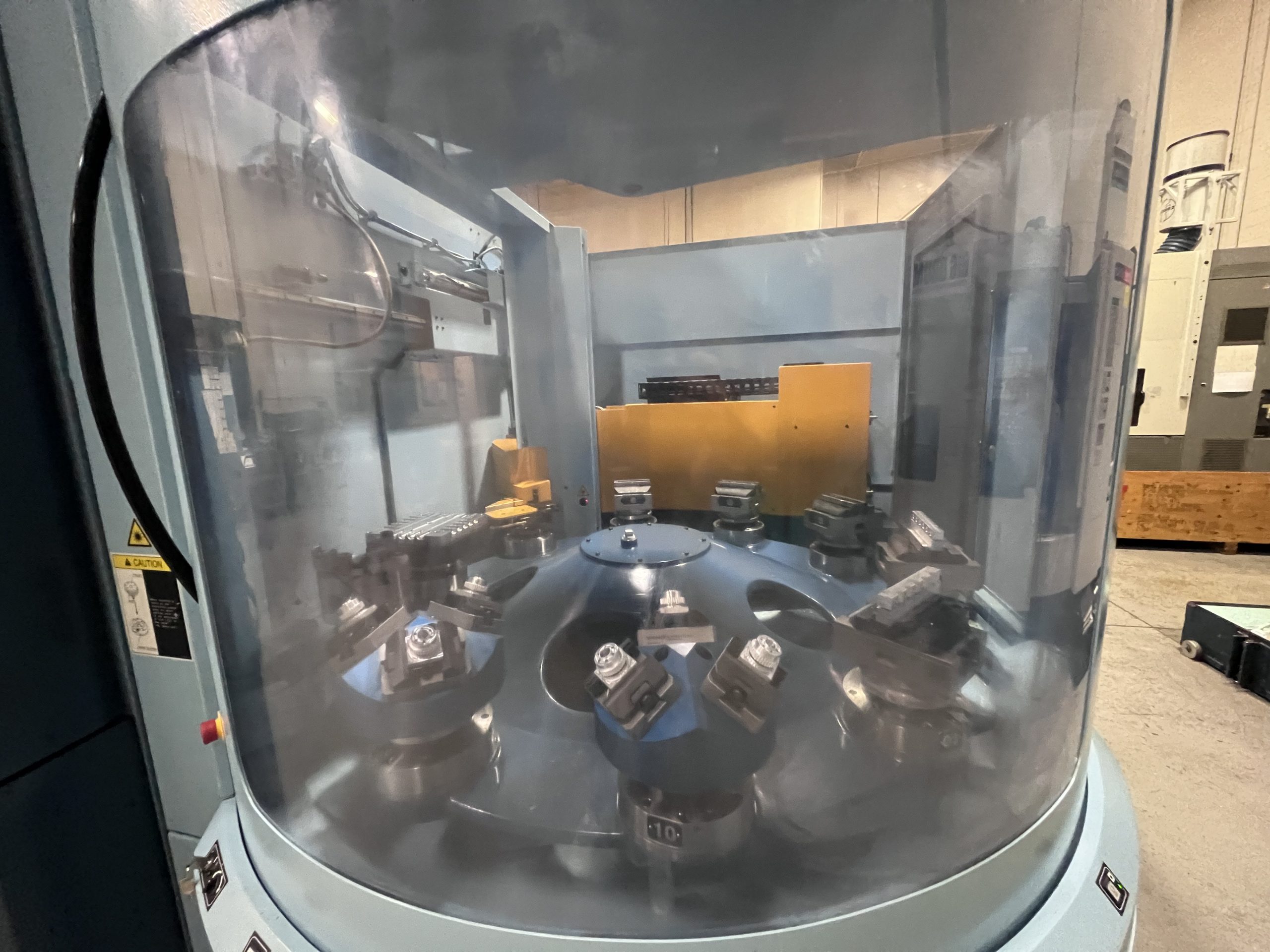

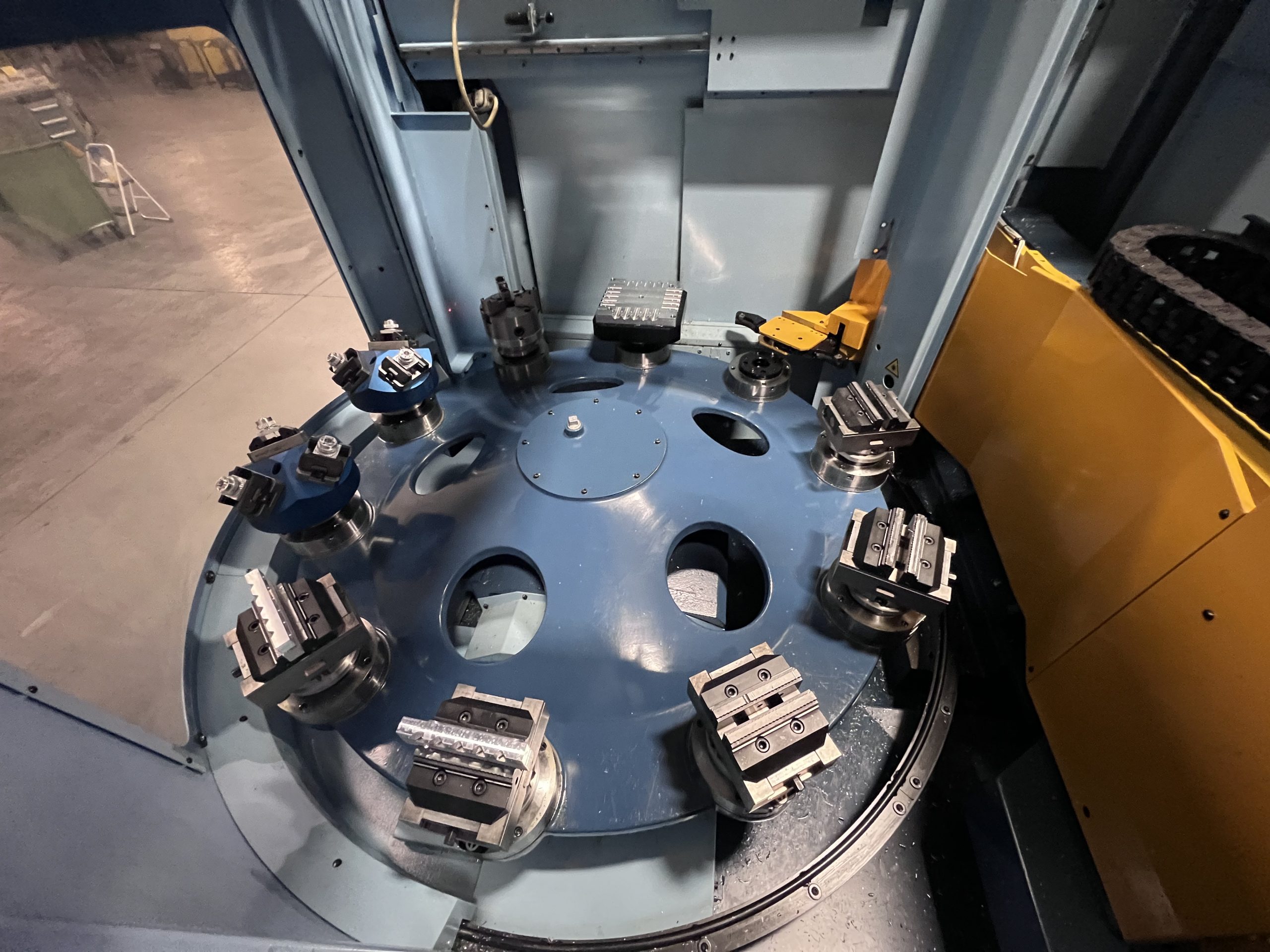

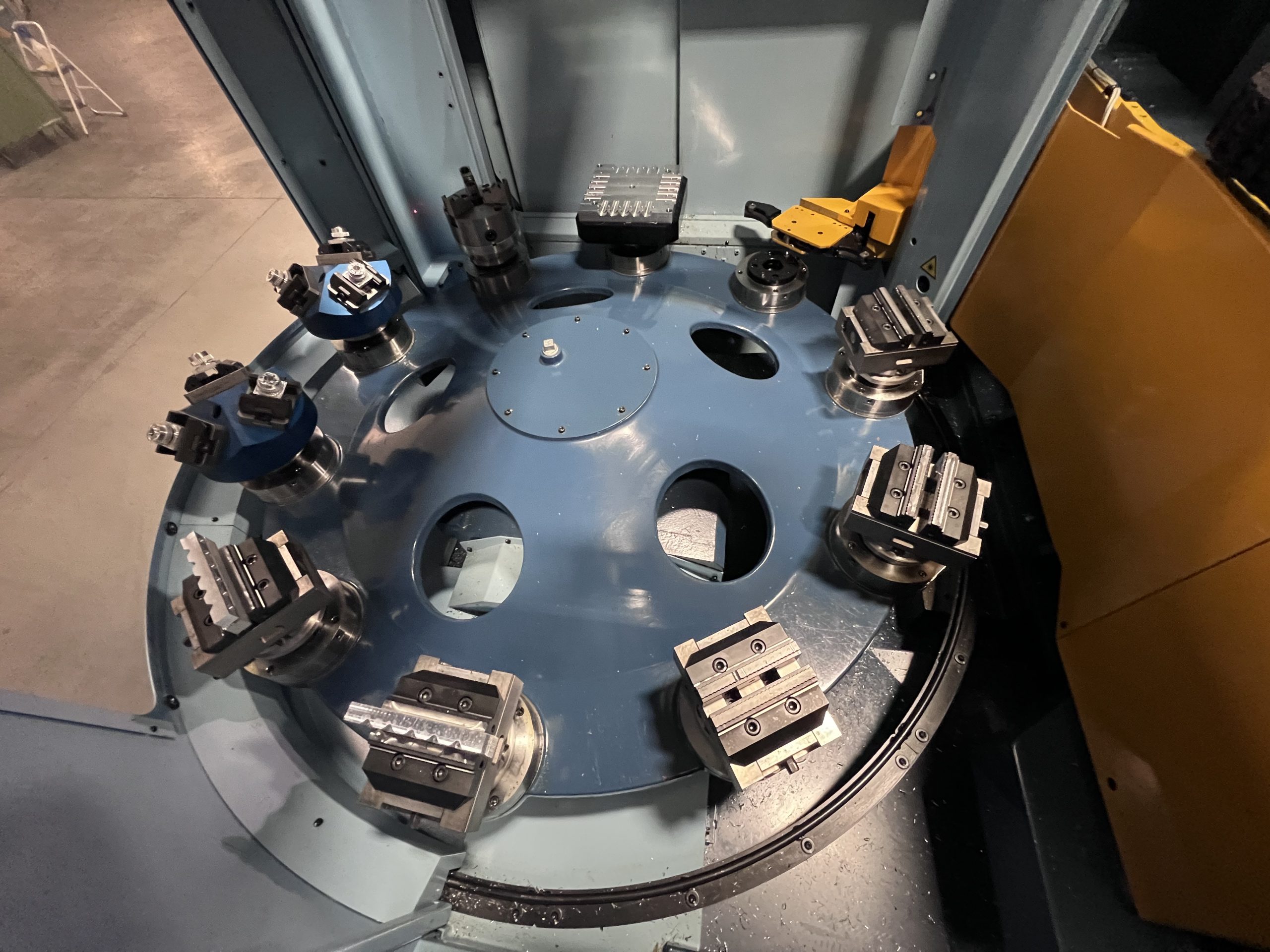

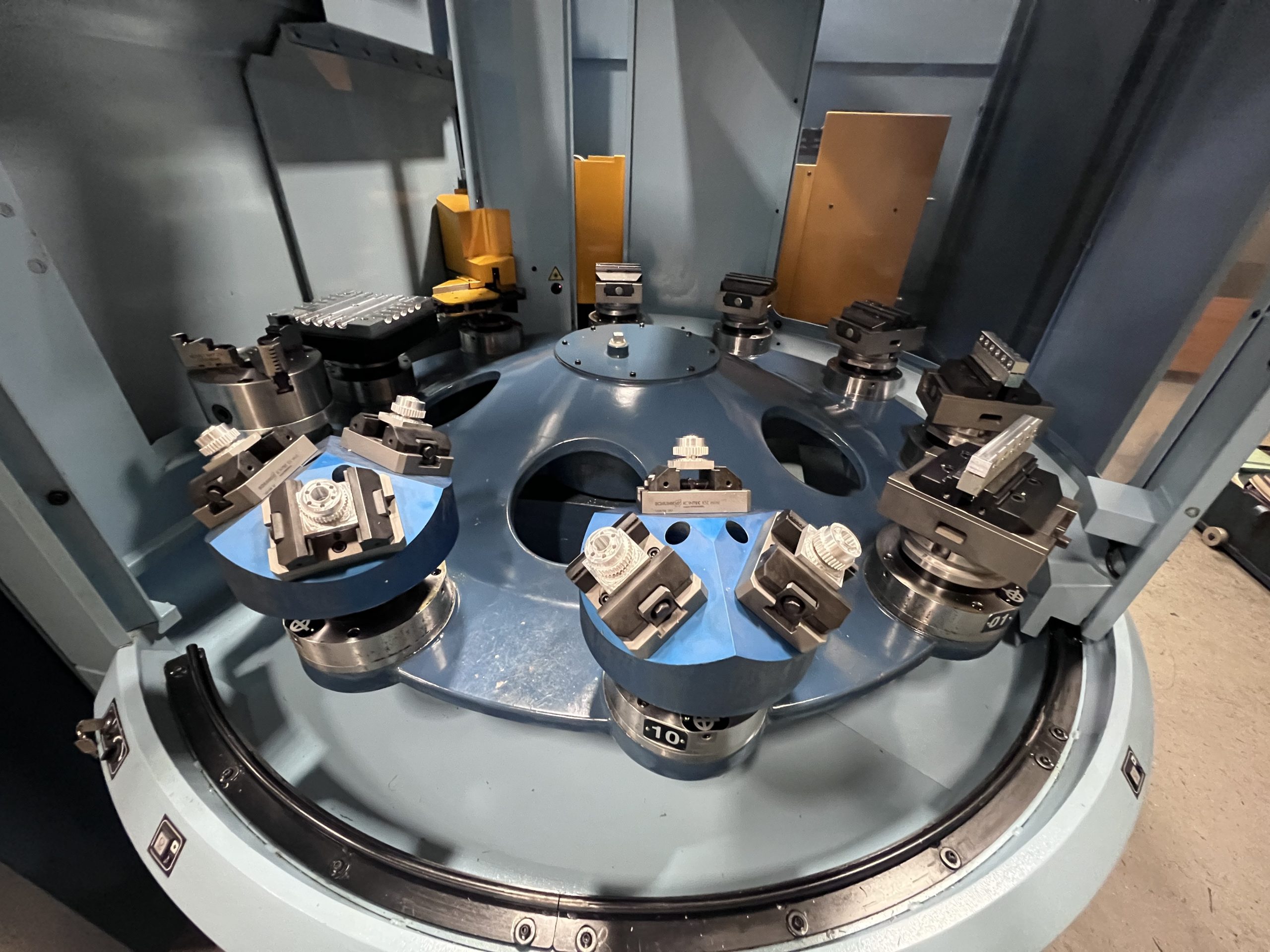

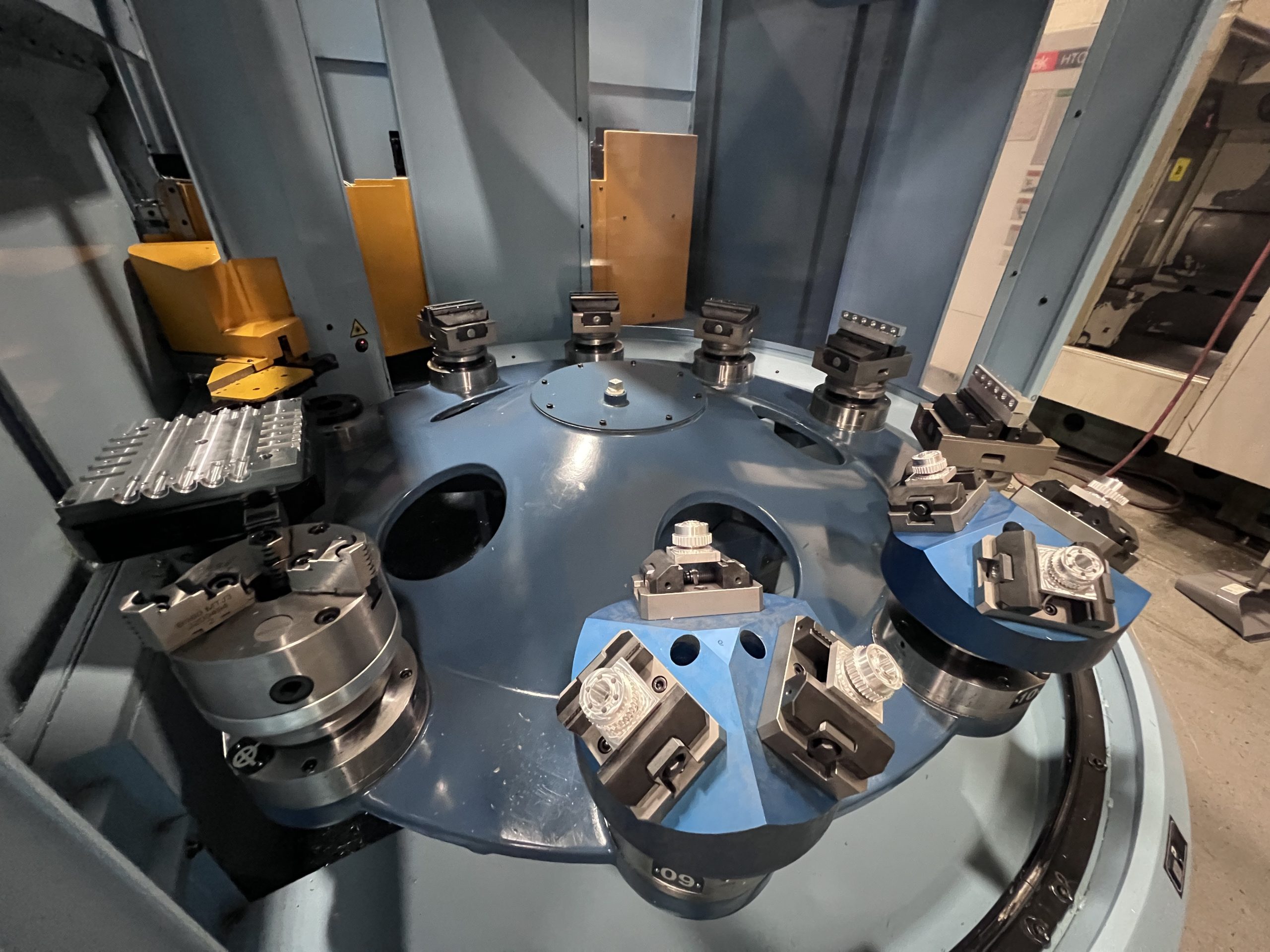

• 10-pallet automatic pallet system

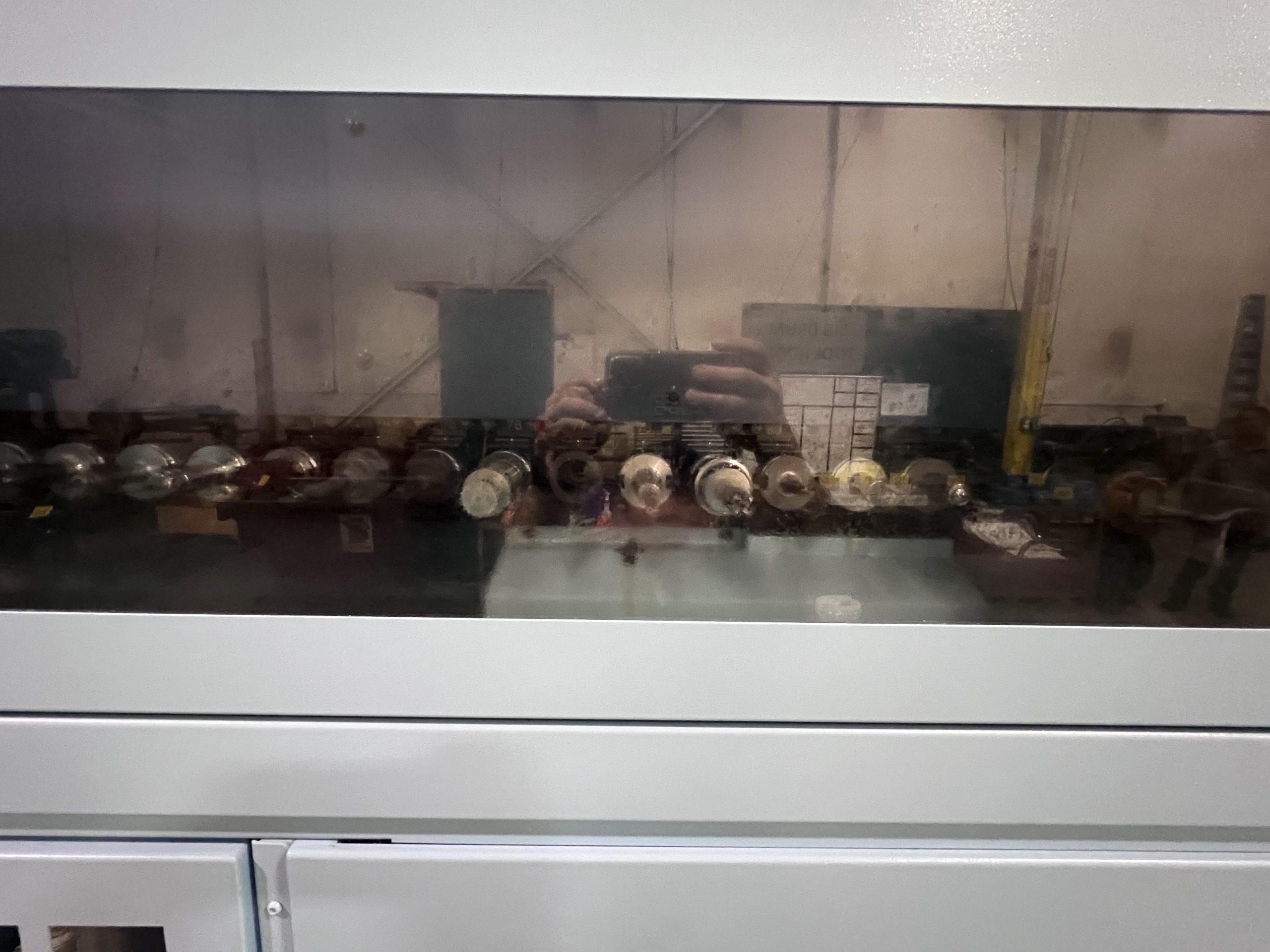

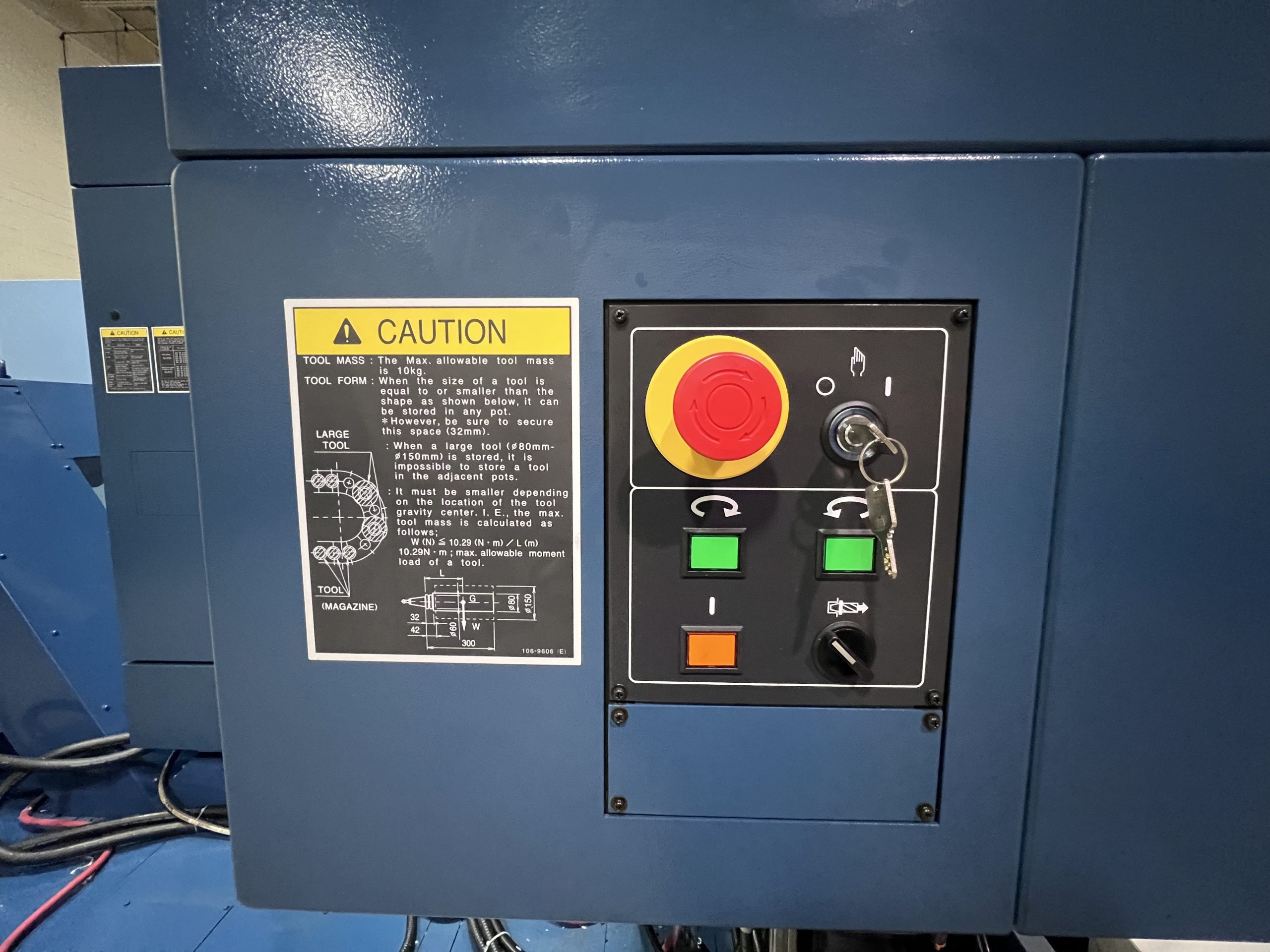

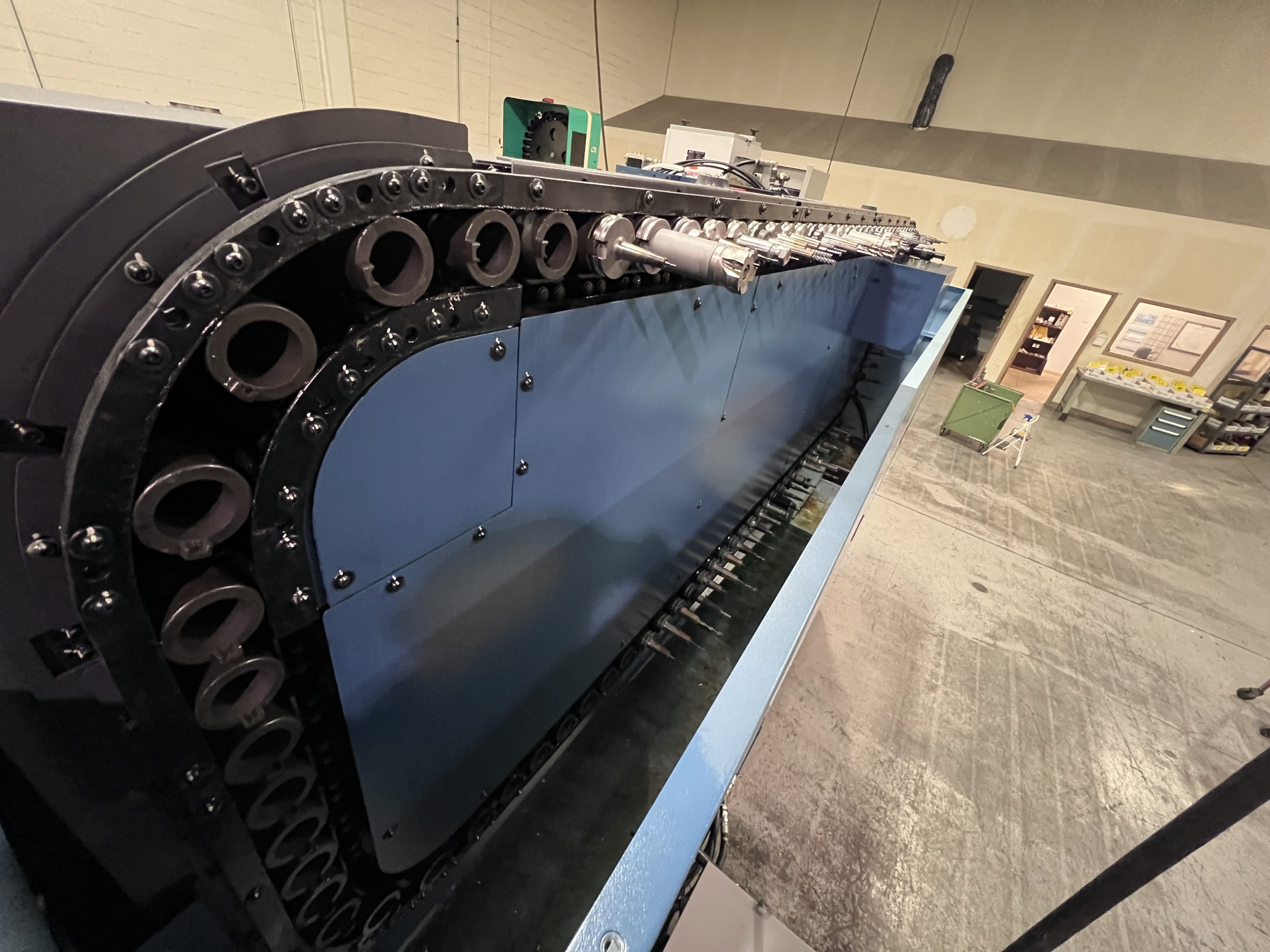

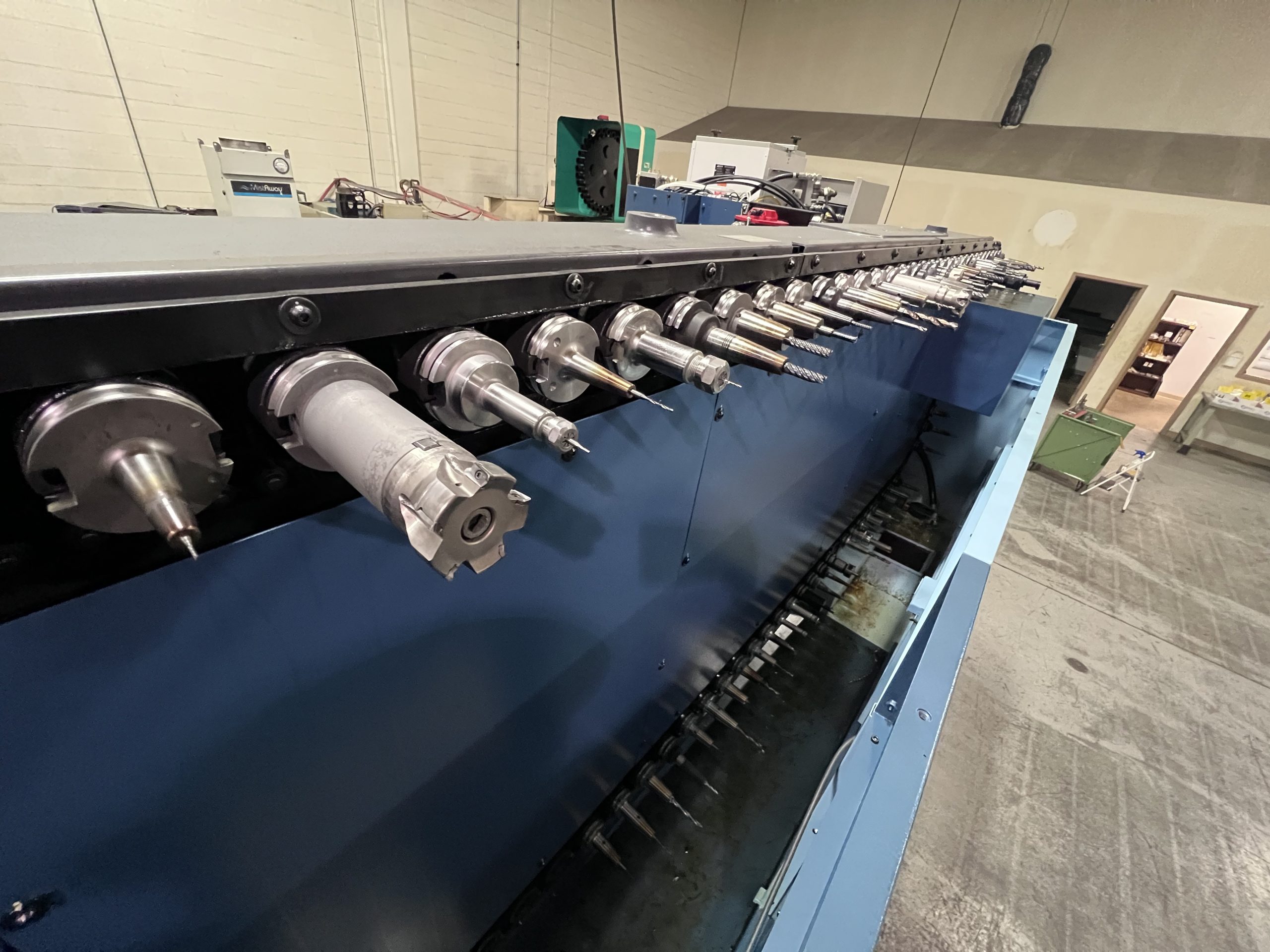

• 90-position automatic tool changer
• Matsuura/Fanuc iZ-2 high-speed 5-axis package
• Linear scale feedback on X, Y, Z, A & C axes
• Environmental thermal compensation
• Renishaw NC-4 laser tool breakage & tool length measurement
• Renishaw OMP-40 in-process spindle probe
• EZ-5 kinematic calibration package
• 300 PSI high-pressure coolant system
• 20-micron coolant filtration

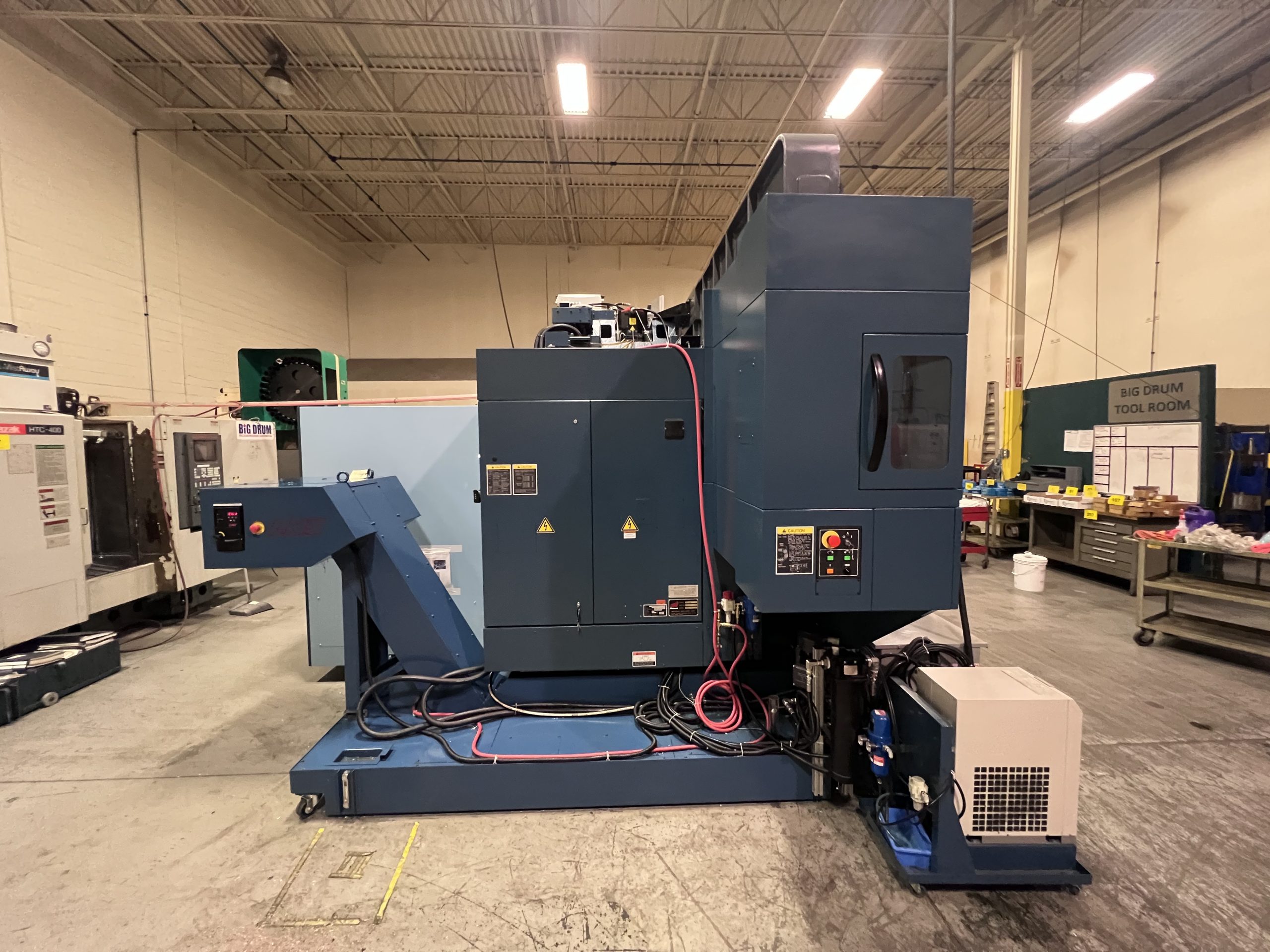

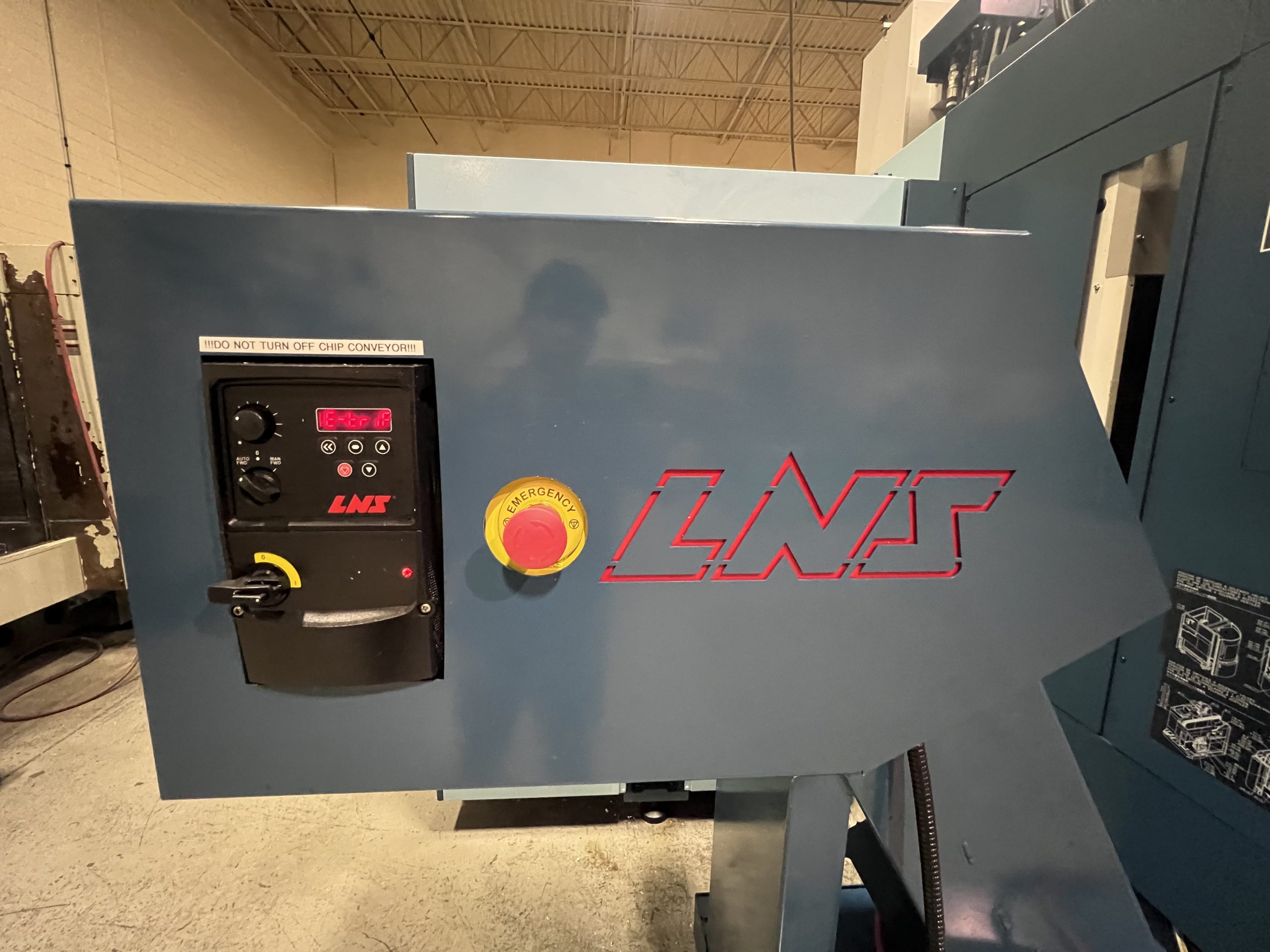

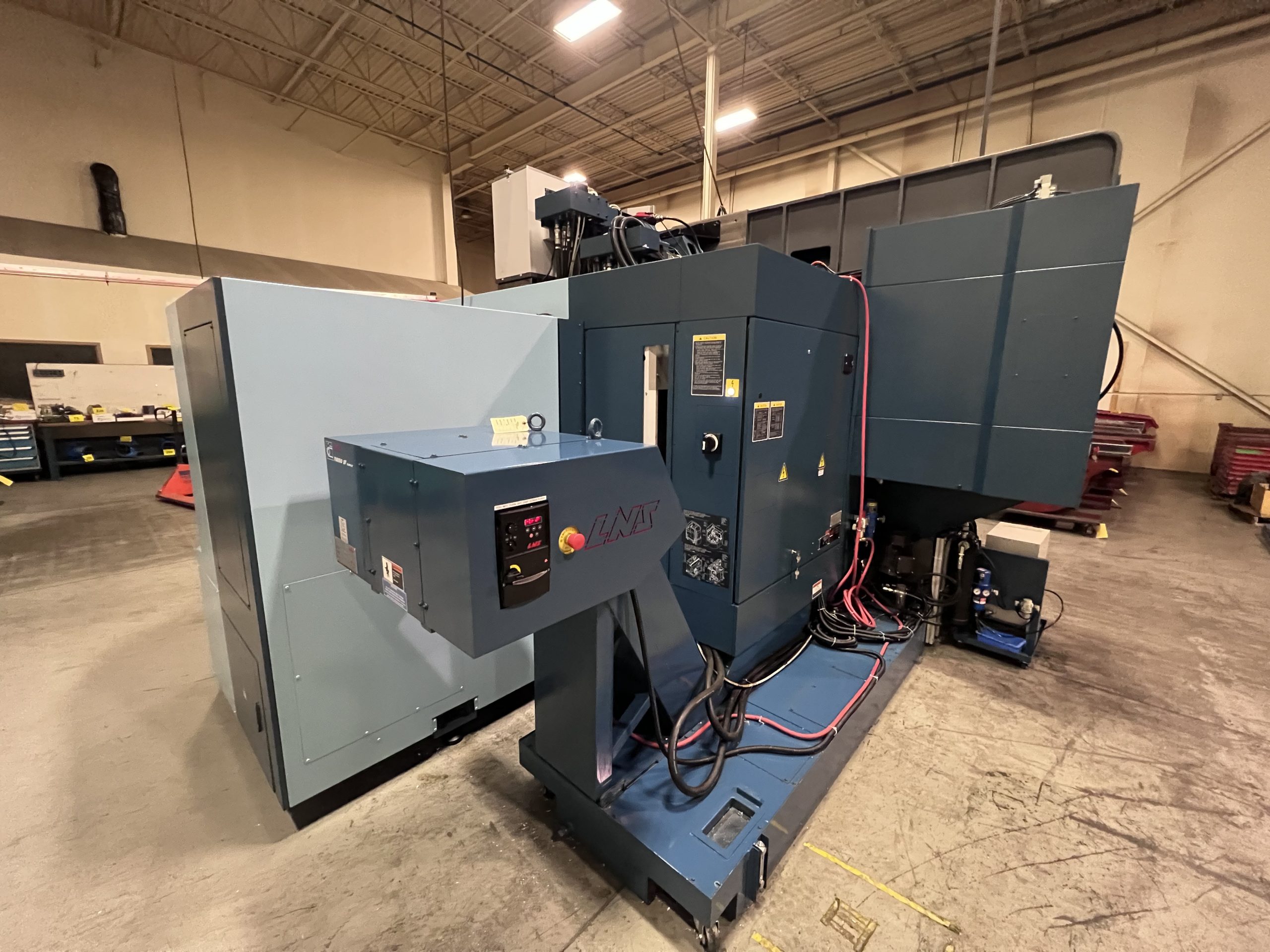

• LNS Turbo SF Compact chip conveyor

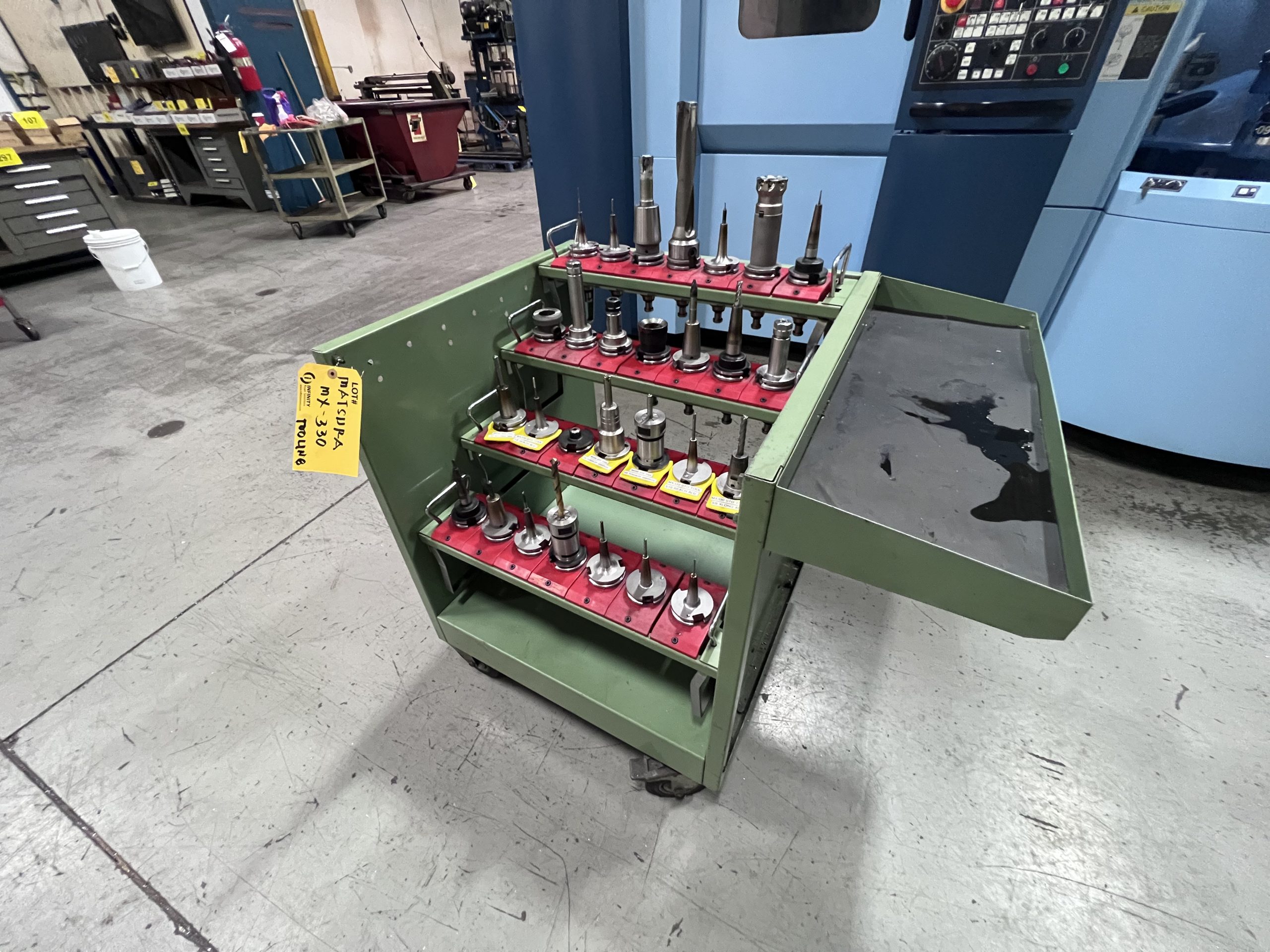

• Large quantity of tool holders
• Large quantity of tooling
• Machine vises

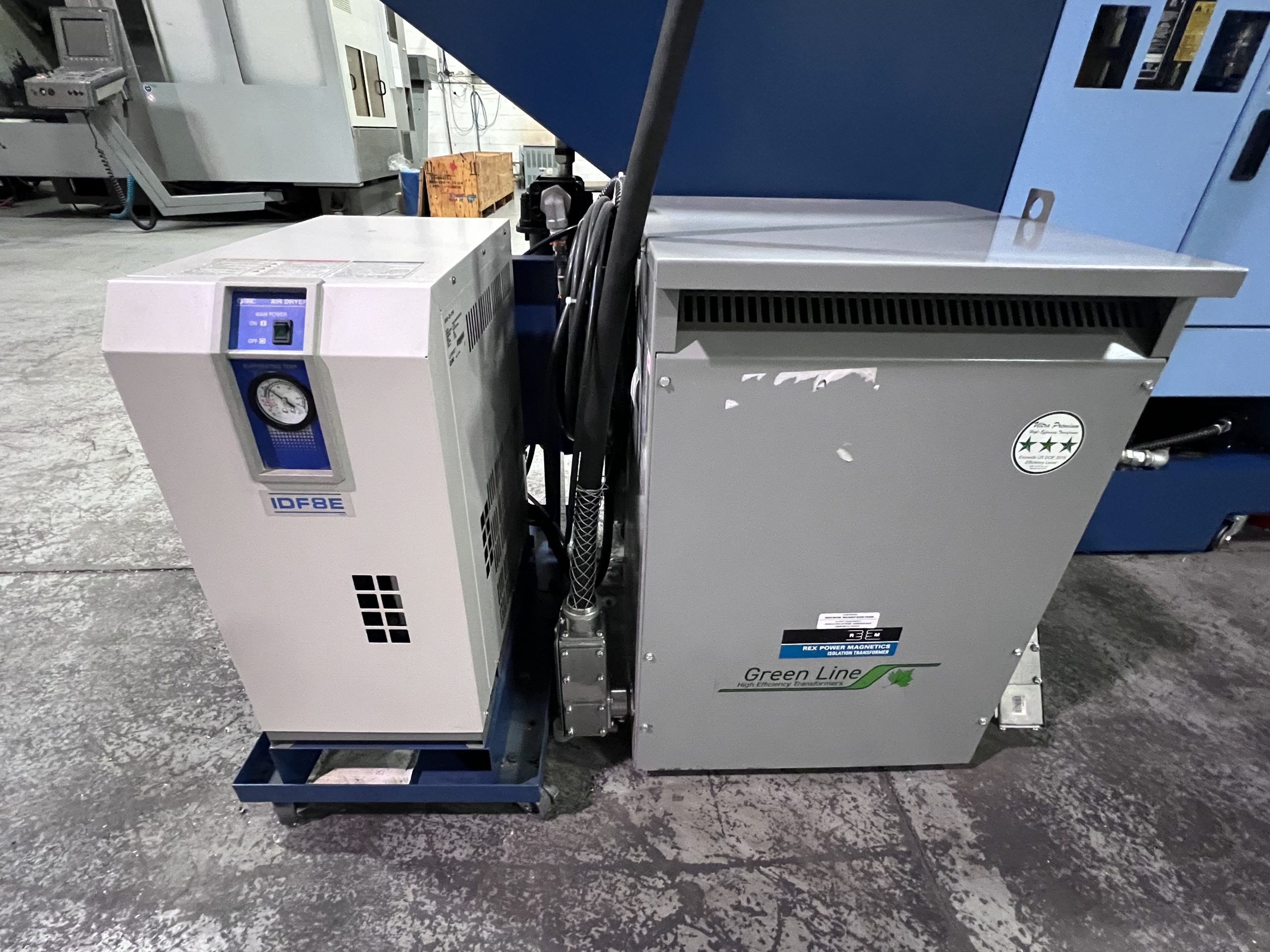

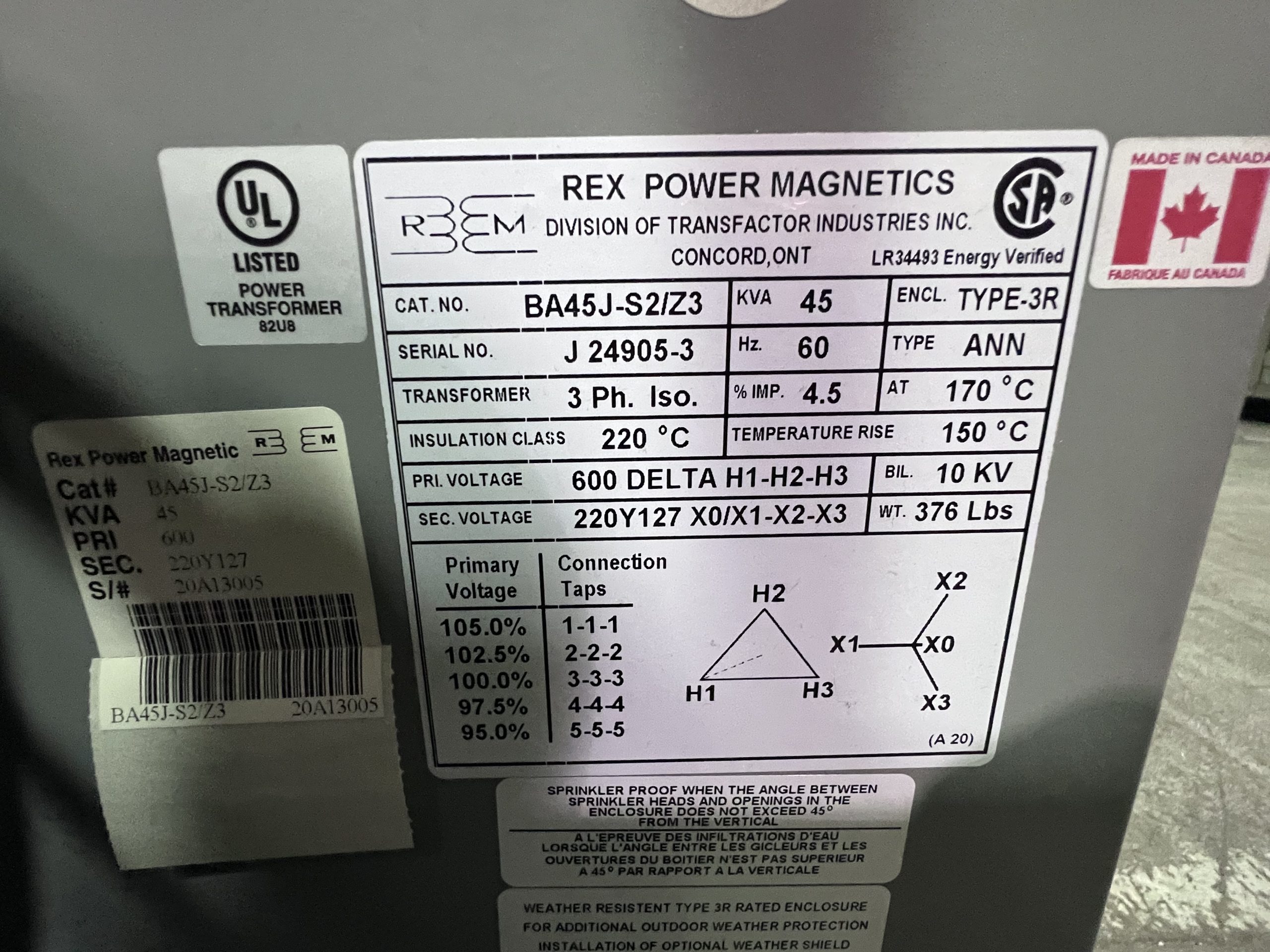

• Rex Power Magnetics 45 KVA transformer (600V)

FEATURES
✓ Premium Japanese-built 5-axis machining center
✓ Designed for fully automated lights-out manufacturing
✓ High-speed 20,000 RPM spindle for exceptional productivity and surface finish
✓ 10-pallet automation system dramatically increases unattended production
✓ 90-tool ATC supports complex multi-operation machining
✓ Full linear scale feedback on all five axes for superior positioning accuracy
✓ Renishaw laser measurement and spindle probing maximize process reliability
✓ Environmental thermal compensation maintains micron-level precision during long production cycles
✓ 300 PSI high-pressure coolant improves chip evacuation and extends tool life
✓ Includes valuable tooling package, vises, and transformer

APPLICATIONS
• Aerospace components
• Medical device manufacturing
• Mold & die machining
• Precision automotive components
• High-complexity 5-axis machining
• Lights-out production
• High-volume precision manufacturing
