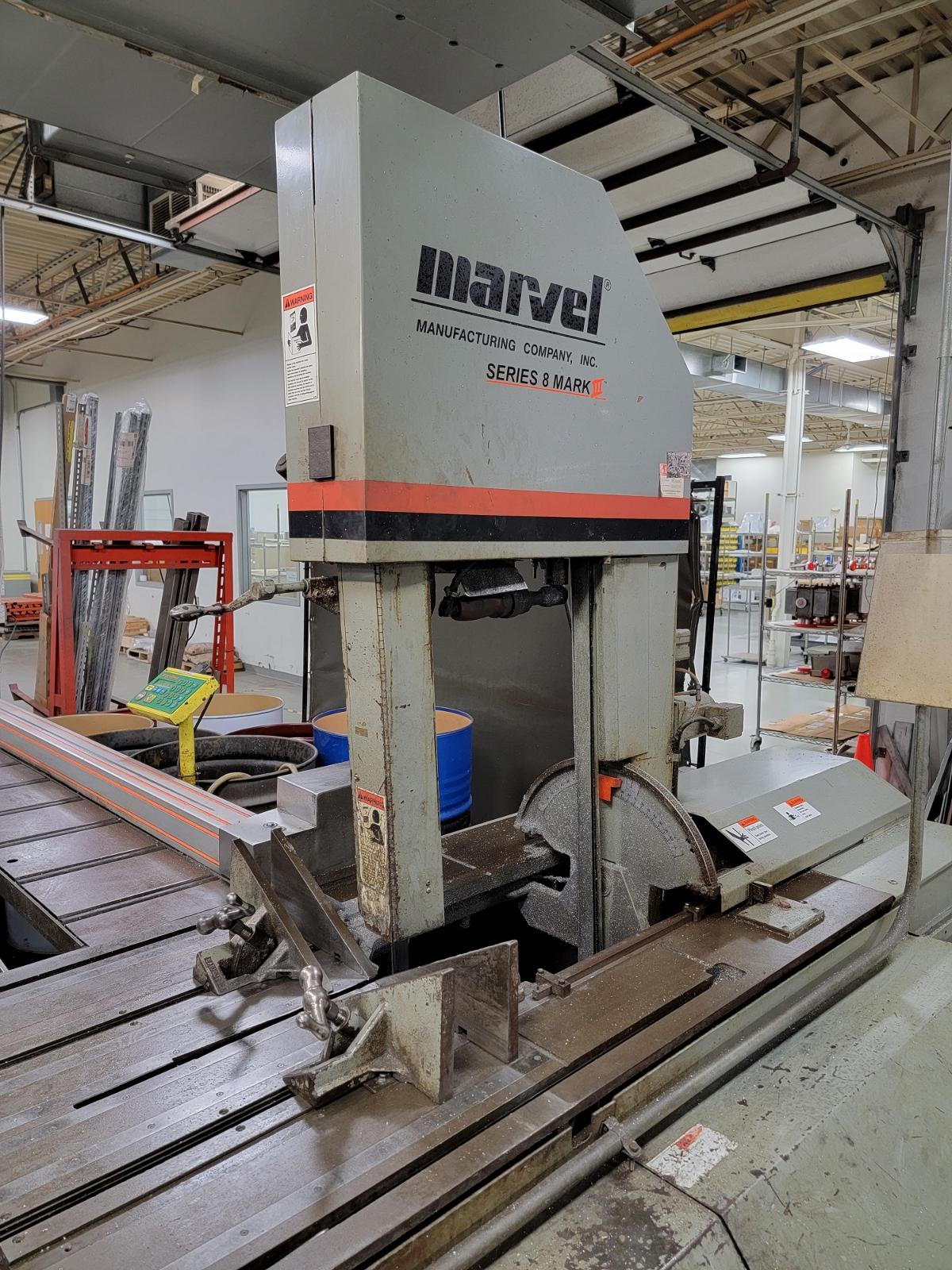

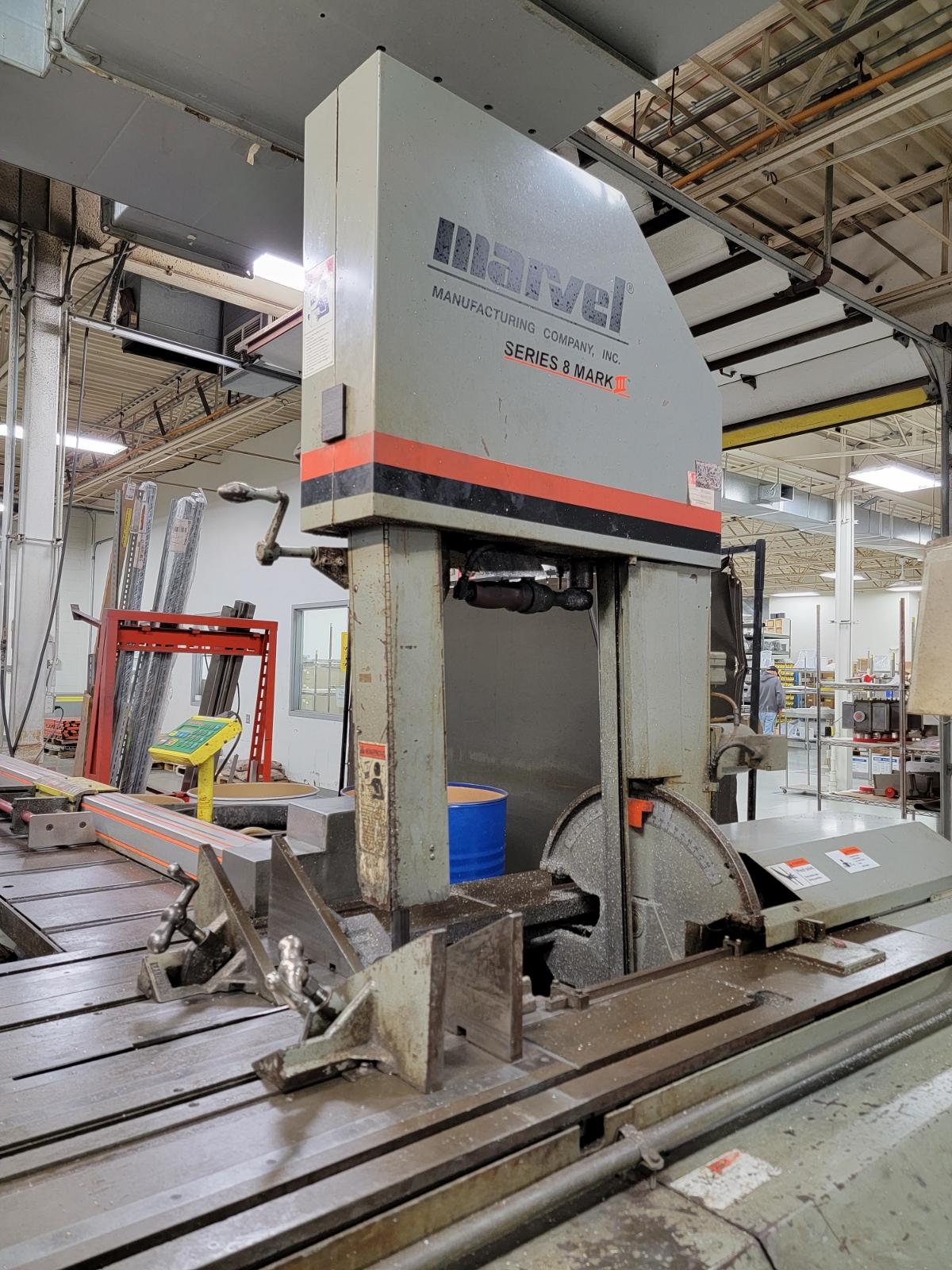

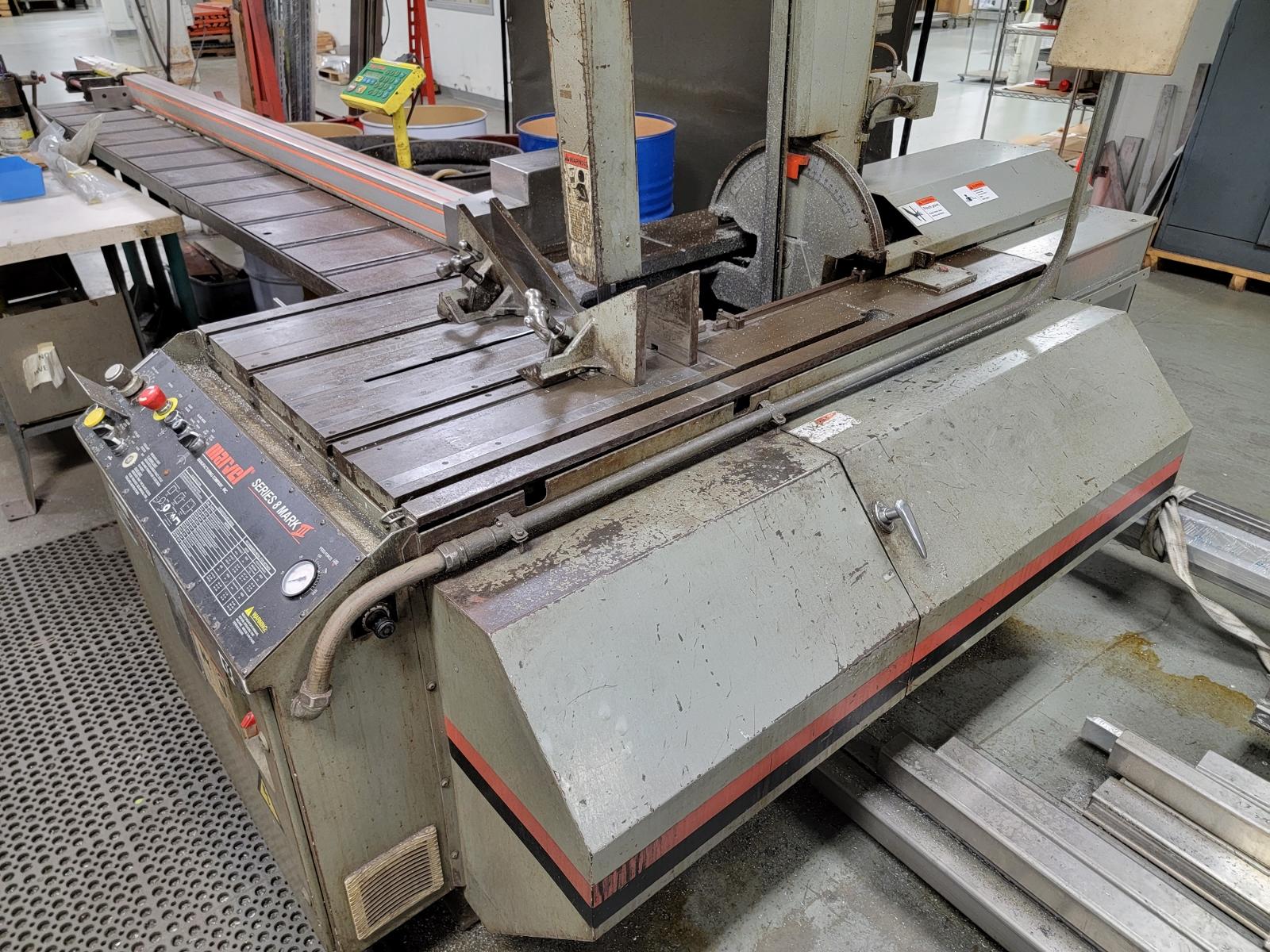

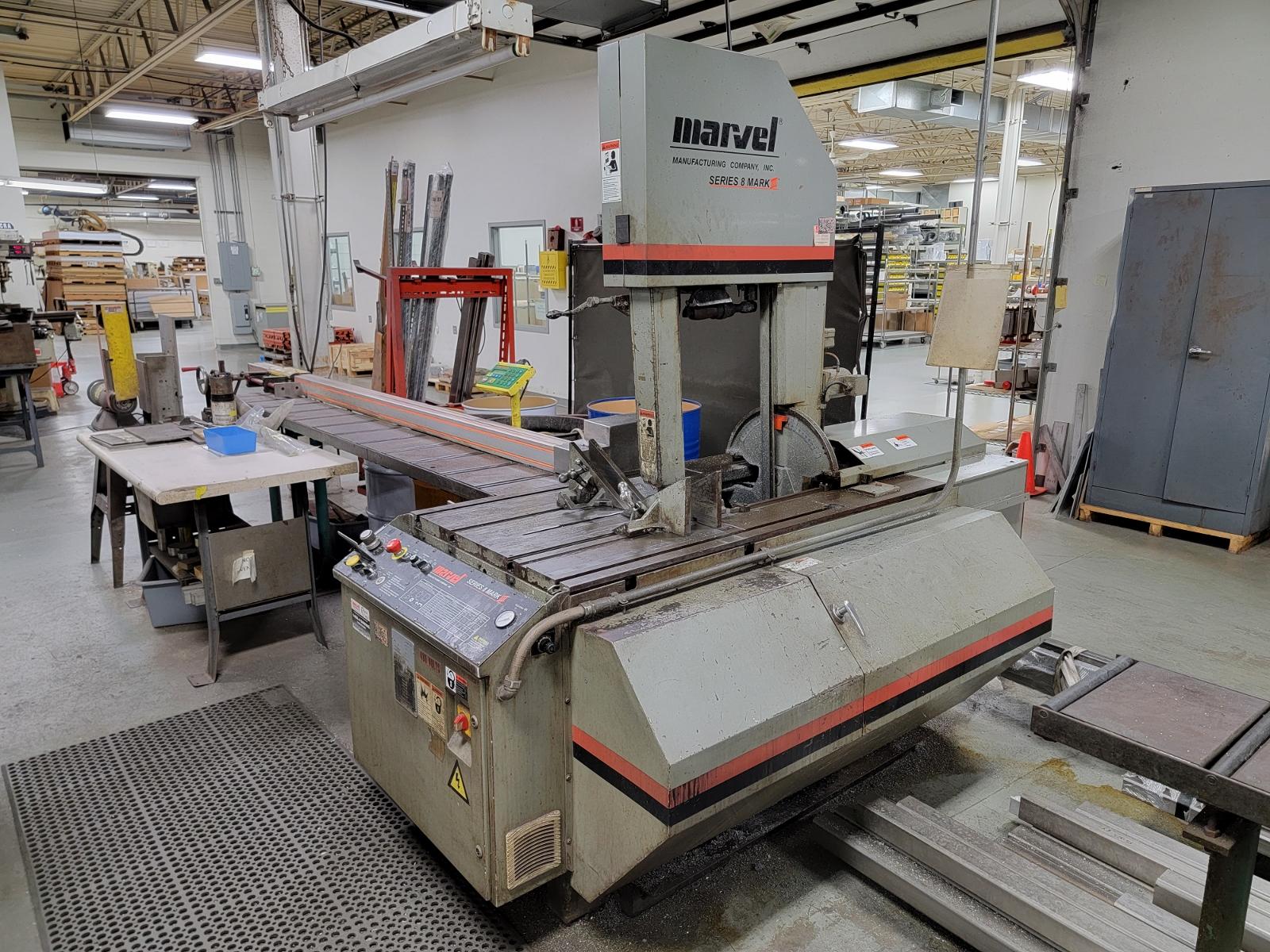

MARVEL SERIES 8 MARK III TILT FRAME VERTICAL BAND SAW
Original price was: $15,000.00.$12,000.00Current price is: $12,000.00.
GENERAL INFORMATION • Manufacturer: Marvel • Model: Series 8 Mark III • Machine Type: Vertical Band Saw • Condition: Used CAPACITY & CUTTING RANGE • Capacity […]
GENERAL INFORMATION
• Manufacturer: Marvel
• Model: Series 8 Mark III
• Machine Type: Vertical Band Saw
• Condition: Used
CAPACITY & CUTTING RANGE
• Capacity at 90°: 18″ x 22″
• Capacity at 45°: 18″ x 14.5″ (Right) / 18″ x 13″ (Left)
• Capacity at 60°: 18″ x 9.7″ (Right) / 18″ x 7.3″ (Left)
• Column Tilt: 3° forward cant position (17.5″ x 22″)
BLADE SPECIFICATIONS
• Blade Size: 15′ 4″ x 1-1/4″ x 0.042″
• Blade Speed: Variable 50 – 450 FPM

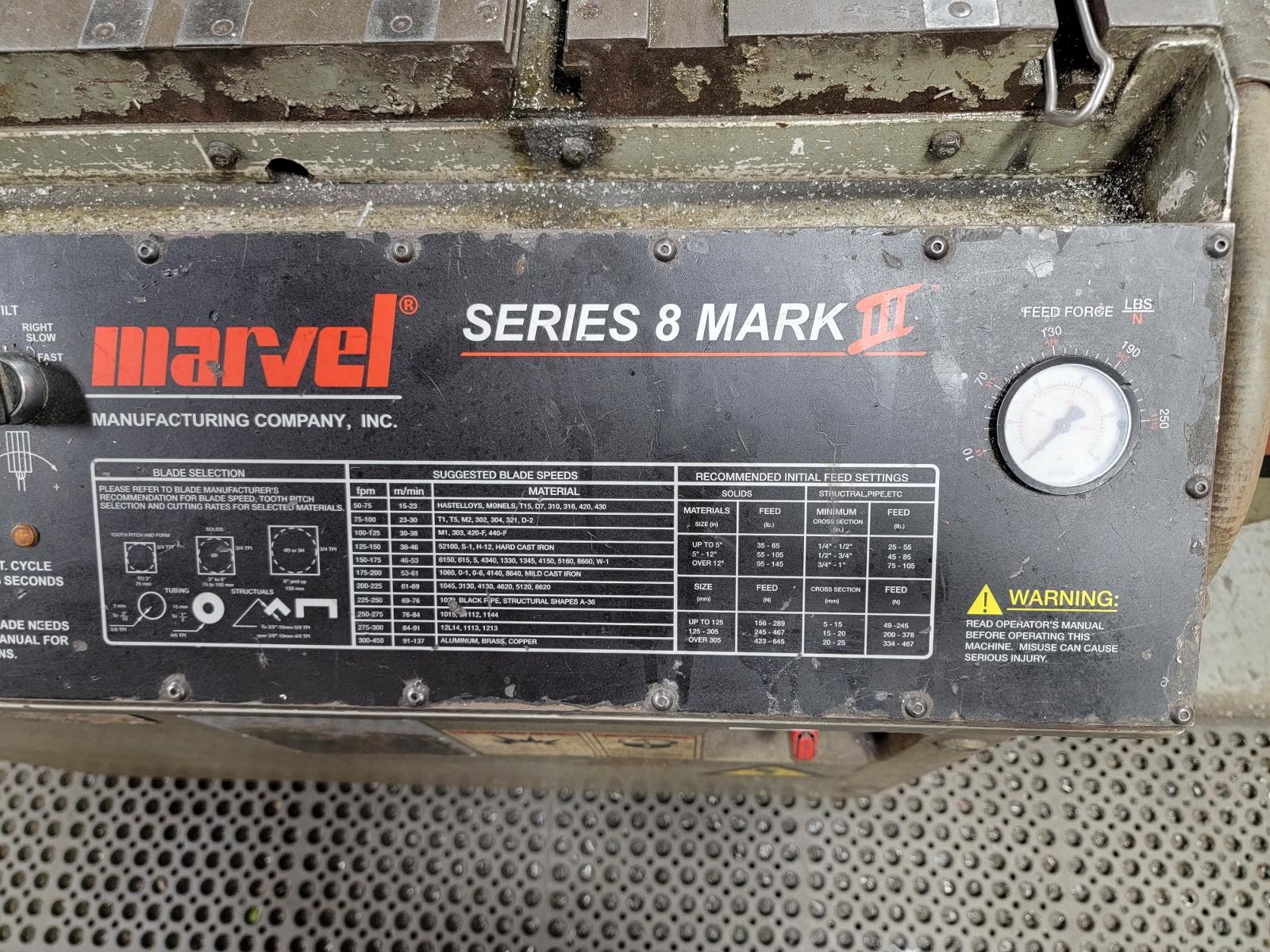

• Blade Feed Pressure: 0 – 250 lbs
• Variable blade feed system for controlled cutting performance
WORK TABLE

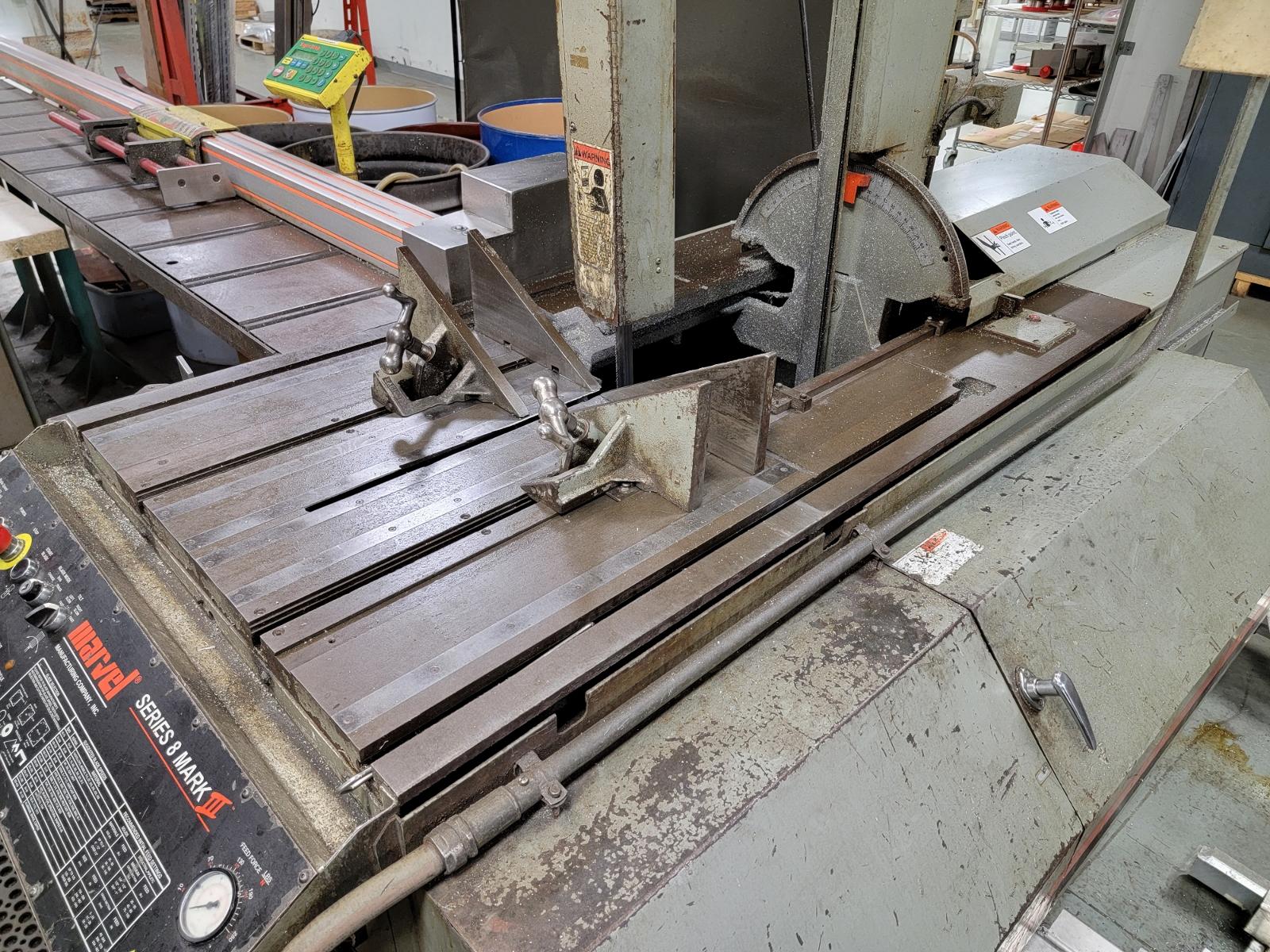

• Table Work Surface: 24.25″ x 33″
POWER
• Main Drive Motor: 5 HP

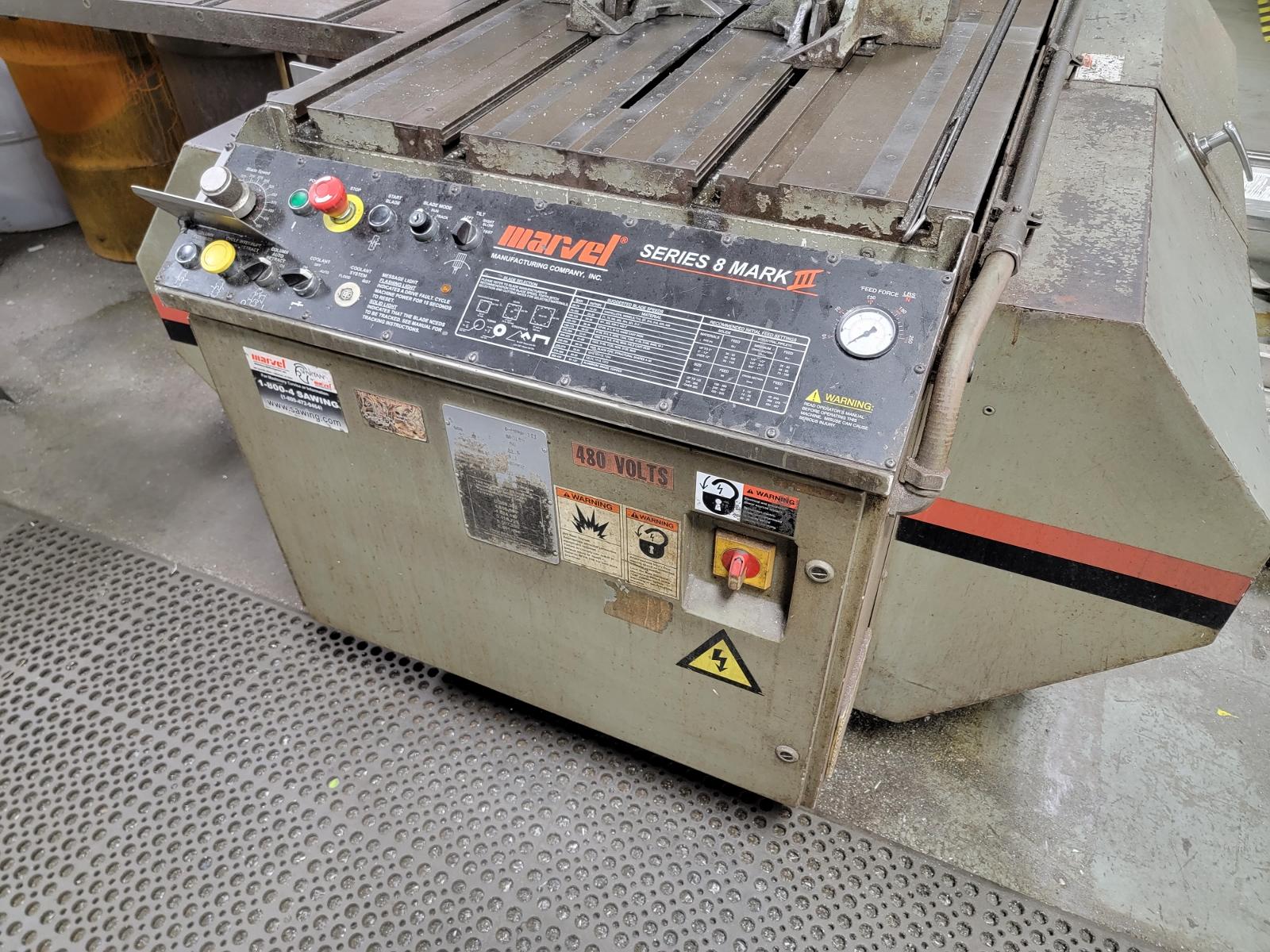

• Electrical: 480V / 3 Phase
EQUIPPED WITH

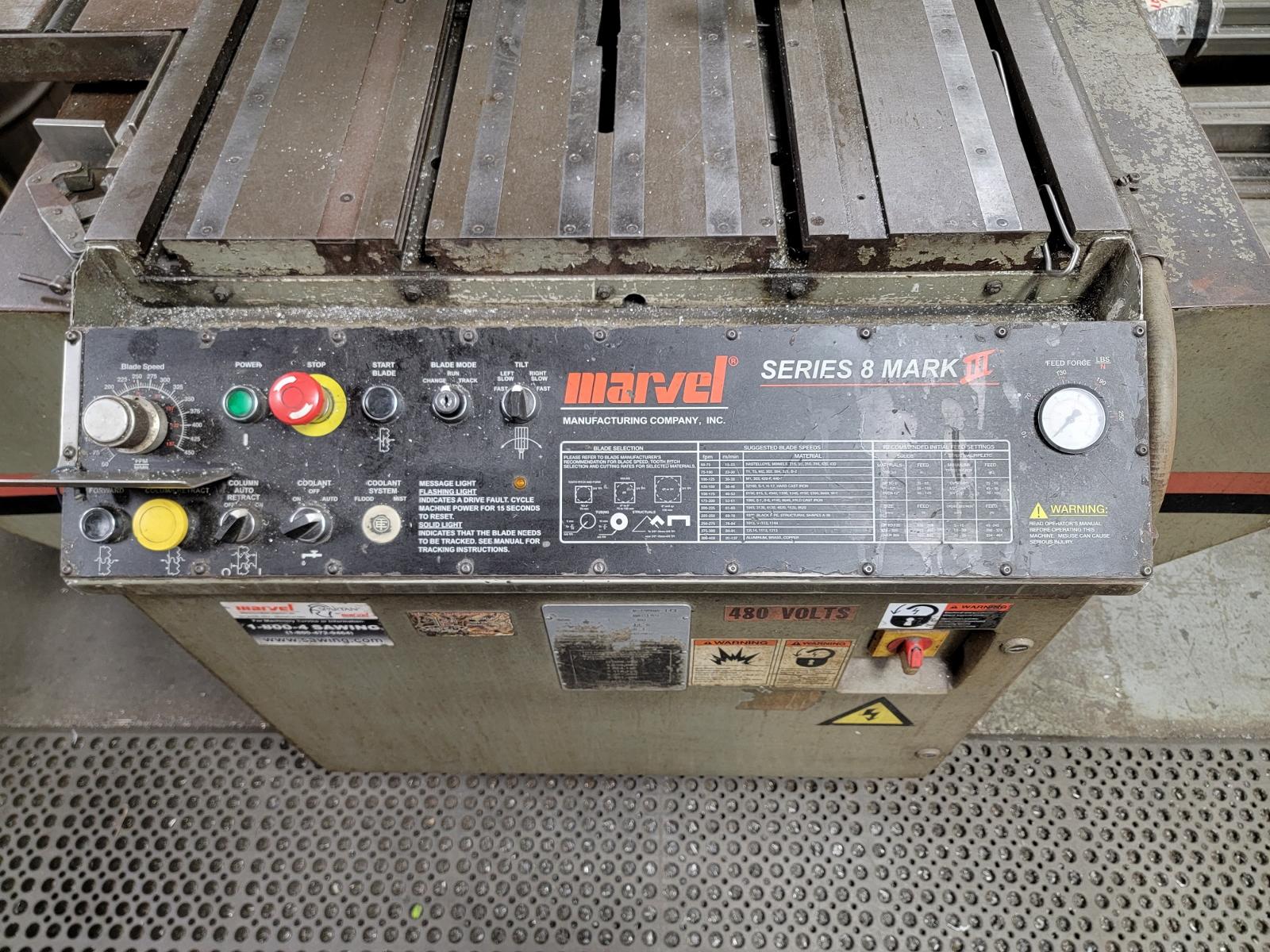

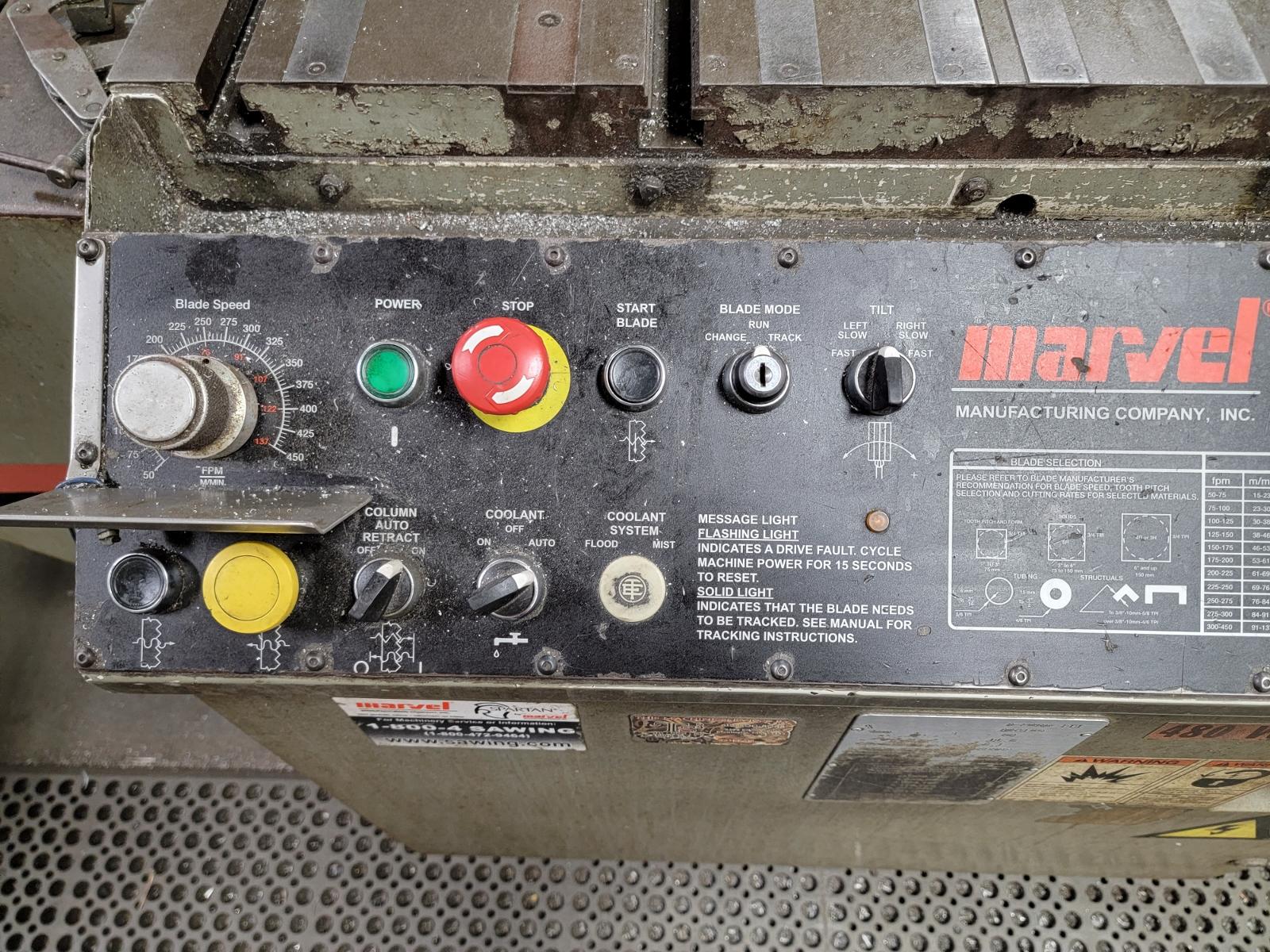

• Variable blade speed control

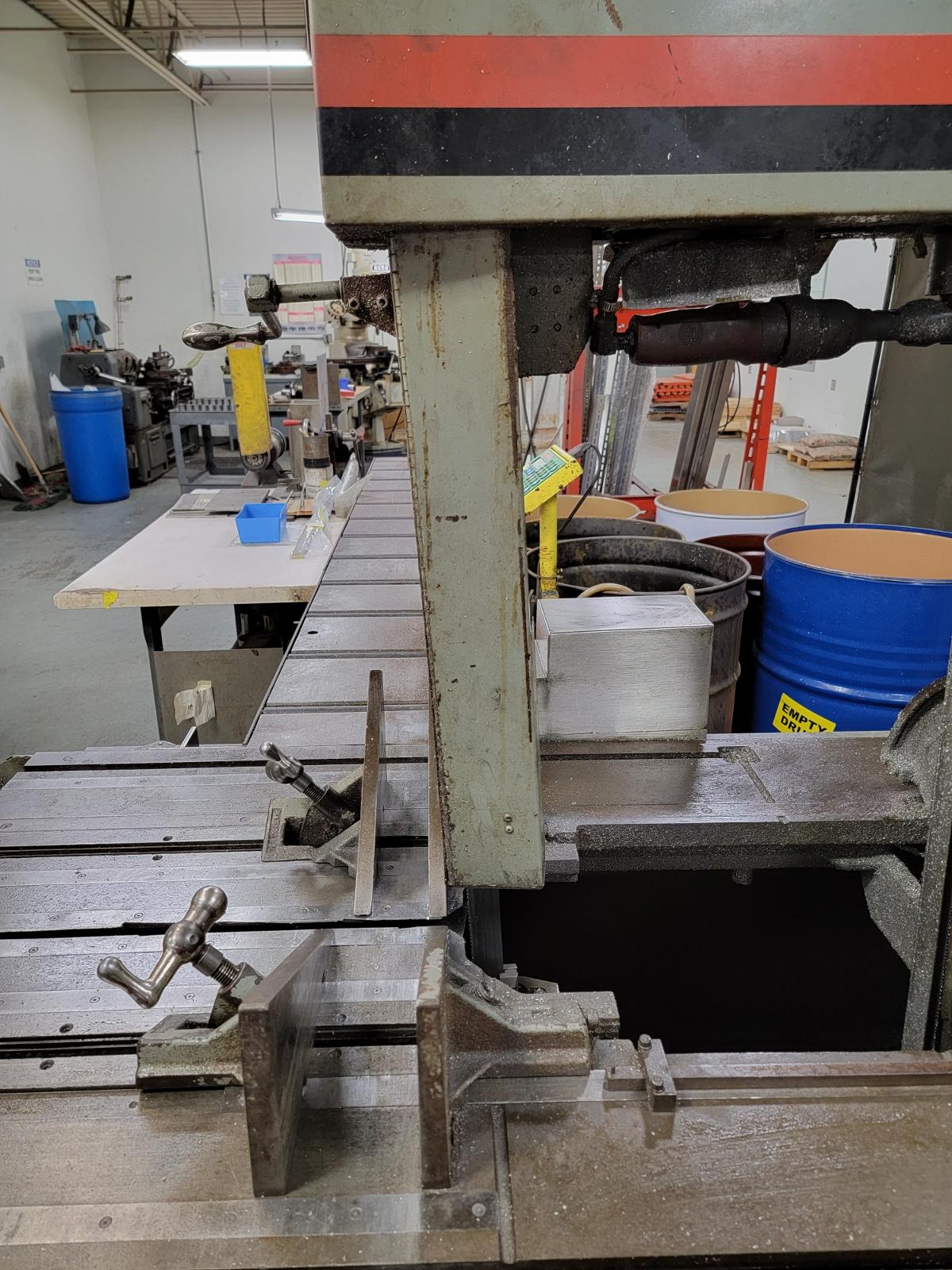

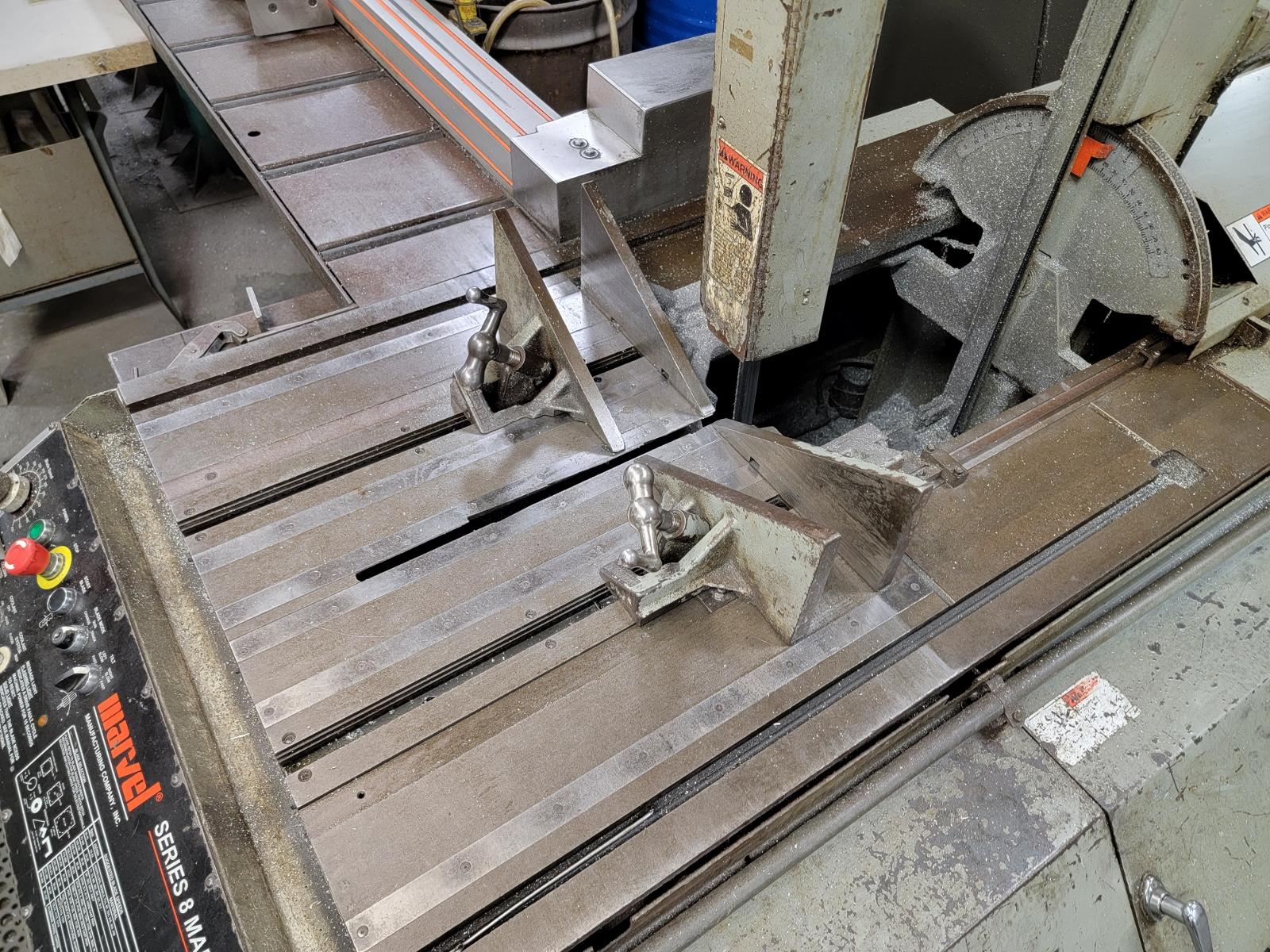

• Hydraulic work vises
• 10′ TigerStop programmable material stop system
• Automatic feed control system
MACHINE DIMENSIONS & WEIGHT
• Approximate Weight: 3,000 lbs
• Machine Size: 60″ L x 94″ W x 90″ H
• Infeed with Stop: 194″ length system
FEATURES
✓ Heavy-duty industrial vertical band saw with tilt frame design
✓ Variable speed and feed control for precision cutting
✓ 10′ TigerStop programmable stop system for repeatable cuts
✓ Capable of straight and angle cutting up to 60°
✓ Rugged construction designed for continuous production use
✓ Ideal for structural steel and fabrication shops
APPLICATIONS
• Structural steel fabrication
• Metal service centers
• General fabrication shops
• Tube and bar cutting
• Industrial maintenance shops
• Production cutting operations
SHIPPING DIMENSIONS
Please note that this dimensions are estimative.
