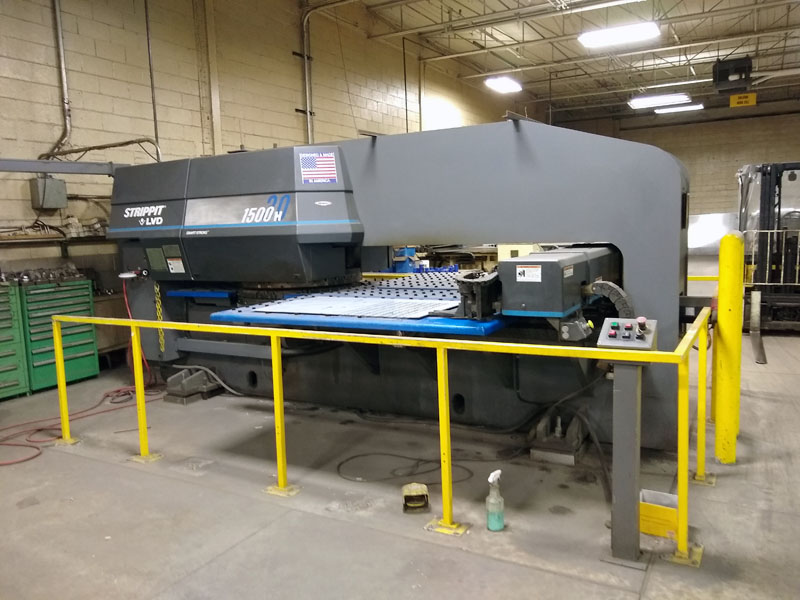

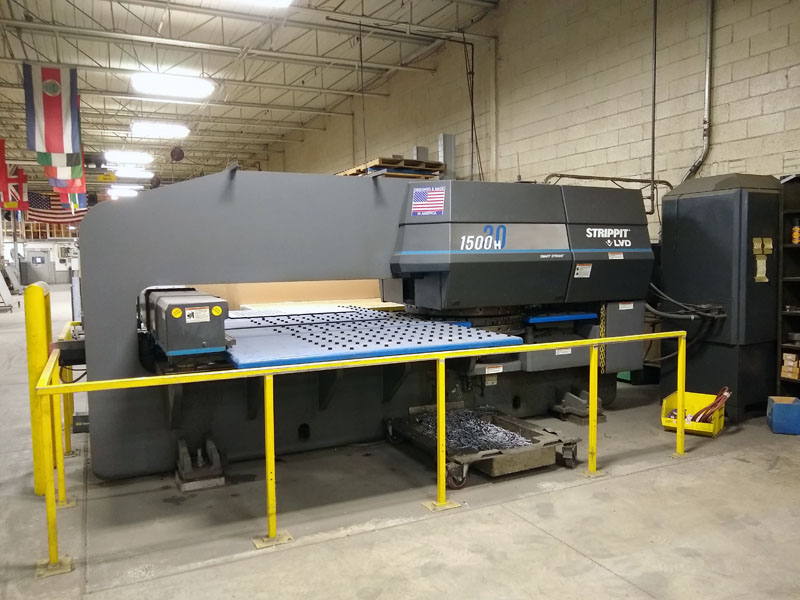

GENERAL INFORMATION

• Manufacturer: LVD Strippit

• Model: 1500H30

• Year: 2000

• Machine Type: Turret Punch Press

• Condition: Used

CAPACITY & PERFORMANCE

• Tonnage: 33 Tons

• Punching Speed: up to 900 hits/min (0.062″ centers)

• Accuracy: ±0.004″

TRAVEL & WORK ENVELOPE

• X-Axis Travel: 100.43″

• Y-Axis Travel: 63.75″

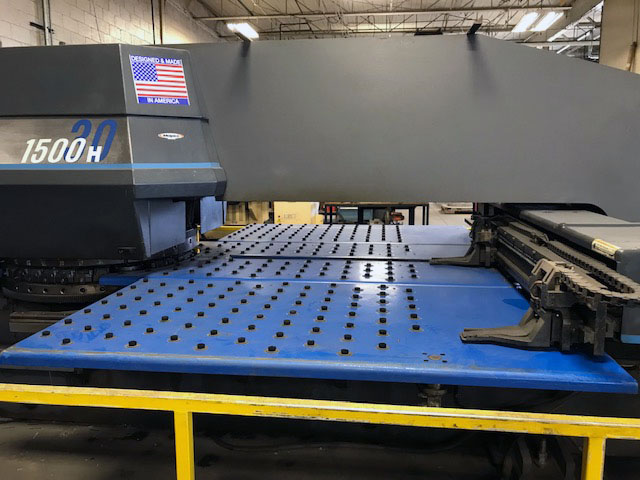

• Maximum Stock Size: 60″ x 99″

• Extended Stock Handling: up to 60″ x 144″ (Progressive Move)

TURRET SYSTEM

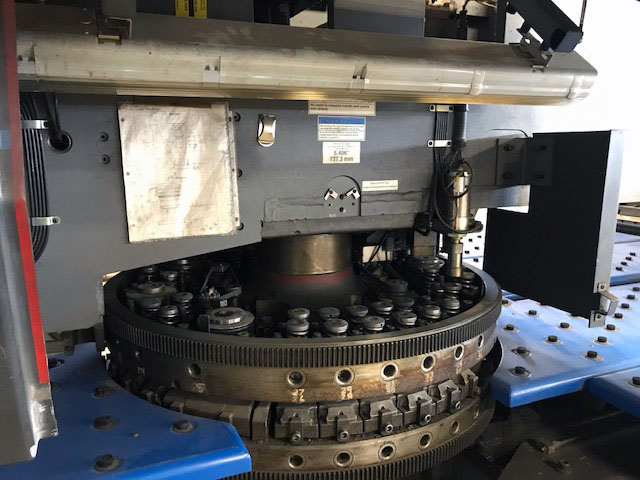

• 40-Station Thin-Style Turret

• Bi-directional turret drive

• Two (2) auto-index stations (3.5″)

• Index time: 1.0 second per station

CONTROL SYSTEM

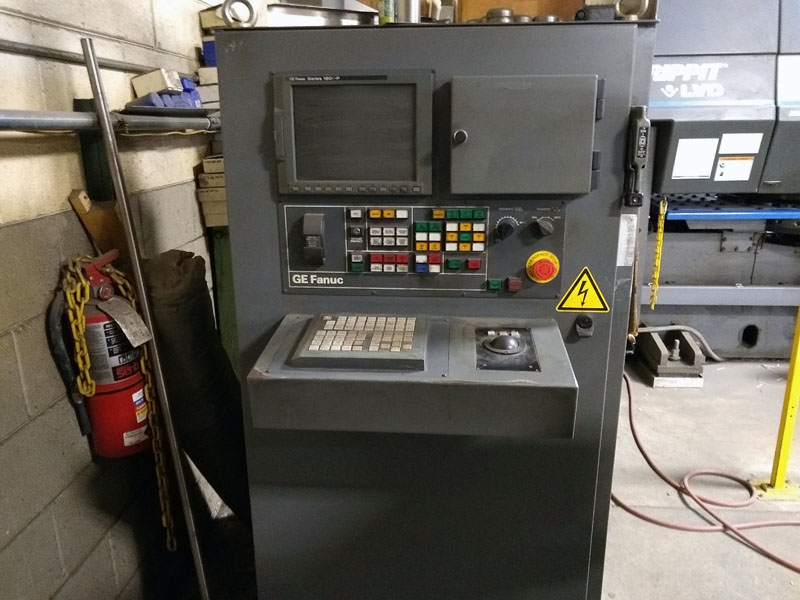

• GE Fanuc 180iP CNC Control

• Smart Stroke Technology (ram control optimization)

PRESS & DRIVE

• Hydraulic Press Drive: 30 HP

• “Smart Stroke” hydraulic system for optimized punching performance

MACHINE DIMENSIONS & WEIGHT

• Weight: 33,250 lbs

• Overall Length: 188.5″

• Overall Width: 187″ (doors closed)

• Overall Height: 96″

CAPABILITIES

• Max stock thickness: 0.312″

• Feed clearance: 0.866″

• Hole punching capacity:

– Up to 3.5″ diameter in 10 ga mild steel

– 1.625″ diameter in 0.250″ mild steel

FEATURES

✓ High-speed hydraulic turret punch press with Smart Stroke technology

✓ 40-station turret designed for thin-style tooling flexibility

✓ Large 60″ throat capacity for oversized sheet handling

✓ High punching speed for efficient production output

✓ Precision CNC control with GE Fanuc 180iP system

✓ Heavy-duty industrial construction for continuous operation

APPLICATIONS

• Sheet metal fabrication

• Electrical enclosures

• HVAC manufacturing

• Industrial panel production

• High-volume punching operations

• General fabrication shops
