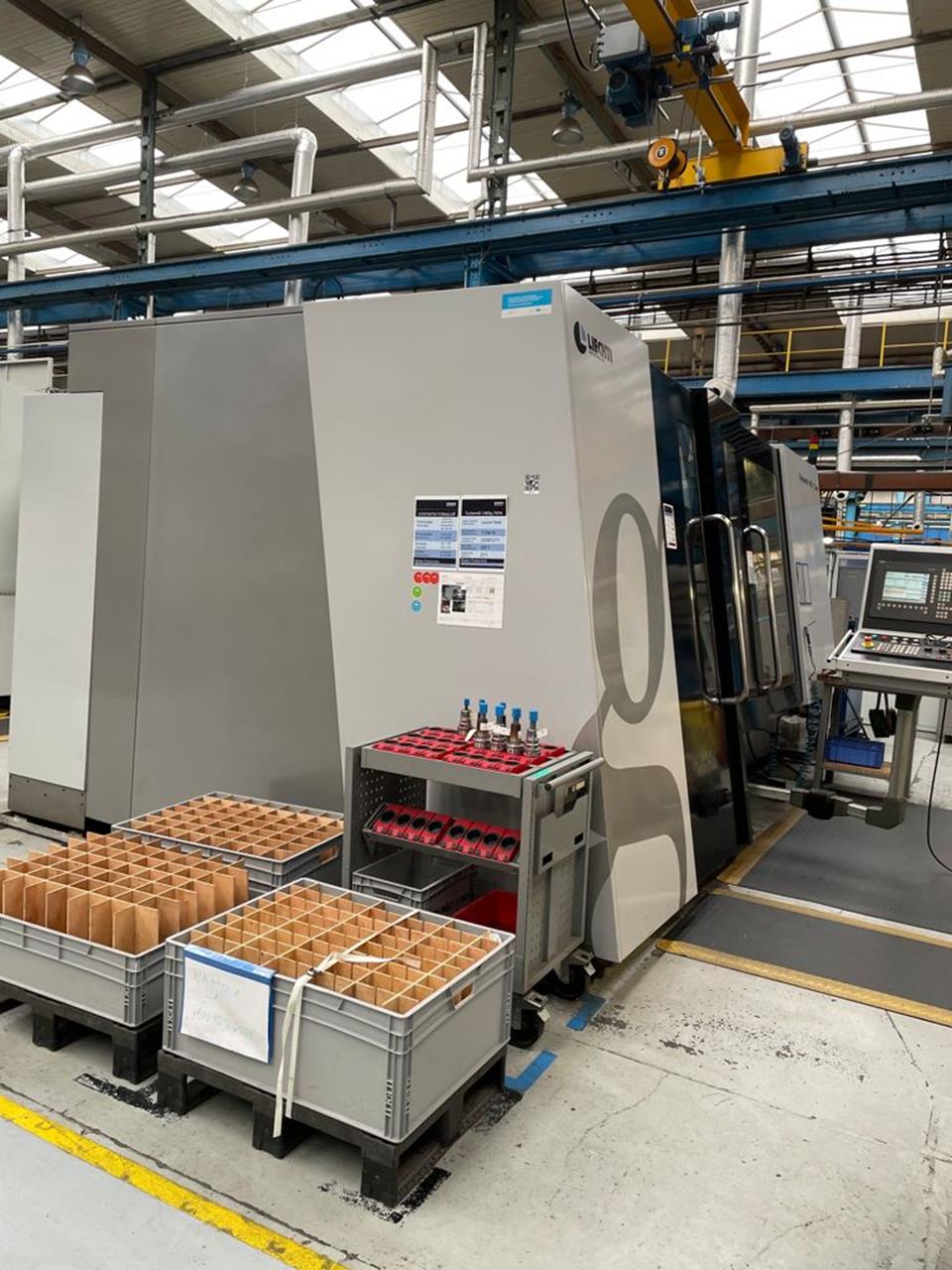

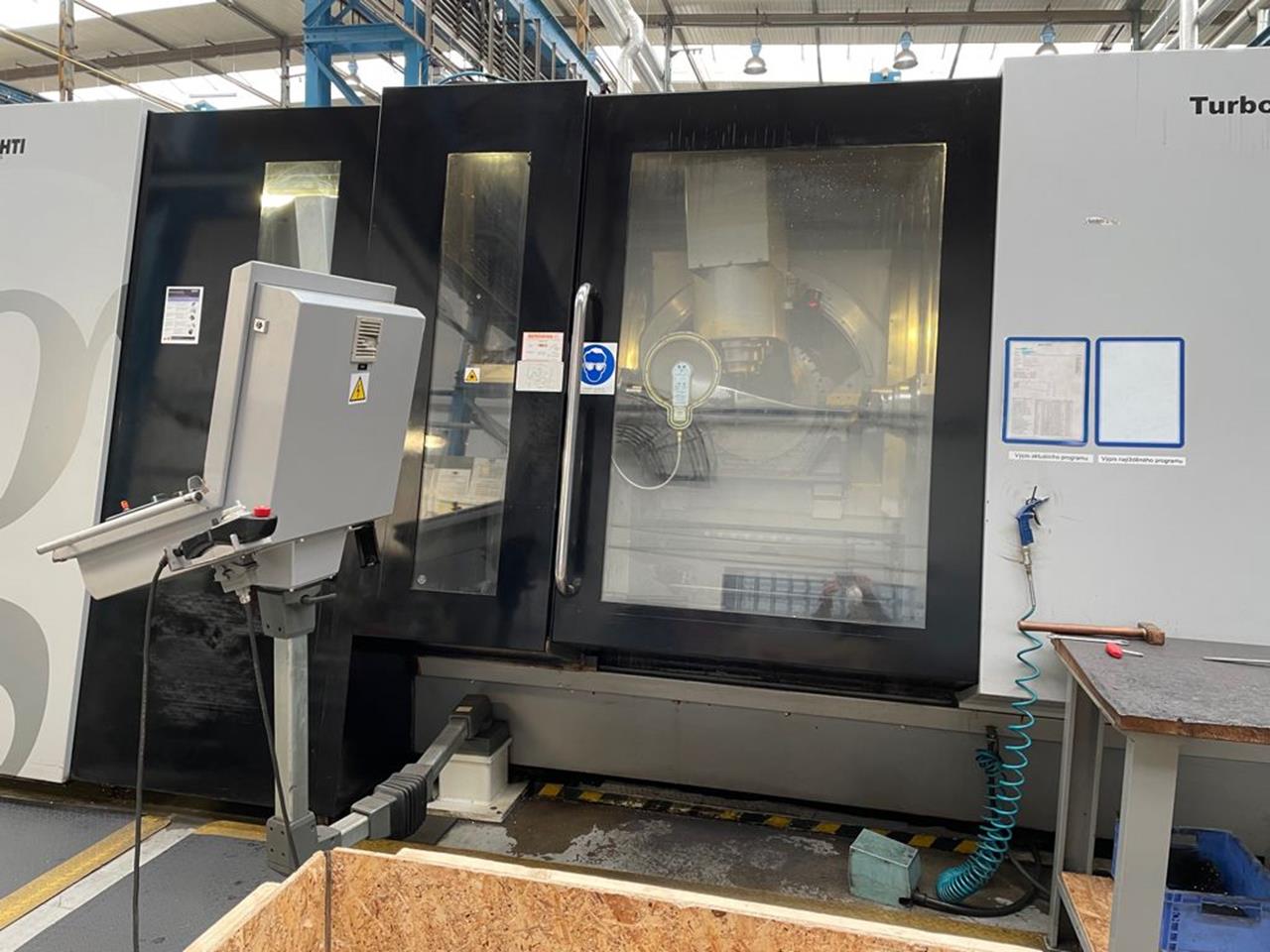

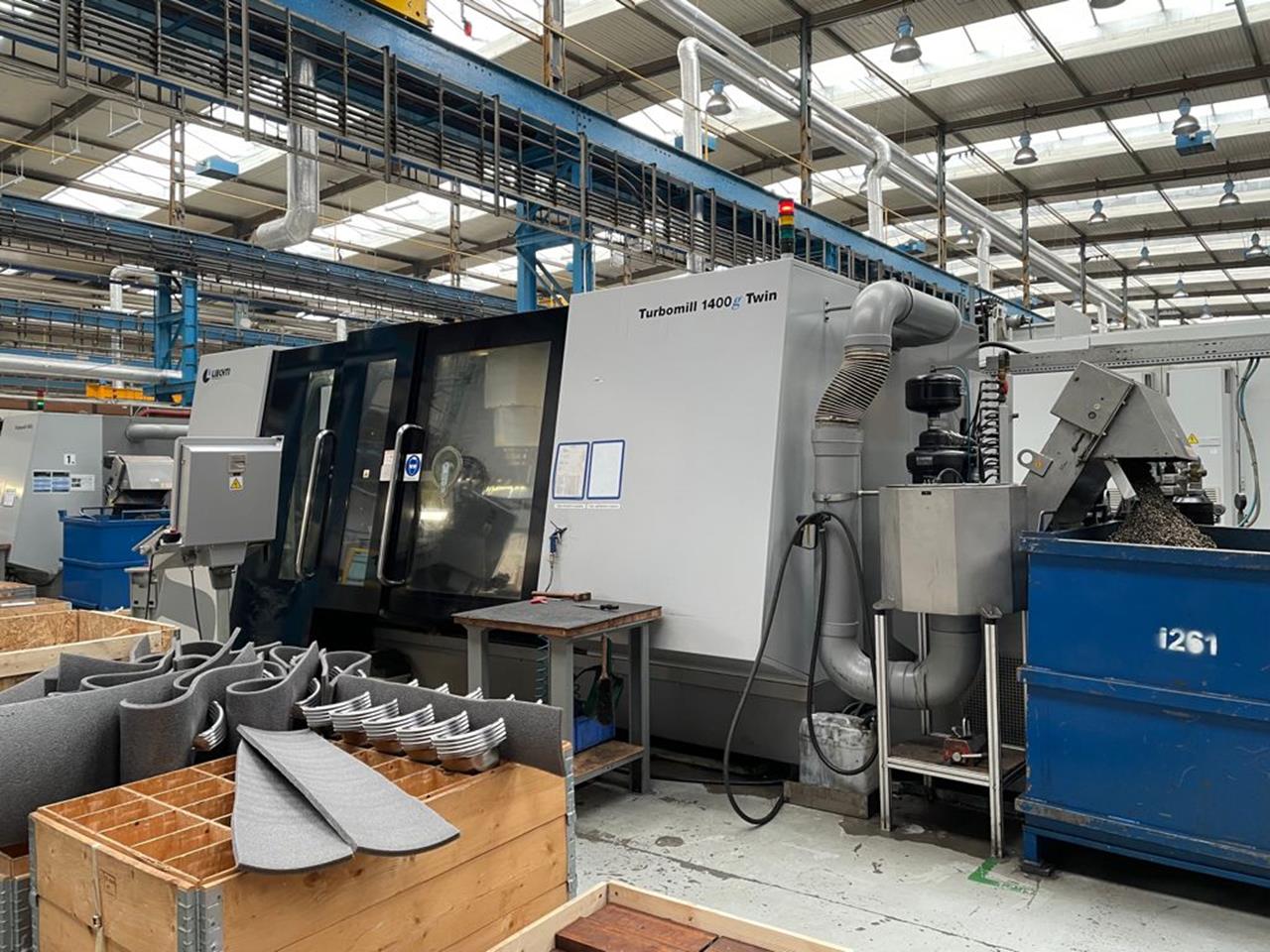

GENERAL INFORMATION

• Manufacturer: Liechti

• Model: Turbomill 1400G Twin

• Year: 2010

• Machine Type: Double-Spindle 5-Axis CNC Milling Machine

• Condition: Used

CONTROL SYSTEM

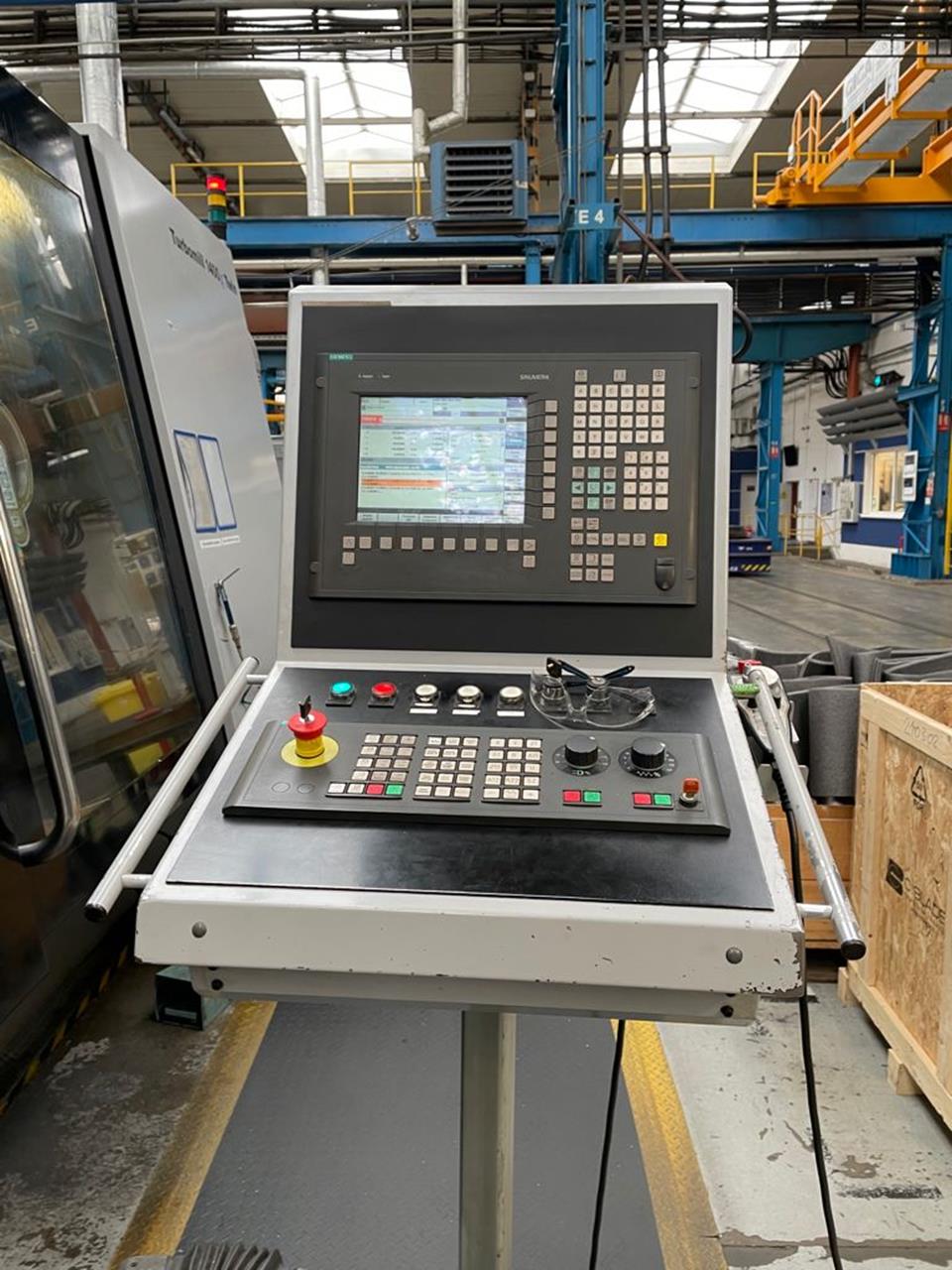

• Siemens Sinumerik 840D CNC Control

AXES & TRAVELS

• Number of Simultaneous Axes: 5

• X-Axis Travel: 1,980 mm

• Y-Axis Travel: 450 mm

• Z-Axis Travel: 400 mm

SPINDLES

• Double Vertical Spindle Configuration

• Maximum Spindle Speed: 20,000 RPM

• Spindle Taper: HSK-A63

FEED RATES

• X-Axis Rapid Feed: 50 m/min

• Y-Axis Rapid Feed: 50 m/min

• Z-Axis Rapid Feed: 50 m/min

• A-Axis Feed Rate: 200°/min

• B-Axis Feed Rate: 50°/min

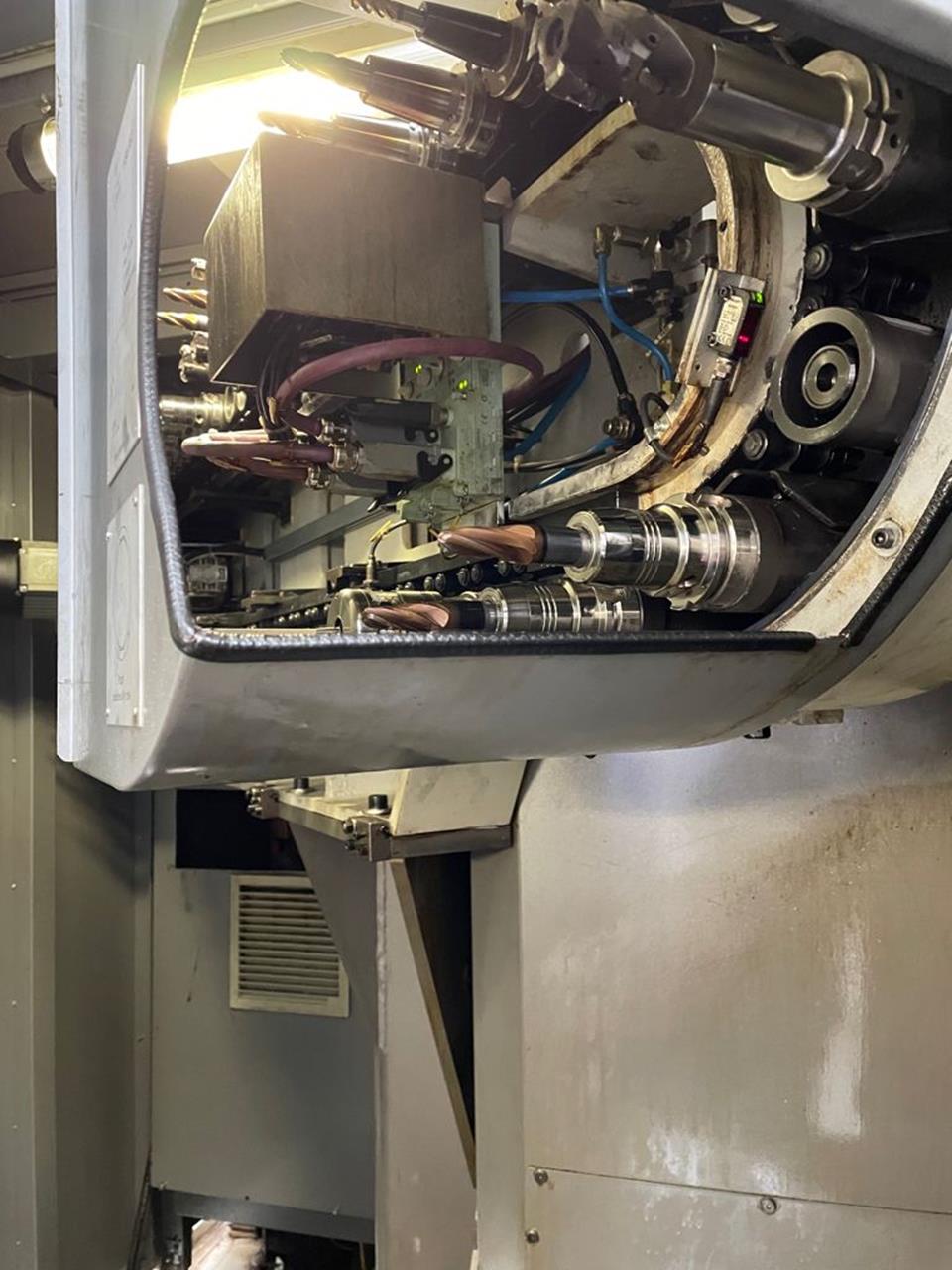

TOOLING

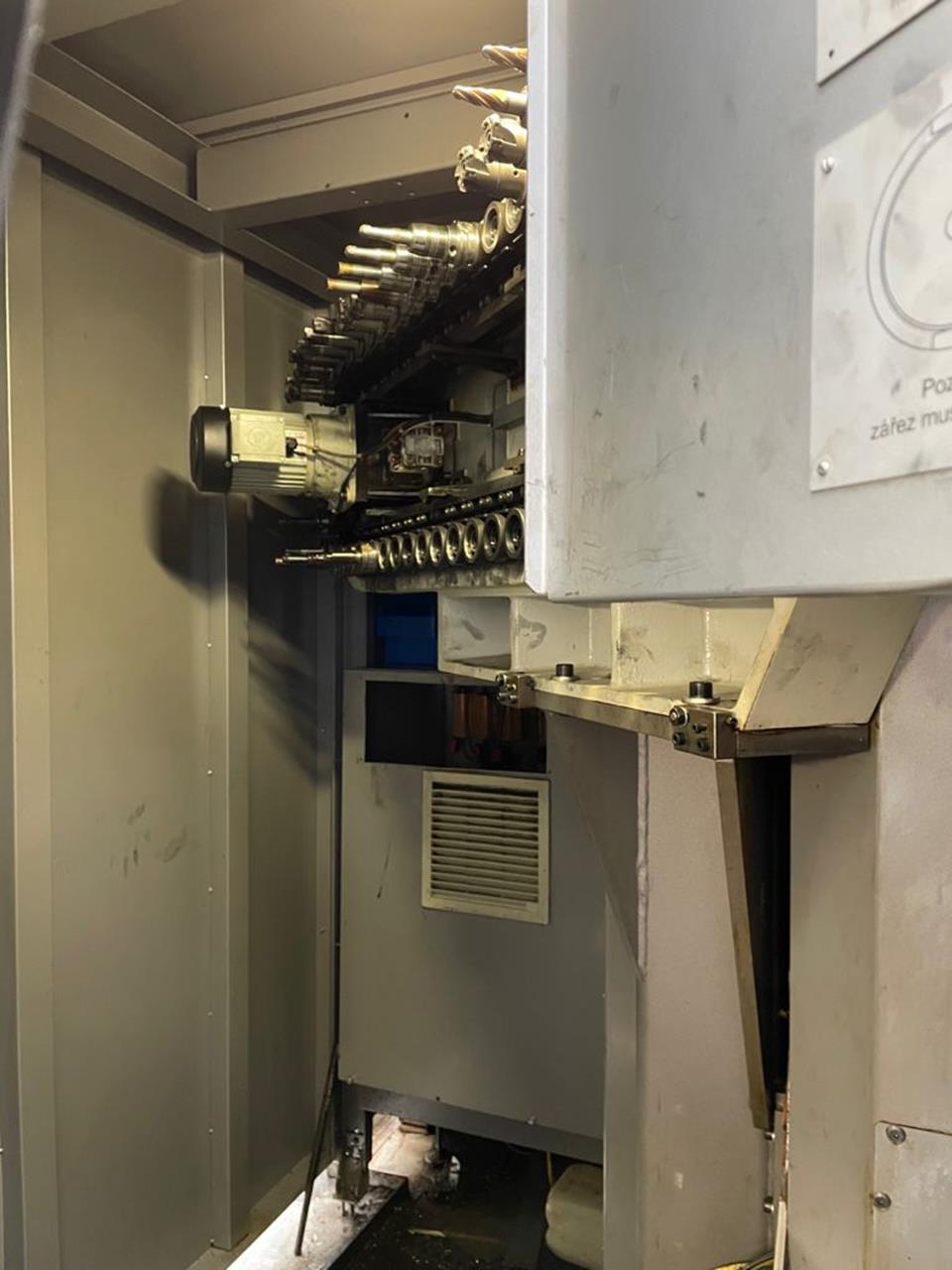

• Automatic Tool Changer Capacity: 32 Tools

• Maximum Tool Diameter: 75 – 150 mm

• Maximum Tool Length: 290 mm

• Maximum Tool Weight: 6 kg

MACHINE DIMENSIONS & WEIGHT

• Approximate Machine Weight: 22,000 kg

FEATURES

✓ High-performance twin-spindle 5-axis machining center

✓ Siemens Sinumerik 840D CNC control for advanced multi-axis machining

✓ Dual 20,000 RPM spindles maximize productivity and throughput

✓ Simultaneous 5-axis capability for complex precision components

✓ HSK-A63 spindle interface for high-speed machining

✓ 32-position automatic tool changer supports unattended production

✓ Heavy-duty machine construction provides exceptional rigidity and accuracy

✓ Designed for demanding aerospace and turbine component manufacturing

APPLICATIONS

• Aerospace components

• Turbine blade machining

• Blisks and impellers

• Power generation components

• Precision 5-axis milling

• High-performance industrial machining

• Complex contour machining
