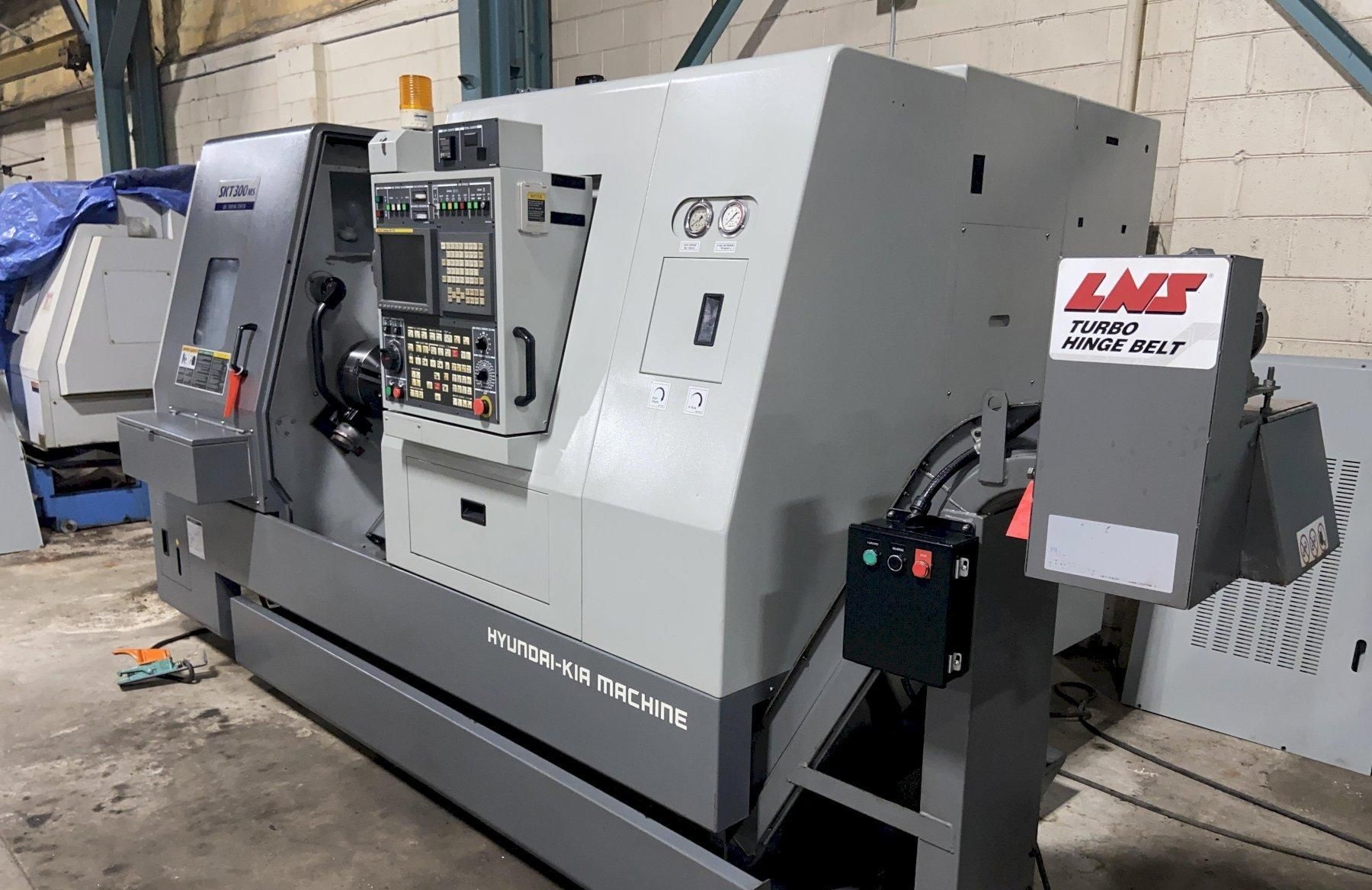

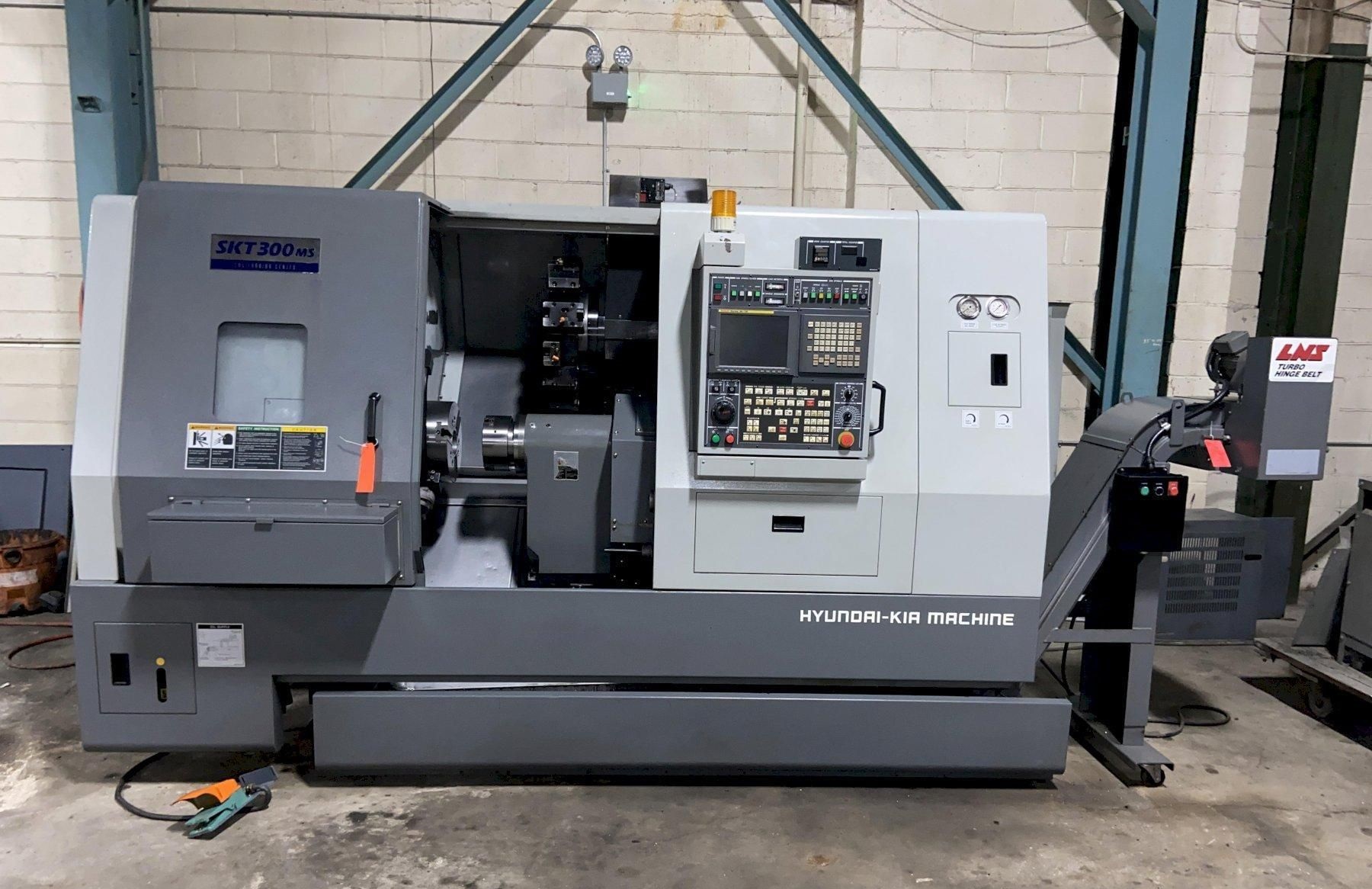

GENERAL INFORMATION

• Manufacturer: Hyundai Kia
• Model: SKT-300MS
• Year: 2007
• Machine Type: CNC Turning Center with Live Milling
• Number of Axes: 5
• CNC Control: Fanuc 18iT
• Condition: Used

SPECIFICATIONS

TURNING CAPACITY

• Maximum Swing: 29.5″
• Maximum Turning Diameter: 19.7″
• Center Distance: 26.8″
• Main Chuck Size: 12″
• Sub-Spindle Chuck Size: 8″

MAIN SPINDLE

• Spindle Speed: 3,000 RPM
• Spindle Nose: A2-8
• Main Motor Power: 30 HP
• Bar Capacity: 3.5″

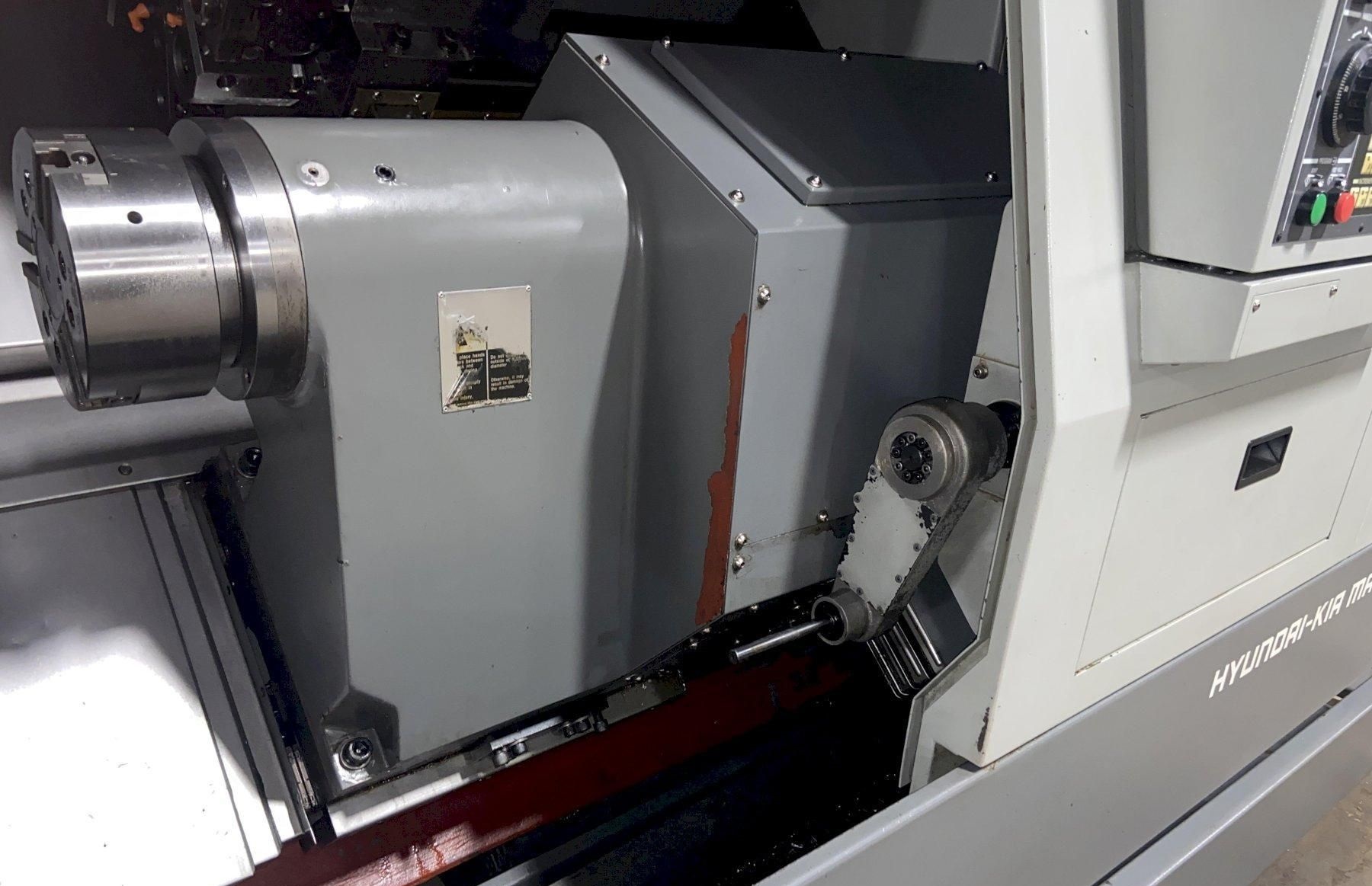

SUB-SPINDLE

• Sub-Spindle Speed: 4,000 RPM
• Sub-Spindle Bar Capacity: 2.5″

LIVE TOOLING / MILLING

• Live Milling Capability: Yes
• Live Milling Speed: 4,000 RPM
• Live Milling Motor: 7 HP
• C-Axis: Yes

AXIS SPECIFICATIONS

• X-Axis Rapid Feed Rate: 787 IPM
• Z-Axis Rapid Feed Rate: 945 IPM

EQUIPPED WITH

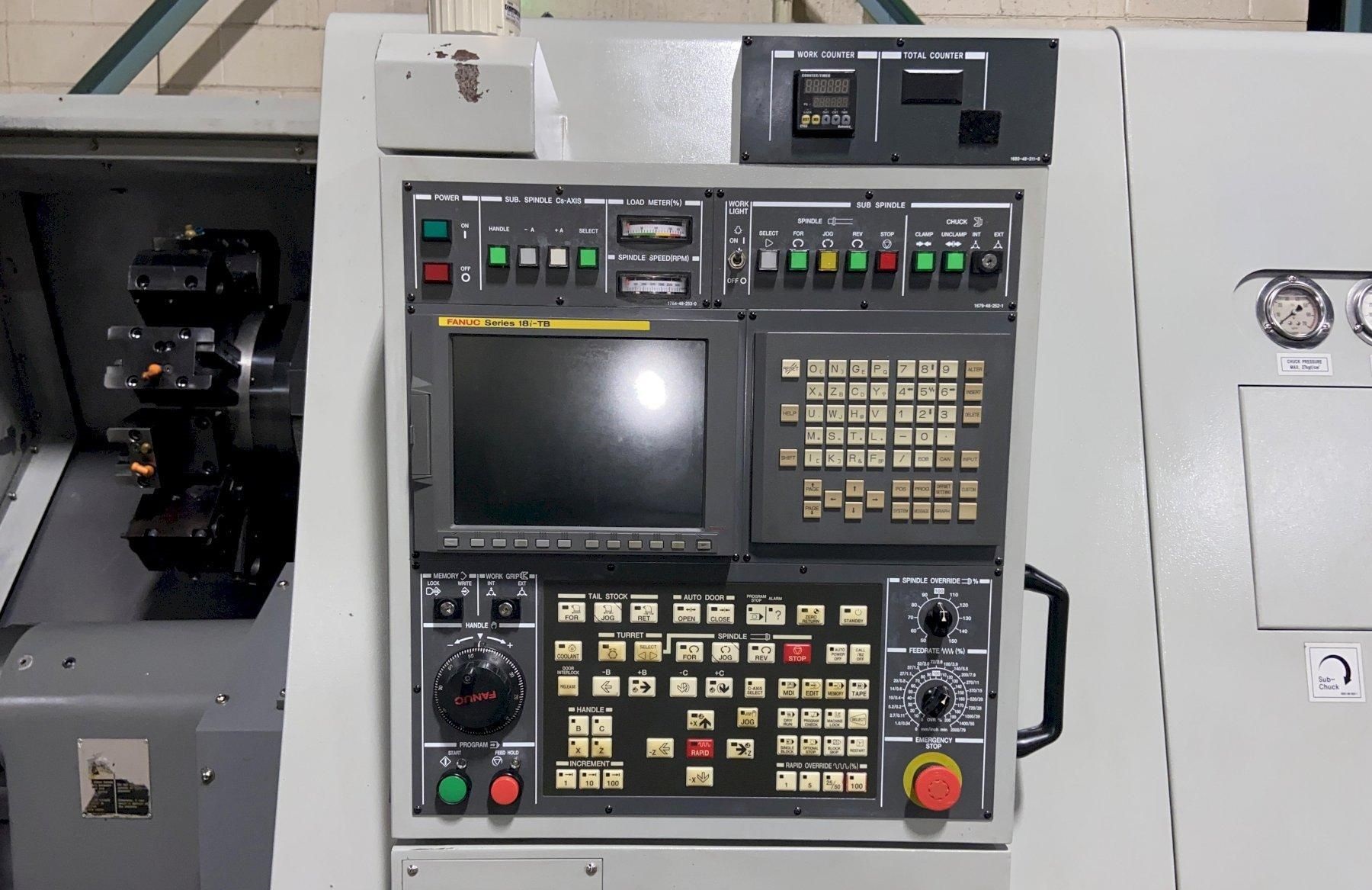

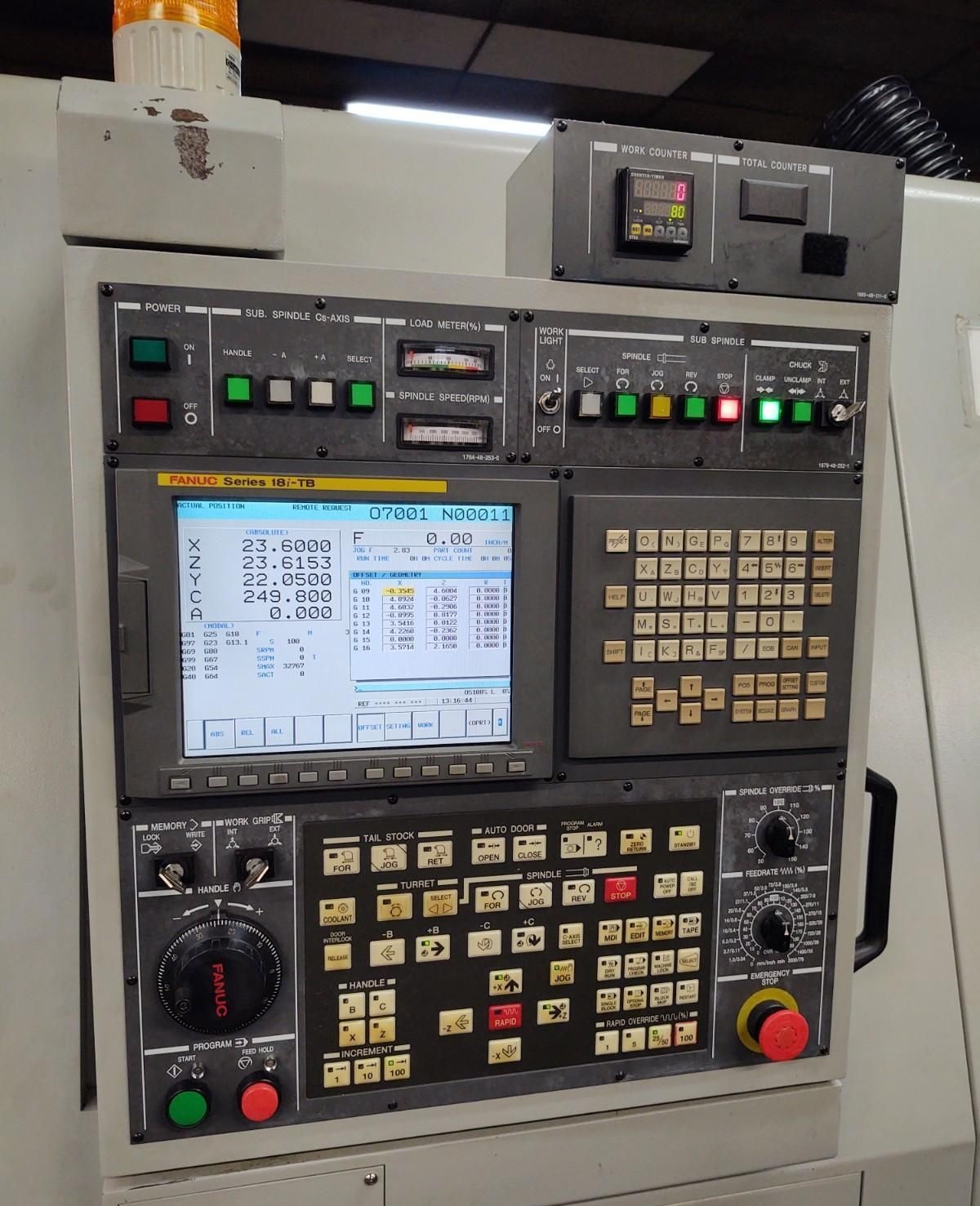

• Fanuc 18iT CNC Control
• Live Milling System
• C-Axis Control
• Probe
• Chip Conveyor
• Parts Catcher

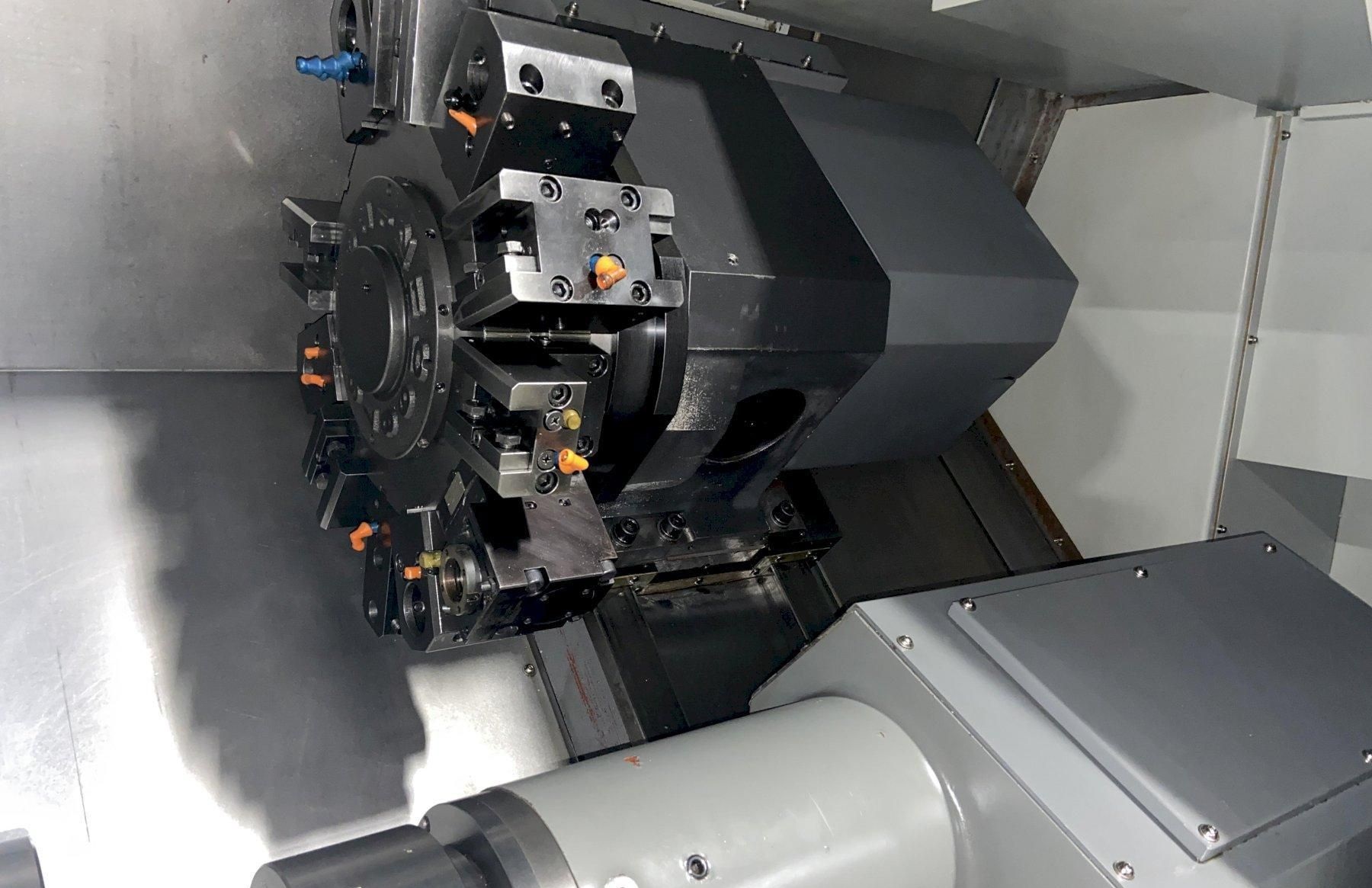

• (1) 90° Live Tool Holder

FEATURES

✓ 5-axis CNC turning center with milling capability

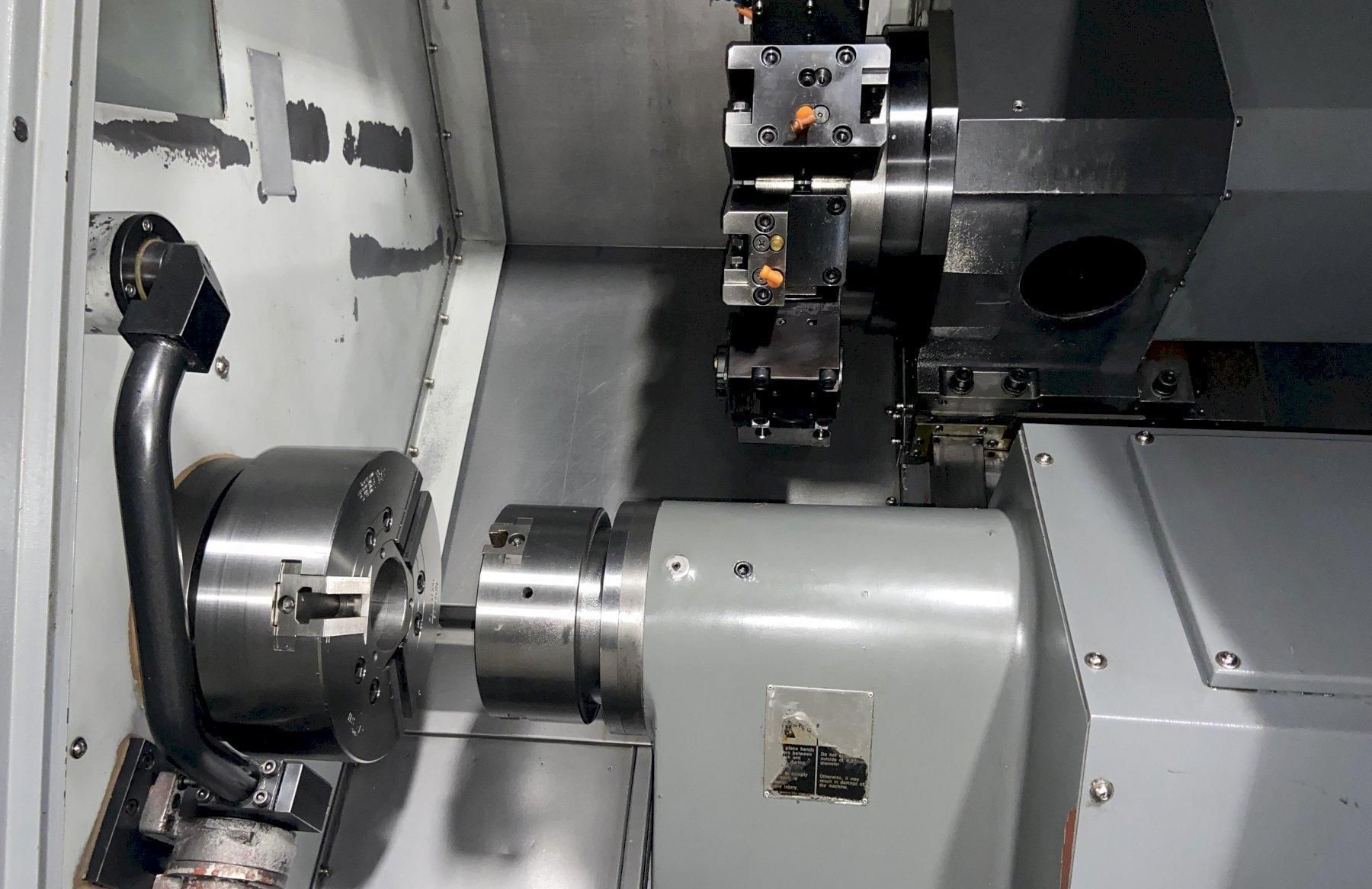

✓ Dual spindle configuration for complete part machining

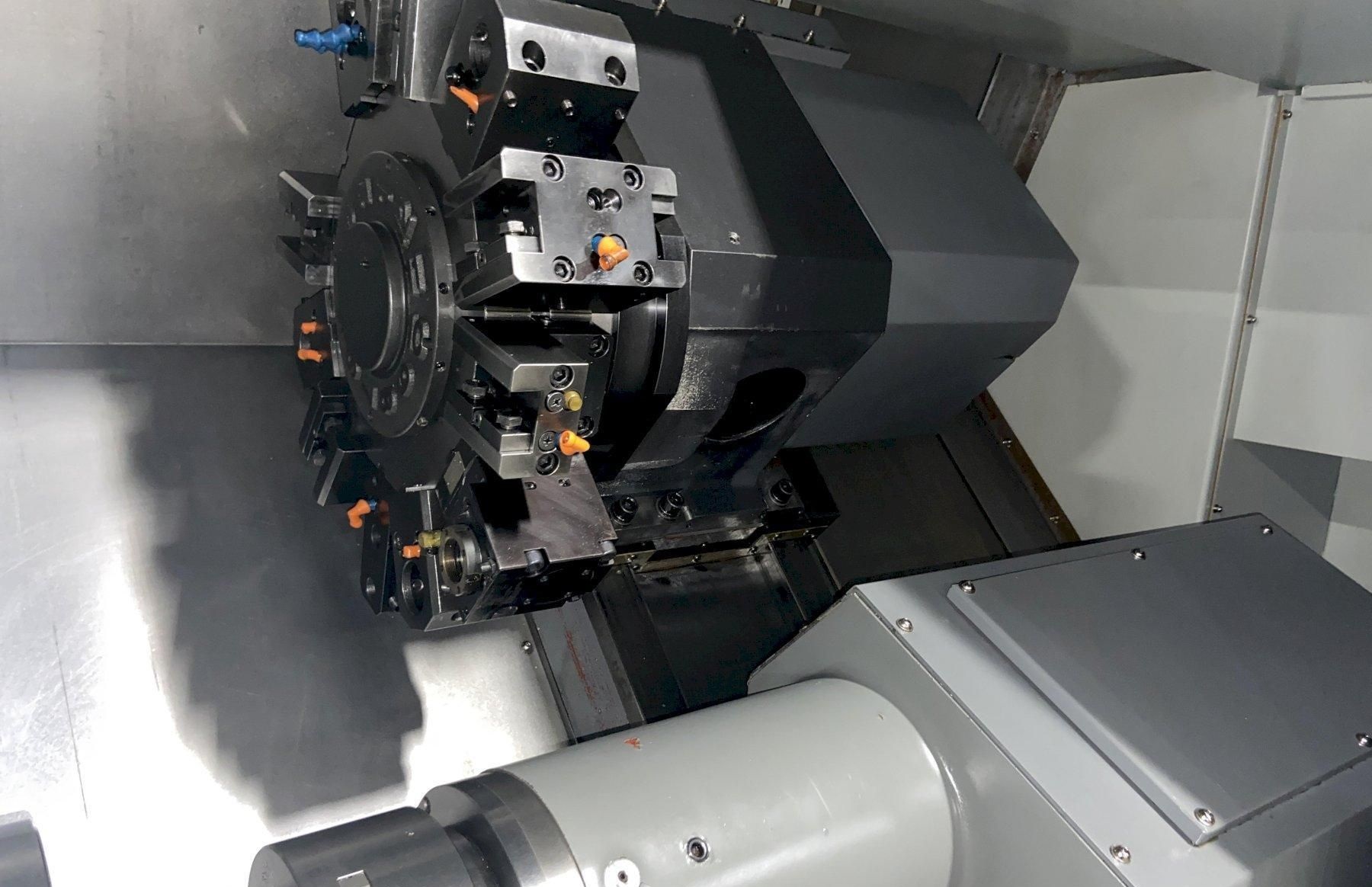

✓ Live tooling for milling, drilling, and secondary operations
✓ C-axis capability for complex machining
✓ Large 12″ main chuck and 8″ sub-spindle chuck
✓ 30 HP main spindle motor for powerful cutting performance
✓ 3.5″ bar capacity for larger diameter components
✓ Fanuc 18iT control for reliable CNC operation
✓ Equipped with chip conveyor and parts catcher for production use

APPLICATIONS

• Automotive Components
• Oil & Gas Parts
• Aerospace Components
• Precision Shafts
• Hydraulic Components
• General CNC Production
• Complex Turn-Mill Parts
• High-Mix Manufacturing
