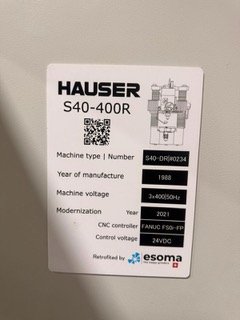

GENERAL INFORMATION

• Manufacturer: HAUSER

• Model: S40-400R

• Year: 1988

• Machine Type: CNC Jig Grinding Machine

• Condition: Fully Refurbished (2021 upgrade)

REFURBISHMENT DETAILS (2021)

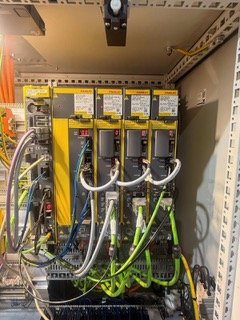

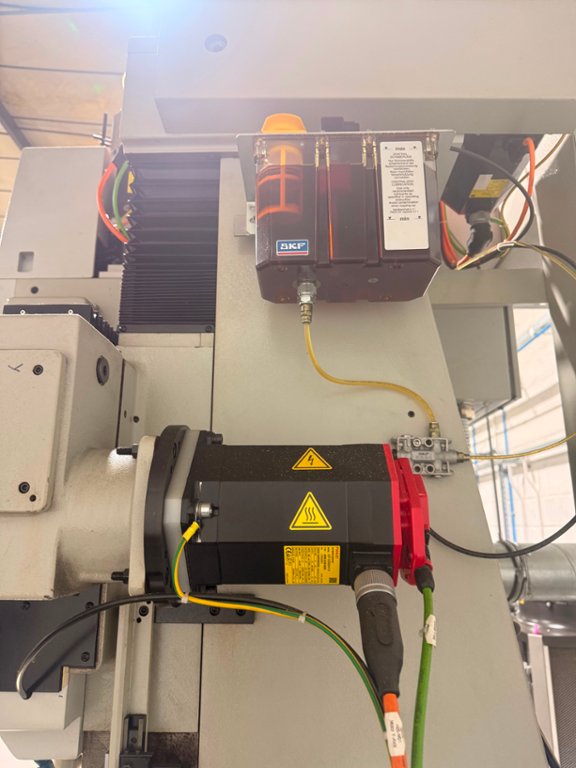

• New motors and drives installed

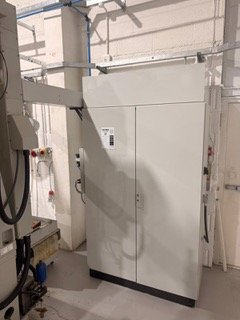

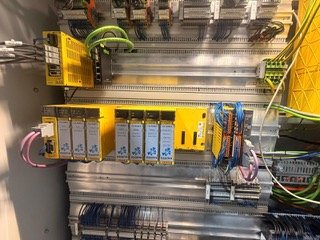

• New electrical cabinet

• Upgraded CNC system with FANUC 0i-MF PLUS controller

• Modernized automation and control systems

SPECIFICATIONS

• Table Travel (X / Y): 650 x 450 mm

• CNC Axes: 6 (X, Y, Z, C, U, W)

• Linear Scale Resolution: 12.5 nm (X, Y, Z axes)

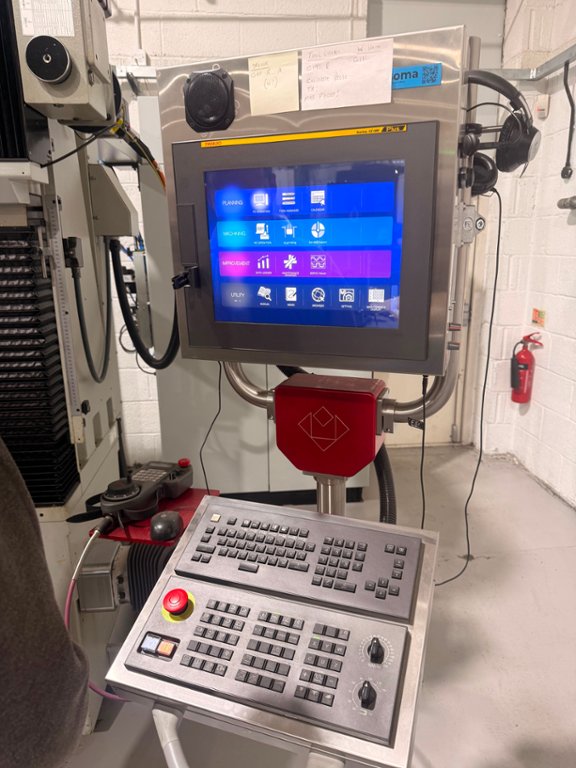

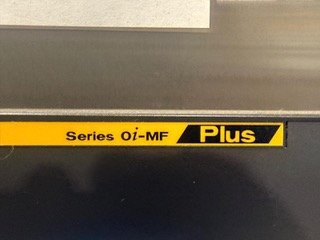

• Control System: GE-FANUC 0i-MF PLUS

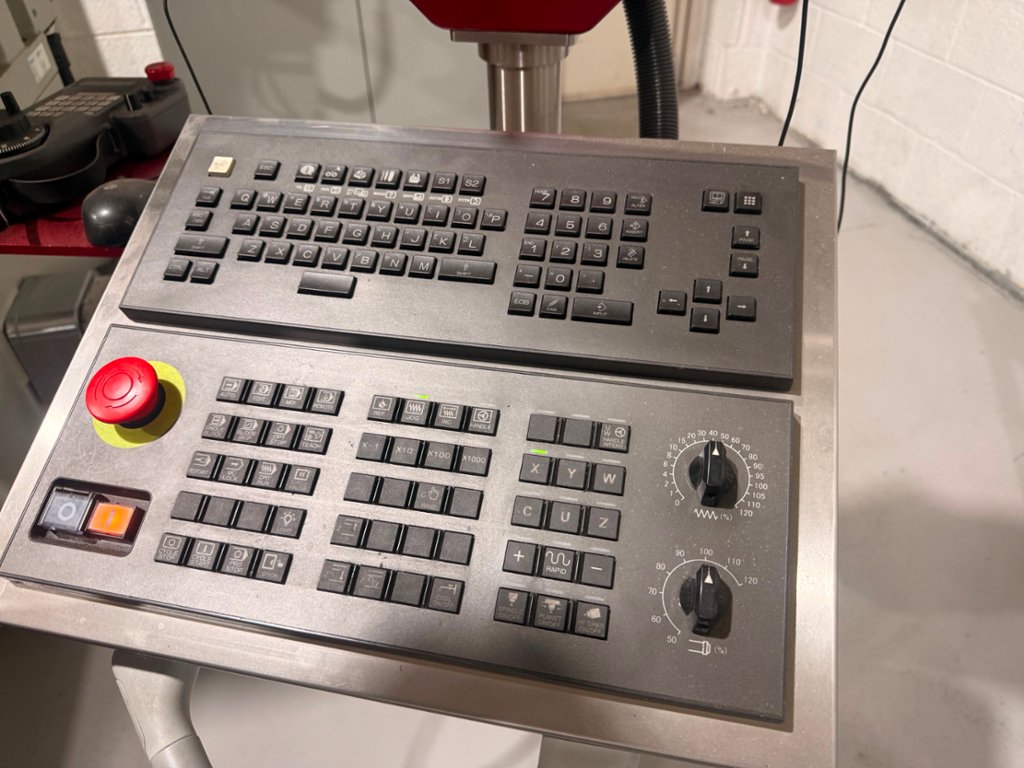

• Touchscreen Interface: 15″

CONTROL & AUTOMATION FEATURES

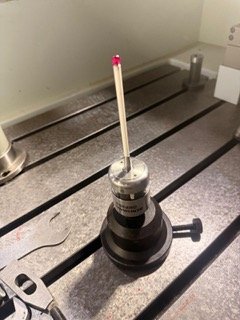

• Renishaw probing system included

• Automatic best-fit function for component positioning

• Supports up to 6 components in best-fit cycle

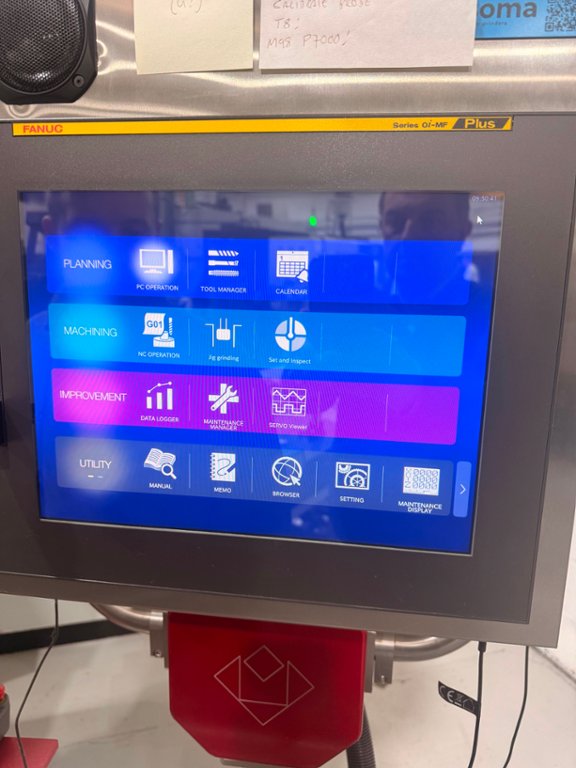

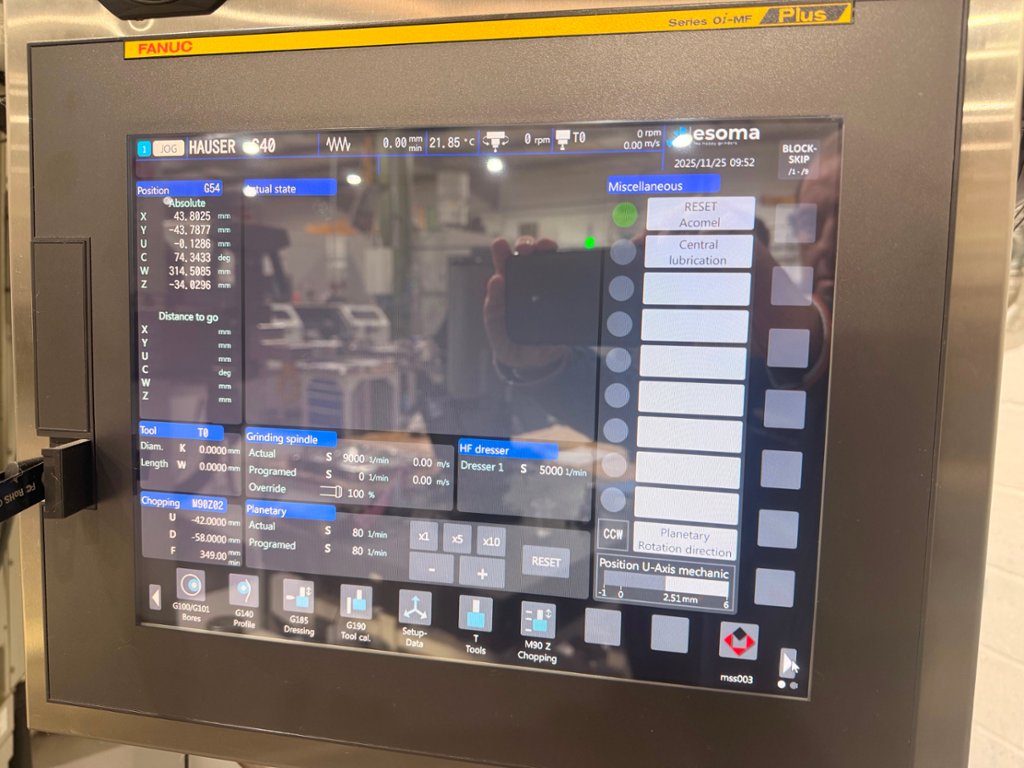

• Jig grinding HMI software with cycles and tool management

• Tool length compensation via W-axis

• Temperature compensation with room monitoring display

EQUIPPED WITH

• Renishaw probing system

• CBN dressing attachment with diamond wheel

• Coolant system with paper band filtration unit

• Pneumatic system (new components installed)

• Elaso sensor system for gap/contact detection

• Automatic tool calibration function

• Coolant tank and integrated coolant lines

FEATURES

✓ Ultra-precision jig grinding machine for high-tolerance applications

✓ Fully refurbished CNC system with modern FANUC controller

✓ Nanometer-level scale resolution for extreme accuracy work

✓ Advanced probing and automatic positioning system

✓ Thermal compensation for stable long-duration machining

✓ Complete grinding package with dressing and filtration system

APPLICATIONS

• Precision jig grinding operations

• Tool & die manufacturing

• Aerospace component finishing

• High-accuracy mold production

• Ultra-precision machining applications

• Metrology-grade grinding and finishing work

CONDITION

The machine was fully refurbished in 2021 and upgraded with modern CNC control, electrical systems, and mechanical components.

It is in excellent working condition for precision industrial use.
