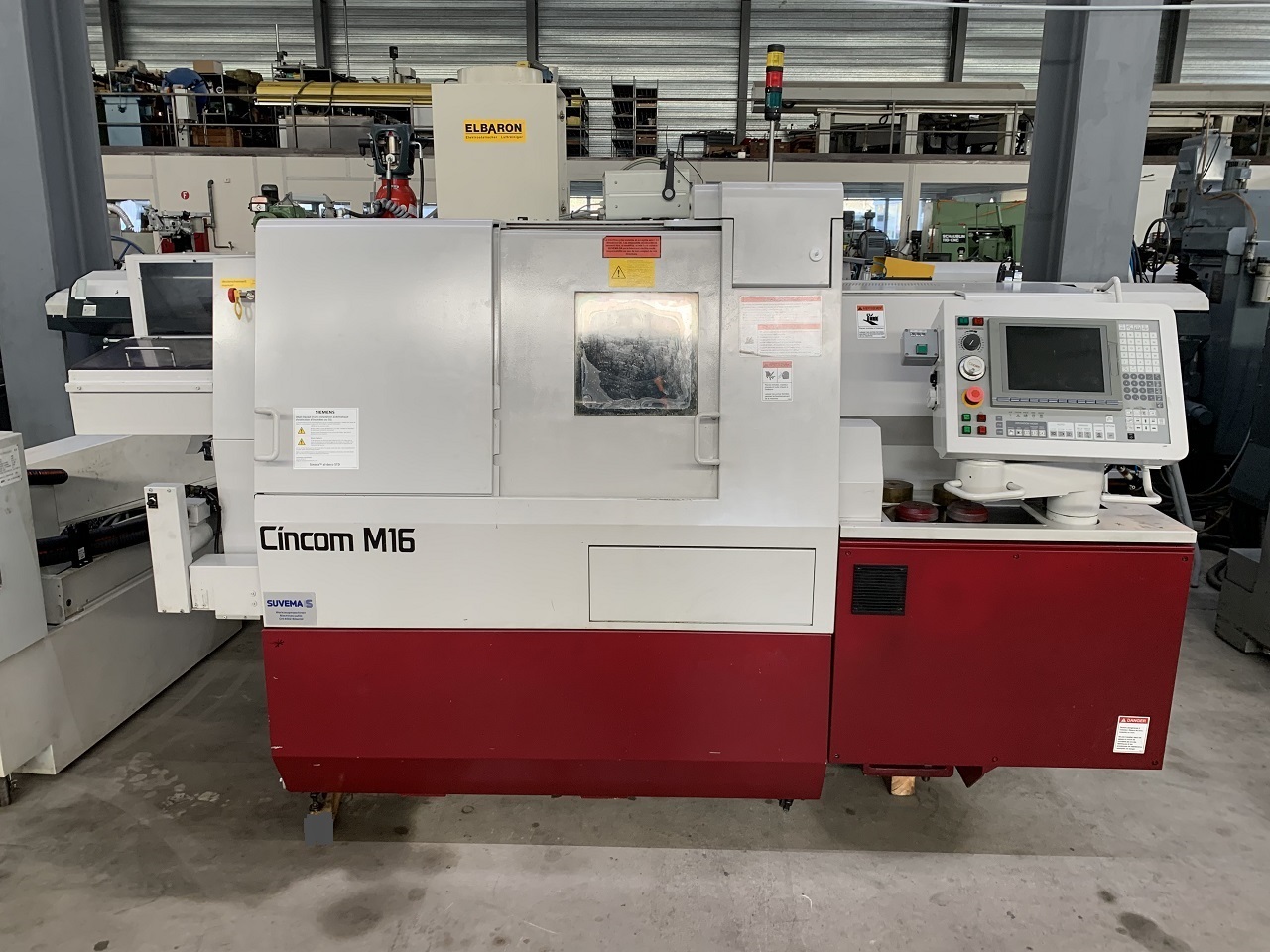

GENERAL INFORMATION

• Manufacturer: Citizen

• Model: Cincom M16-III

• Year: 2005

• Machine Type: CNC Swiss Type Sliding Headstock Lathe

• Manufacturing Origin: Japan

• Condition: Used

• Voltage: 400 V

• Approximate Weight: 2,400 kg

• Machine Dimensions: 2450 x 1320 x 1700 mm

SPECIFICATIONS

MAIN SPINDLE

• Maximum Machining Diameter: Ø16 mm

• Maximum Turning Length Without Re-Chucking: 200 mm

• Through-Hole Diameter: Ø20 mm

• Maximum Spindle Speed: 10,000 RPM

• Indexing Accuracy: 0.001°

• Spindle Drive Power: 2.2 kW

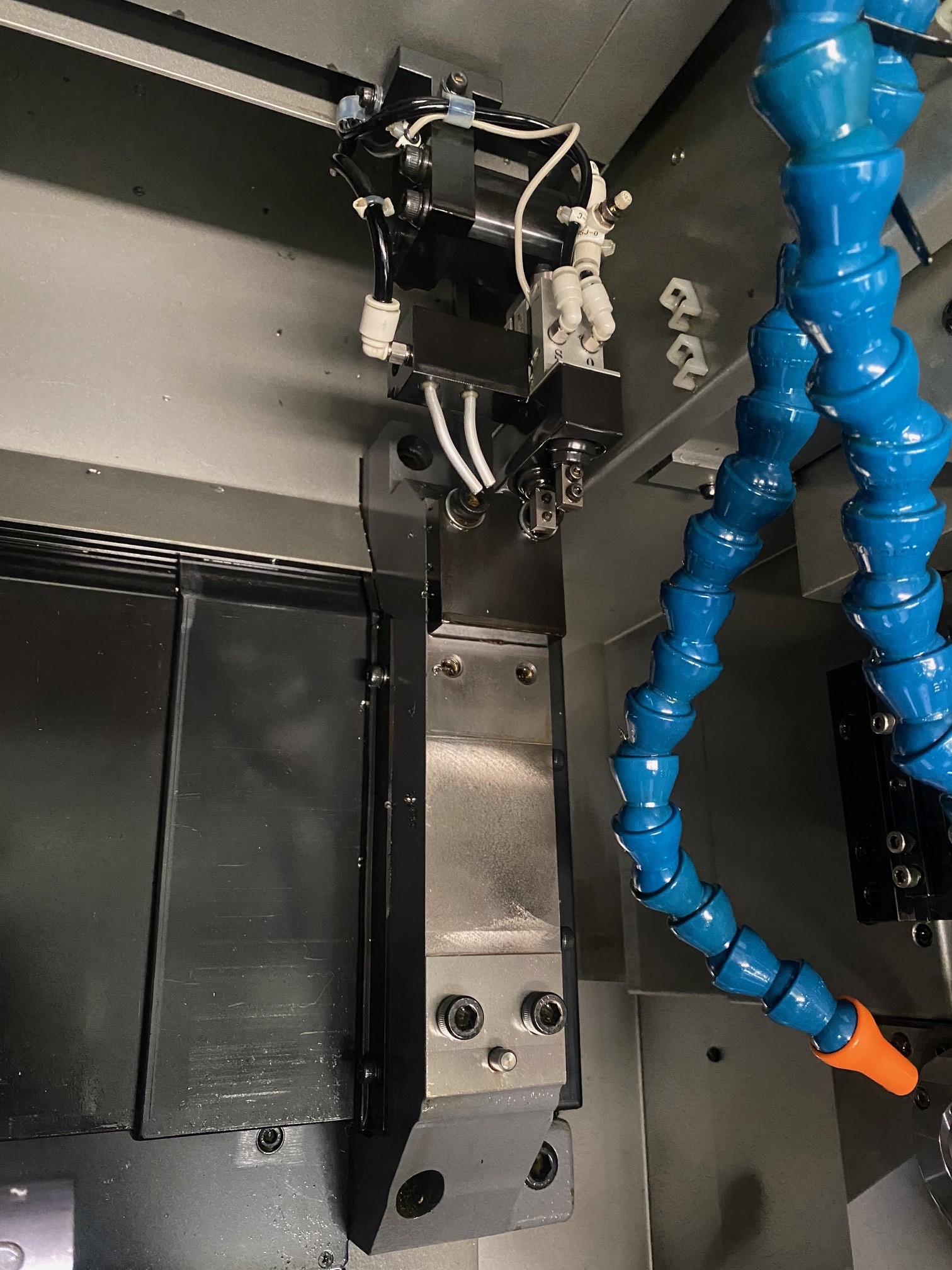

SUB-SPINDLE

• Maximum Machining Diameter: Ø16 mm

• Maximum Spindle Speed: 10,000 RPM

• Indexing Accuracy: 0.001°

• Sub-Spindle Drive Power: 0.75 kW

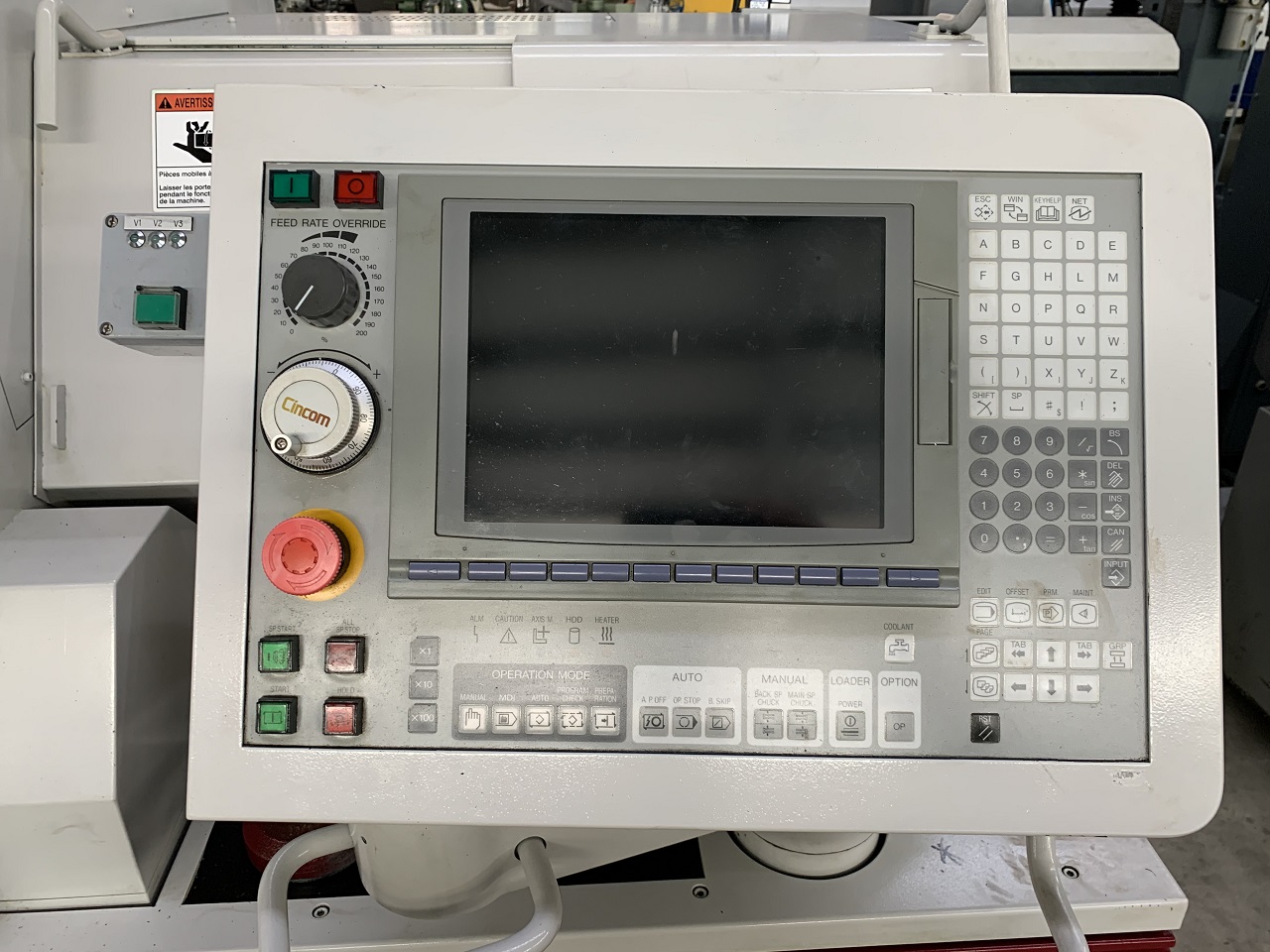

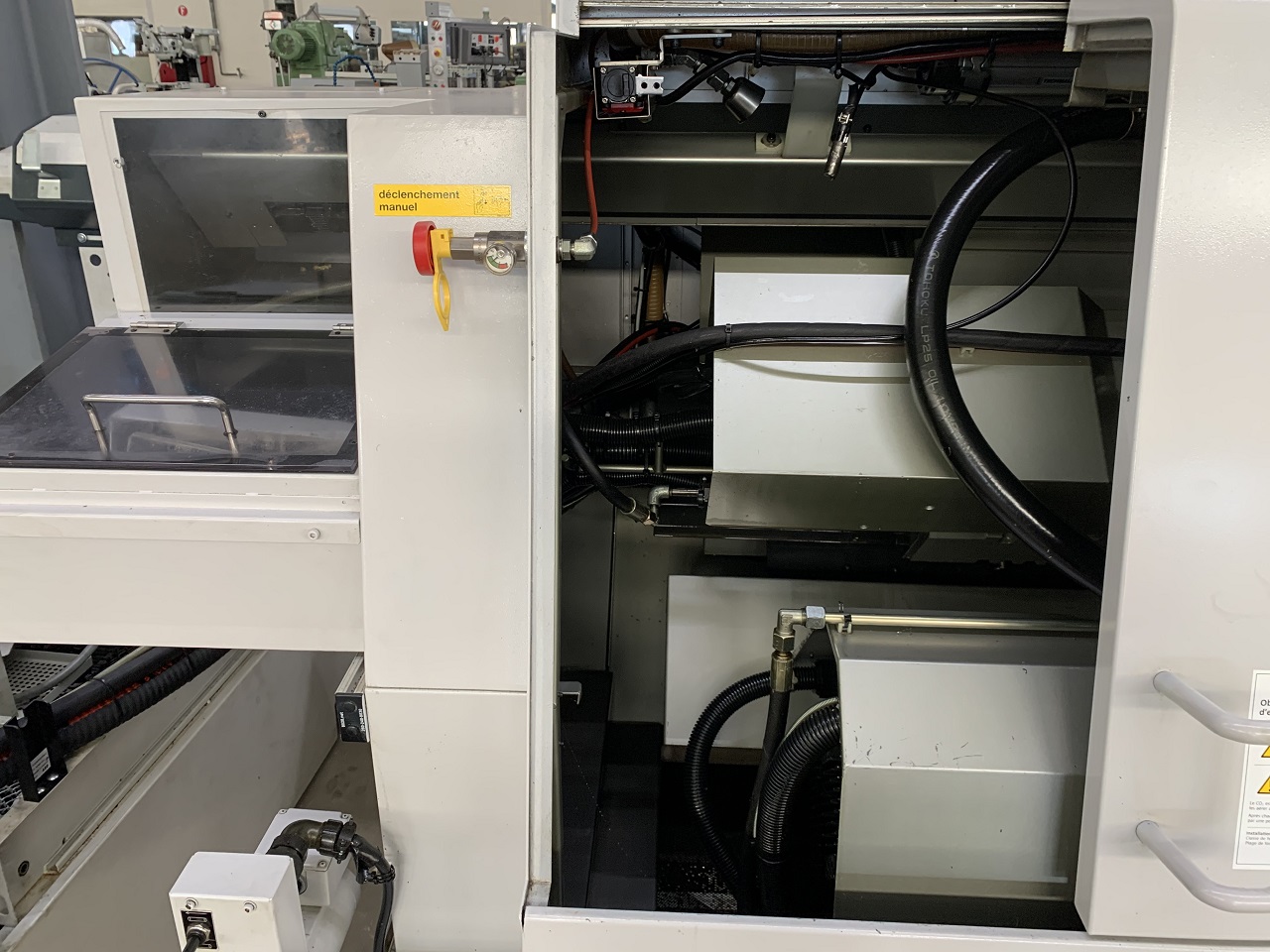

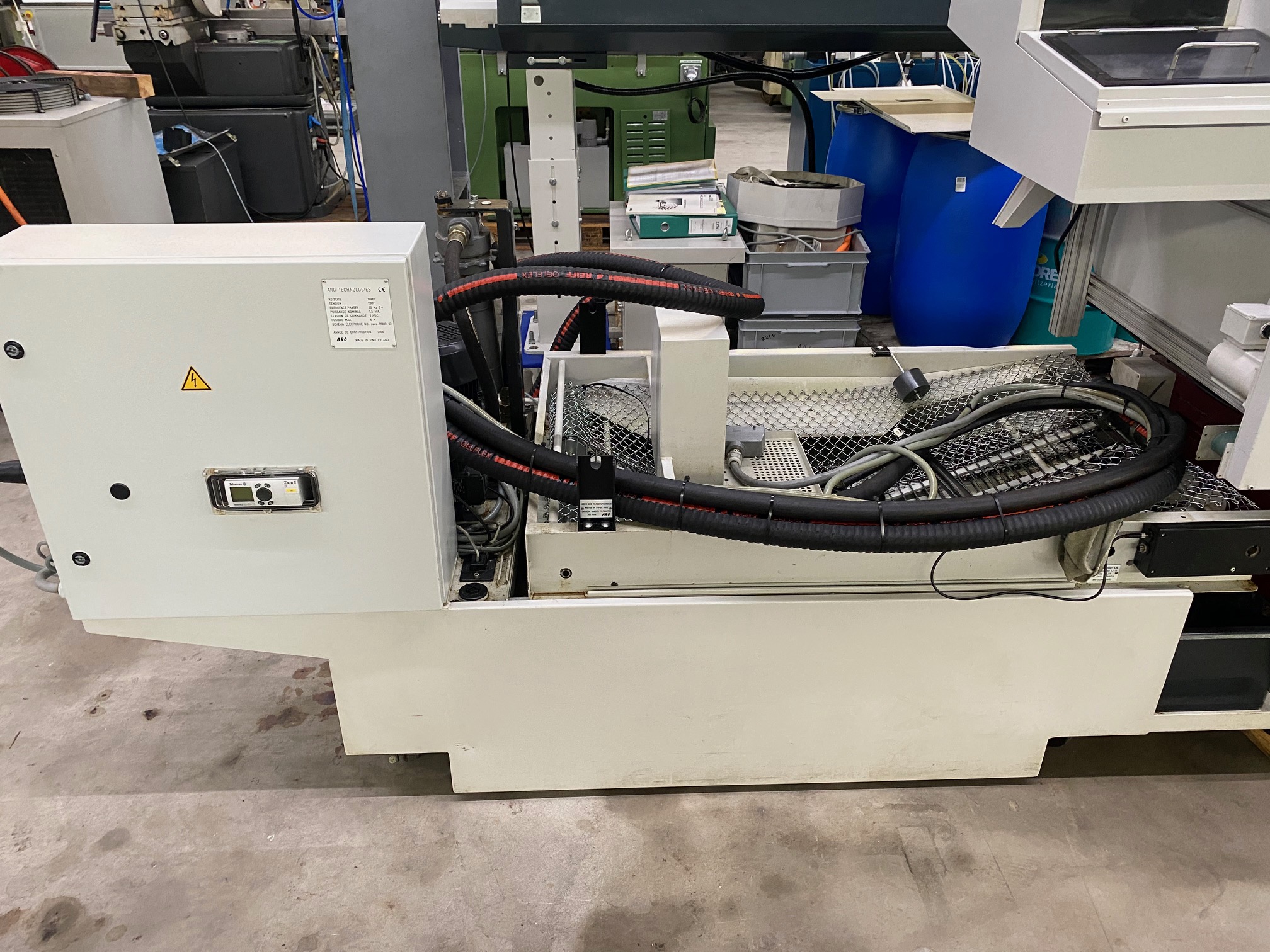

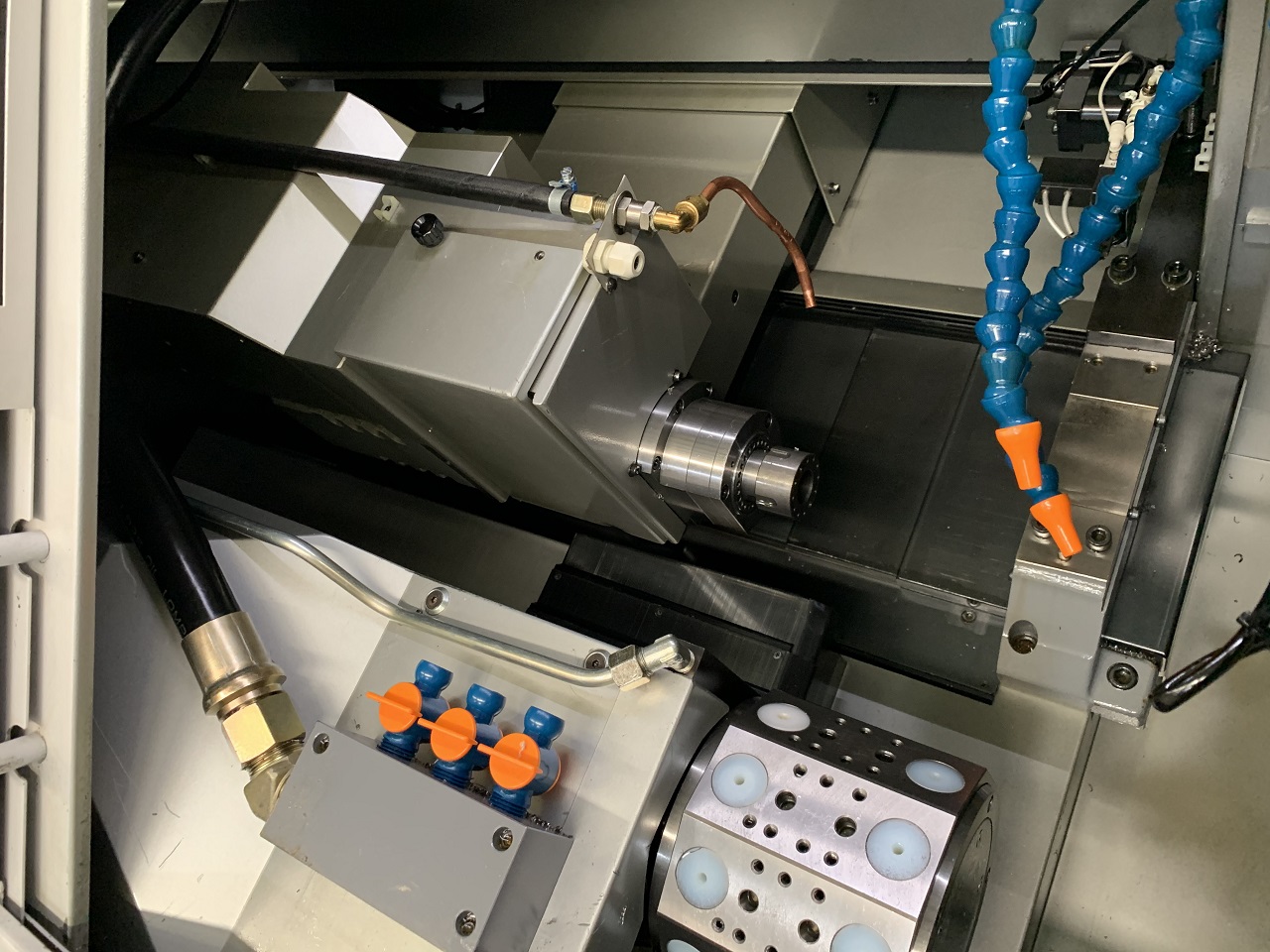

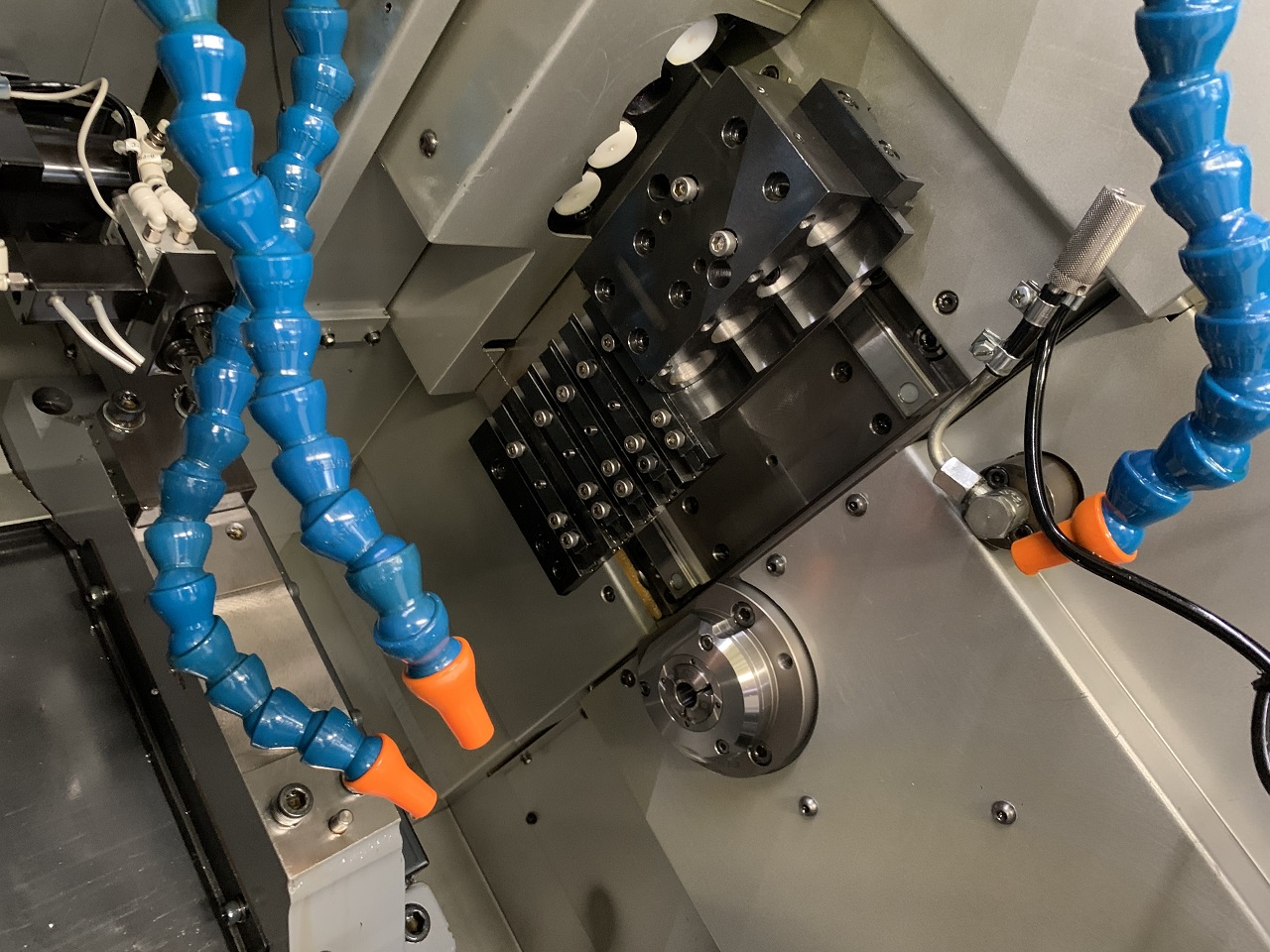

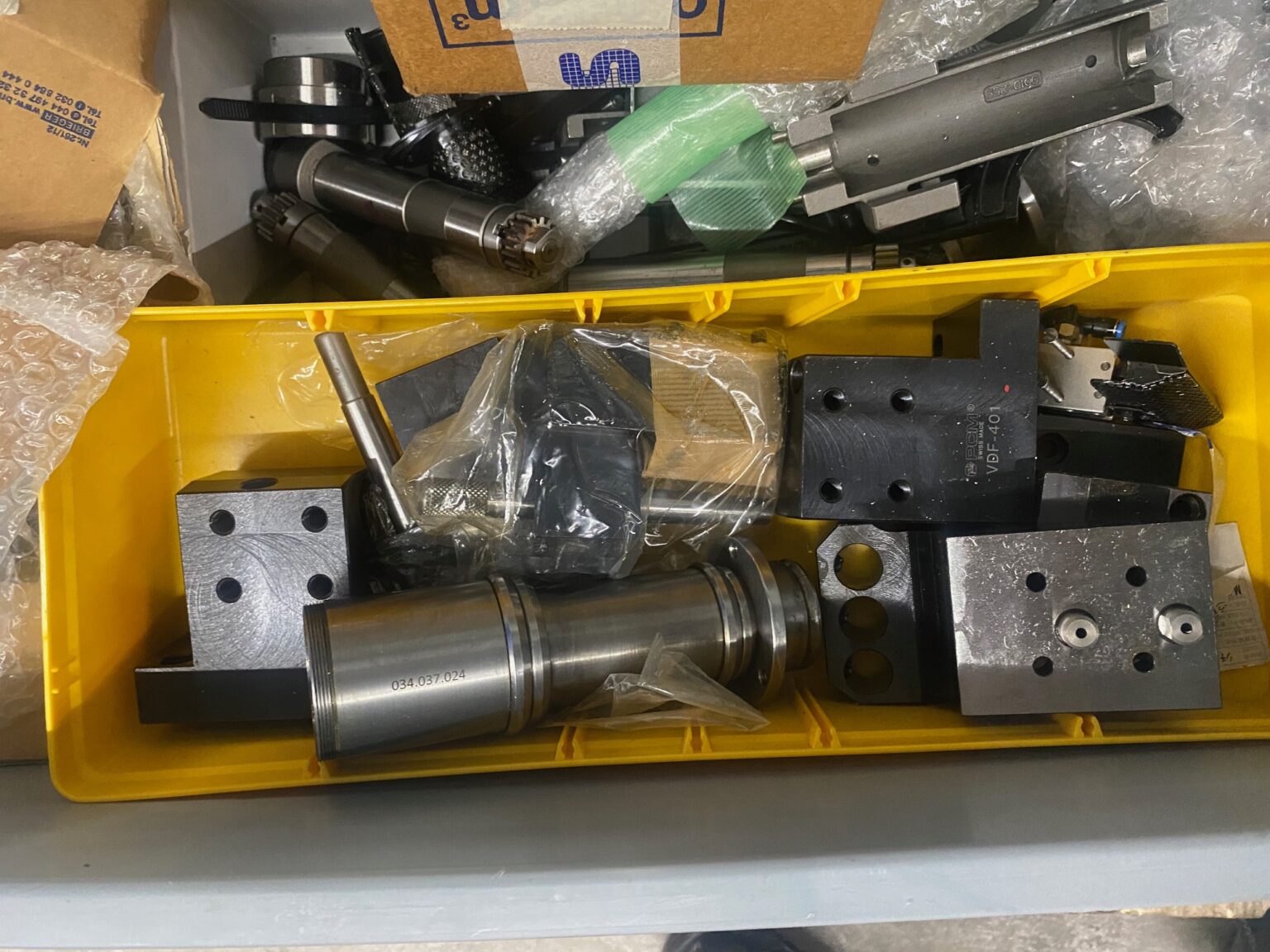

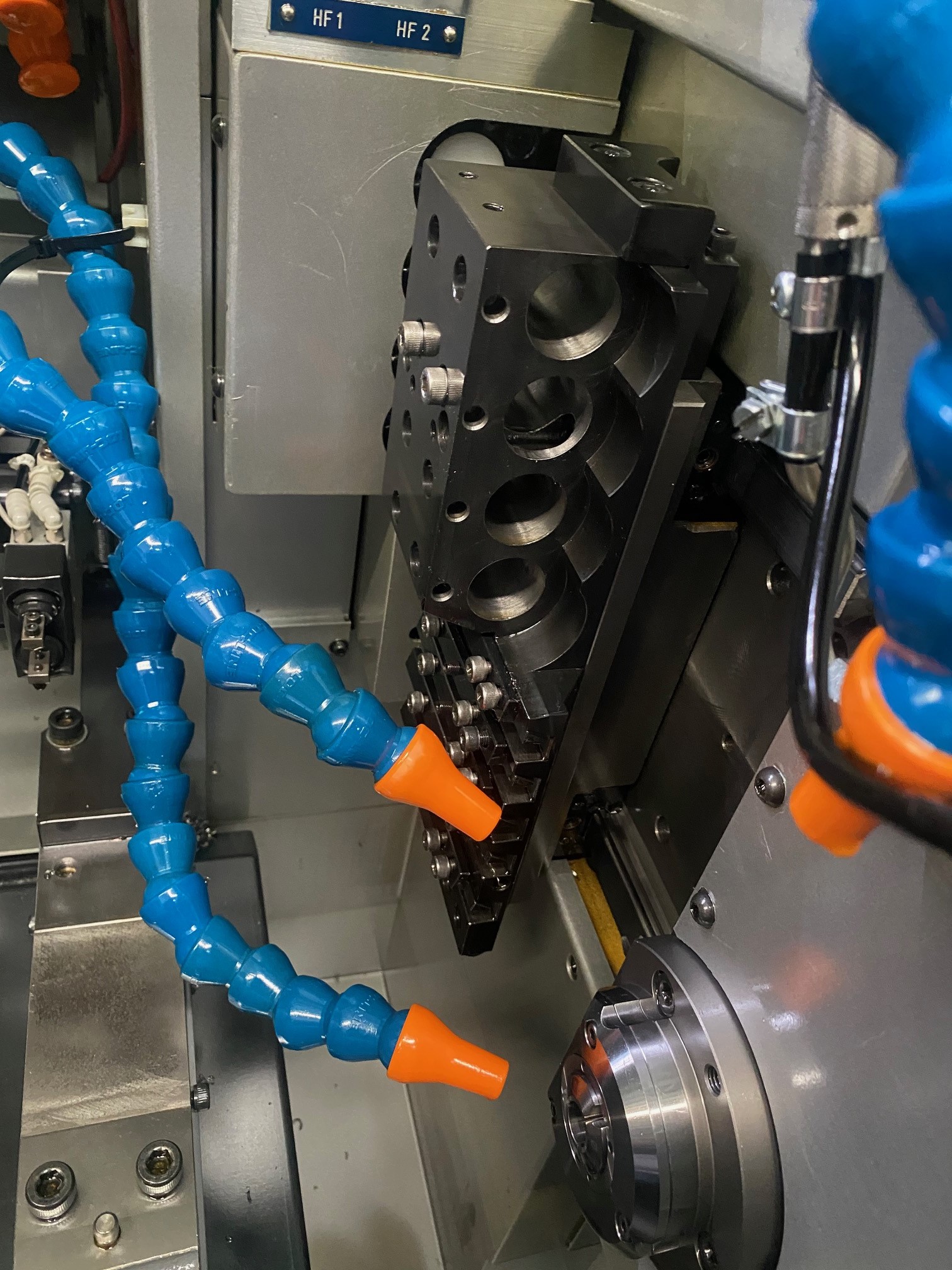

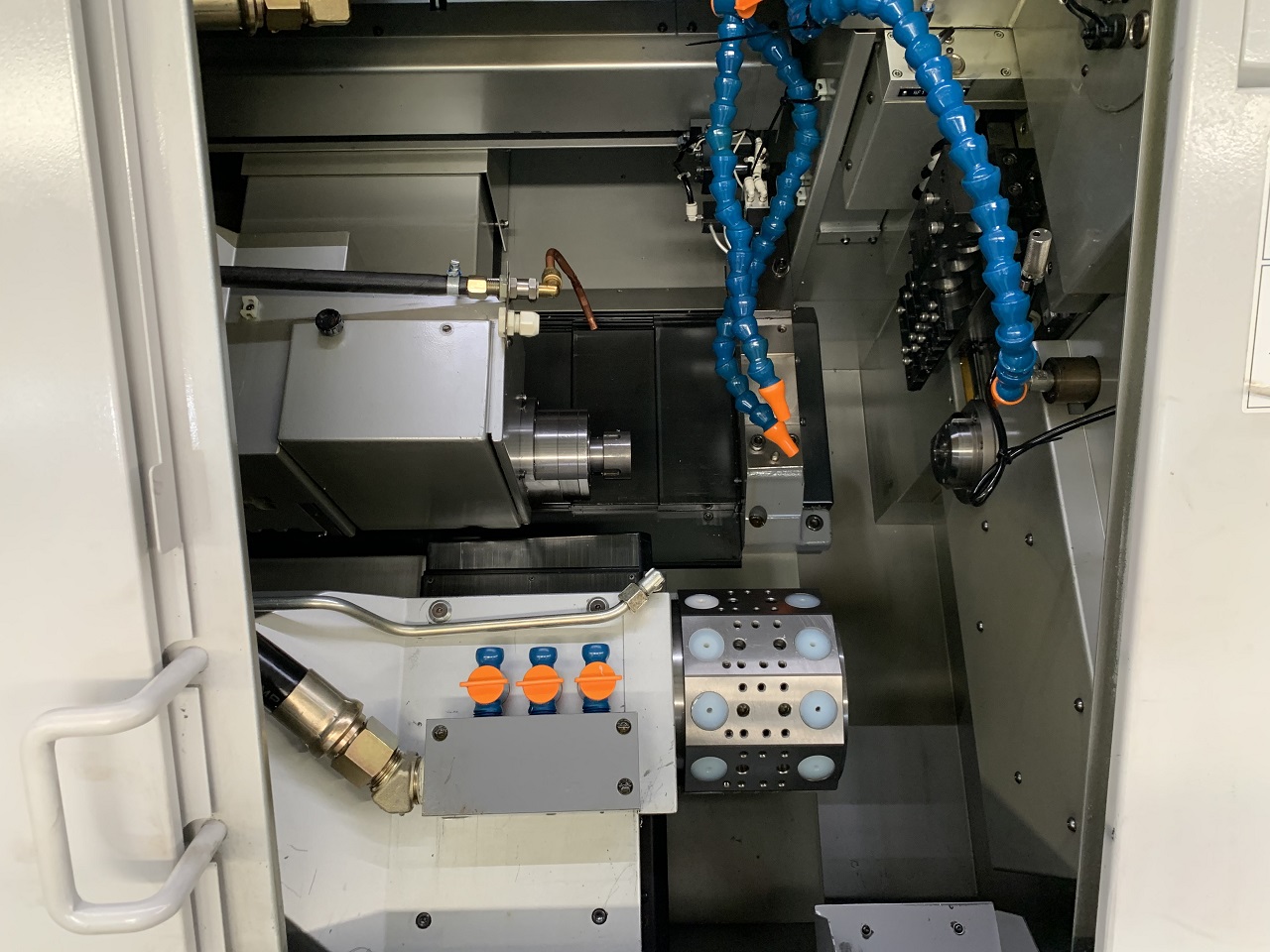

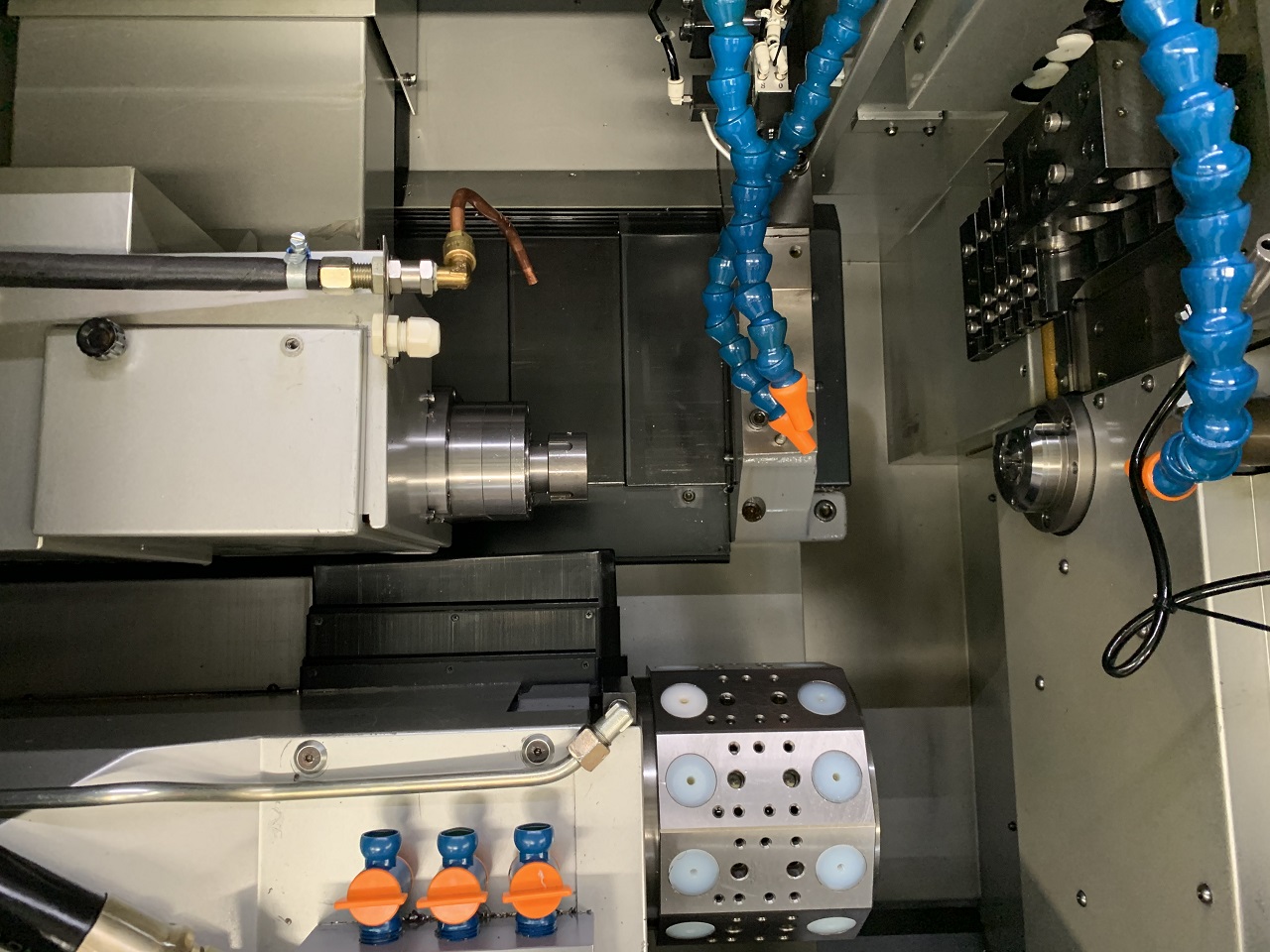

TOOLING CAPACITY

• Vertical Rotary Tool Holders: 4

• Rotary Tool Speed (Vertical Holder): 8,000 RPM

• Rotary Tool Drive Power: 0.75 kW

• Turret Tool Positions: 10

• Rotary Tool Speed (Turret): 6,500 RPM

• Turret Rotary Tool Drive Power: 0.75 kW

ADDITIONAL SPECIFICATIONS

• Number of Tools: 5

• Drill Holder for Back Machining: 3/2 Rotary (Option)

• Collet Sleeve Diameter: Ø19.05 mm

• Rotary Tool Holder Shank Section: 10 mm

• Collet Type (Main & Sub Spindle): F20 (138E)

• Drill Collets: ER11

• Guide Bush: Neukomm F605 (61.002)

• Rapid Feed Rate (All Axes): 20 m/min

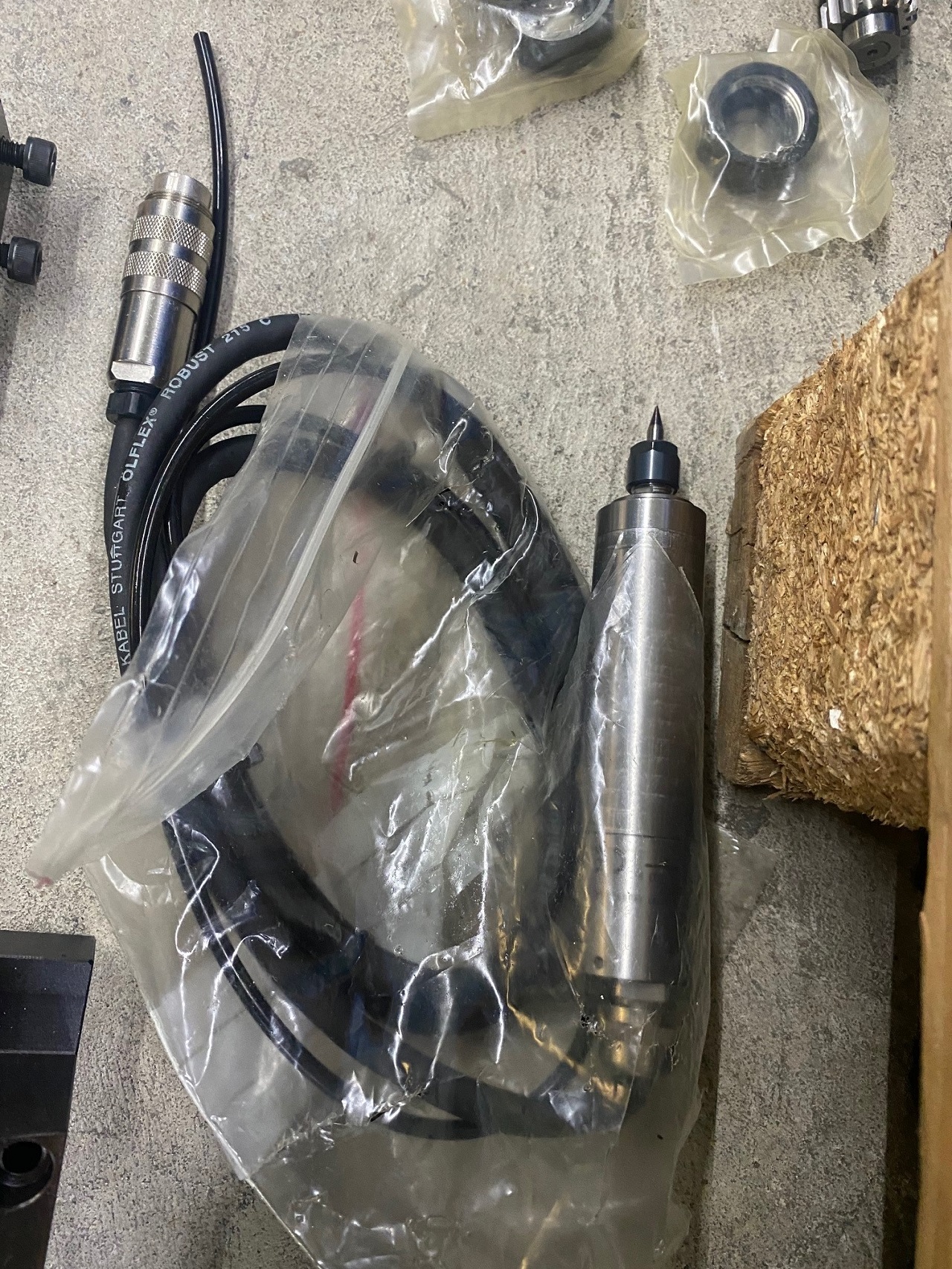

EQUIPPED WITH

• Main Spindle & Sub-Spindle

• Live Rotary Tooling

• CNC Swiss Sliding Headstock System

• Back Machining Capability

• F20 Collet System

• ER11 Drill Collets

• Neukomm Guide Bush System

FEATURES

✓ High-precision Swiss-type CNC lathe

✓ Dual spindle configuration for complete part machining

✓ 10,000 RPM main and sub-spindle speeds

✓ Live tooling capability for milling and drilling operations

✓ Excellent for small diameter precision components

✓ Fast rapid traverse rates for reduced cycle times

✓ Compact footprint with powerful machining capability

✓ Ideal for high-volume production of complex small parts

APPLICATIONS

• Medical Components

• Watch Industry Parts

• Electronics Components

• Aerospace Small Parts

• Precision Automotive Components

• Micro Machining

• High-Volume Small Diameter Production
