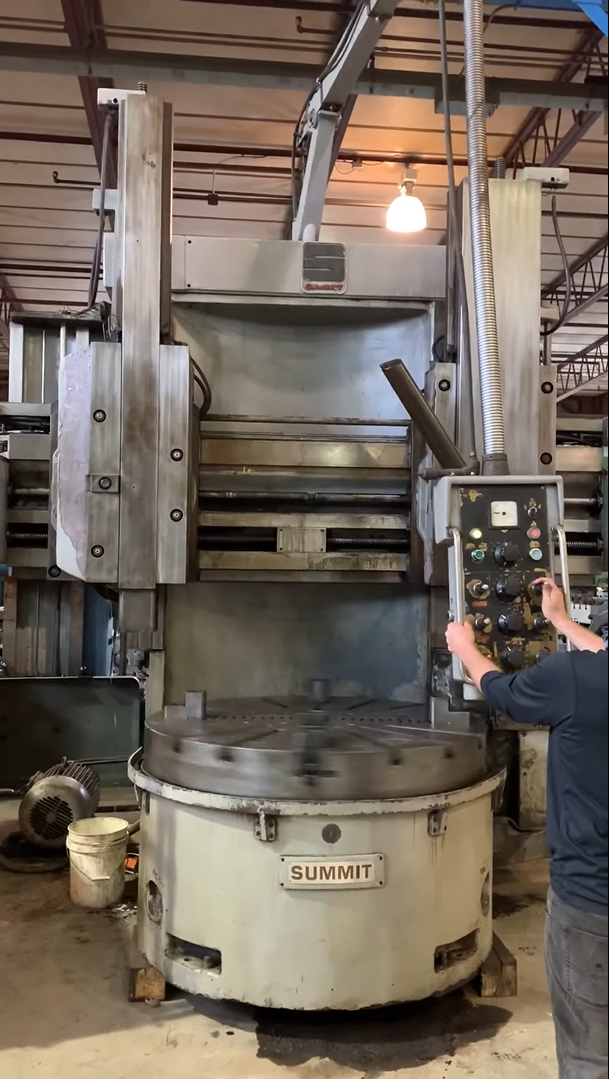

GENERAL INFORMATION

• Manufacturer: Summit
• Machine Type: Vertical Boring Mill (Vertical Turret Lathe)
• Condition: Used

SPECIFICATIONS

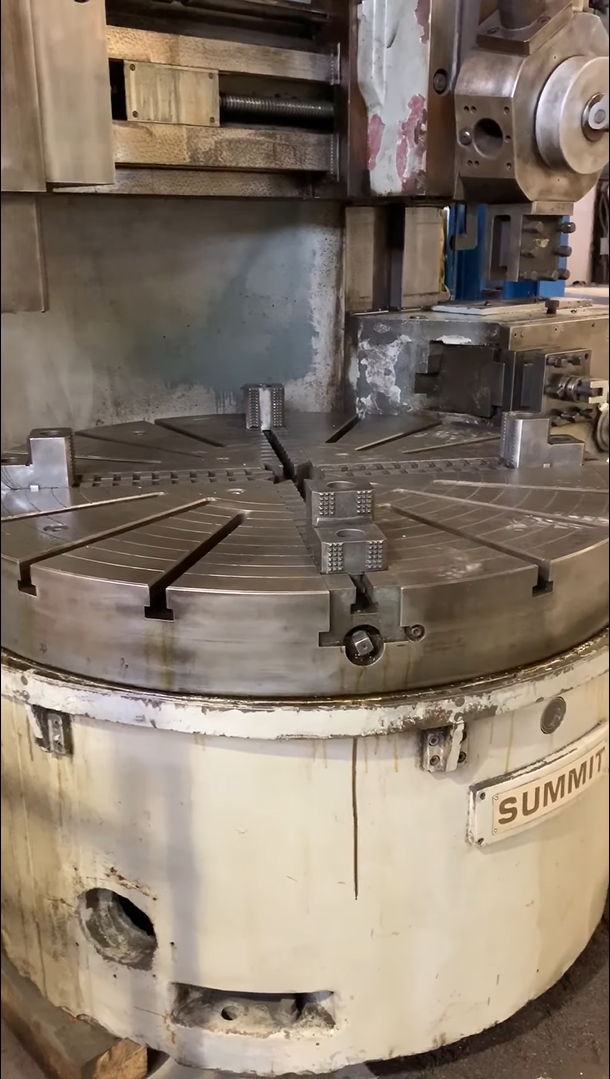

• Table Diameter: 57″
• Maximum Turning Diameter: 63″
• Maximum Height Under Rail: 47″
• Cross Rail Vertical Travel: 31.5″
• Ram Stroke: 48″
• Turret Stroke: 36″
• Ram & Turret Swivel: ±35°
• Table Speed: 2 – 200 RPM (Infinitely Variable)
• Table Gear Ranges: 3
• Maximum Workpiece Weight: 17,600 lbs.
• Main Drive Motor: 75 HP
• Machine Dimensions: 160″ L x 180″ W
• Machine Height: 161″
• Approximate Machine Weight: 47,500 lbs.

EQUIPPED WITH

• 57″ 4-Jaw Chuck

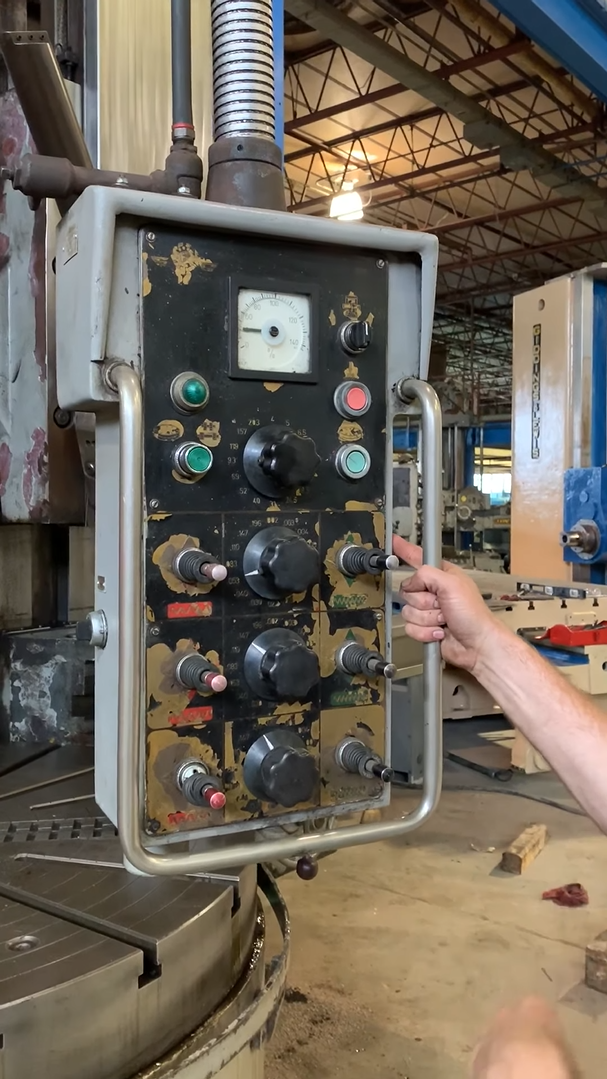

• Full Pendant Control
• Acu-Rite Digital Readouts on Ram & Turret

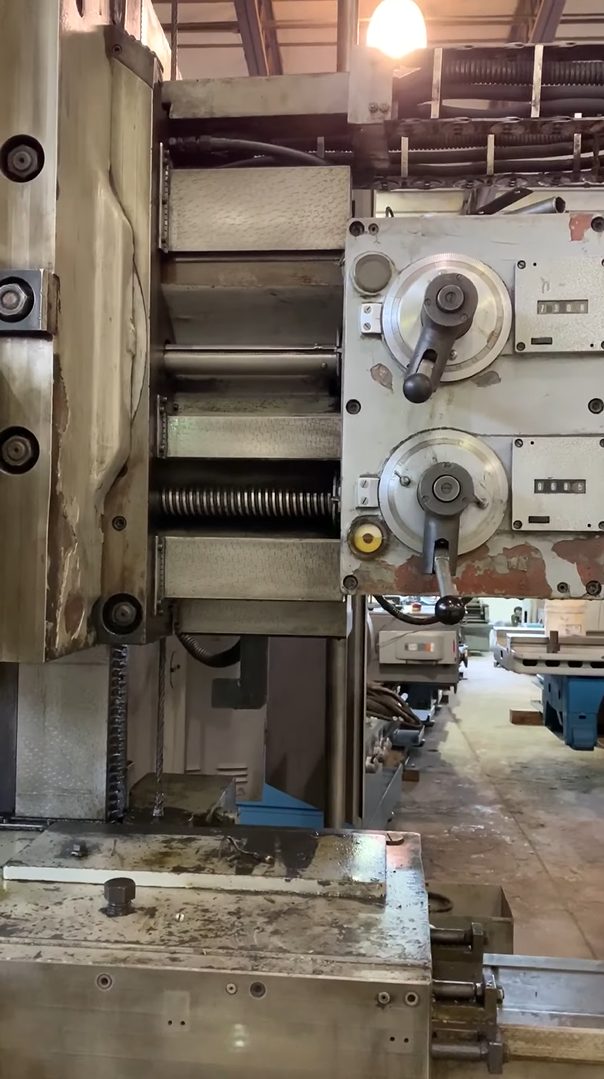

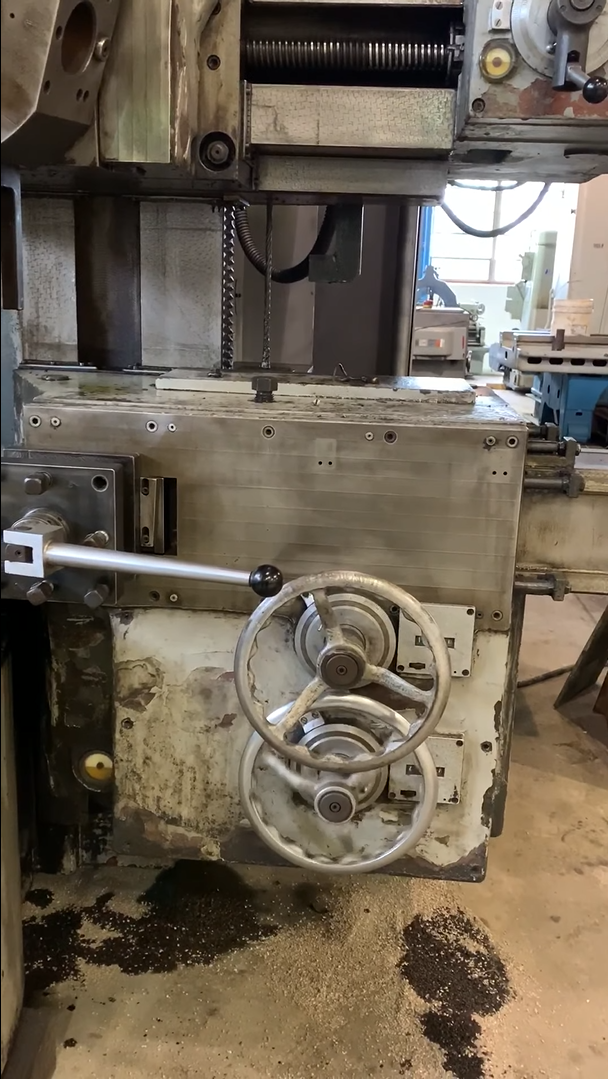

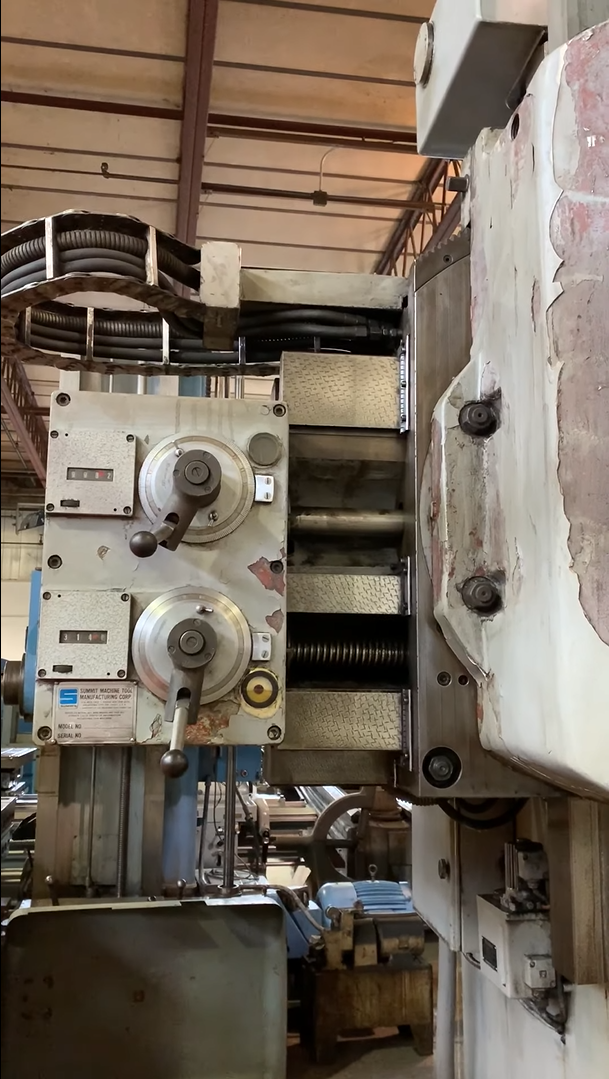

• Ram & Turret Assembly

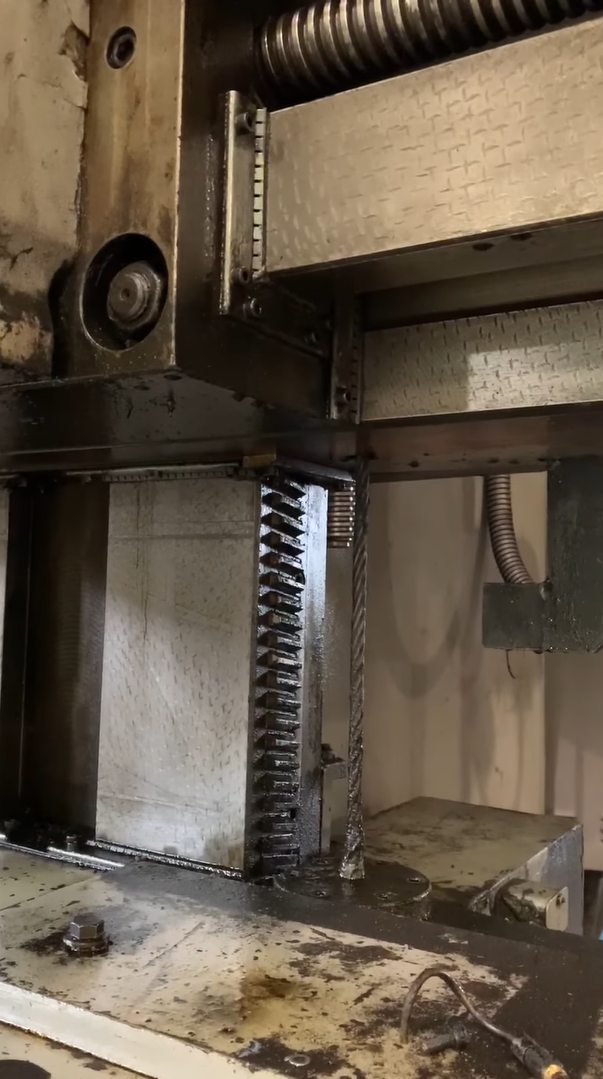

• Hardened Cross Rail Ways
• Coolant Pan
• Coolant Pump
• 75 HP Main Drive Motor

FEATURES

✓ Heavy-duty vertical boring mill for large diameter workpieces
✓ Infinitely variable table speeds for optimal cutting performance
✓ Powerful 75 HP main drive motor
✓ Large 57″ four-jaw chuck included
✓ Ram and turret swivel ±35° for increased machining flexibility
✓ Acu-Rite digital readouts provide accurate positioning
✓ Hardened cross rail ways for long service life
✓ Excellent rigidity for heavy-duty turning and boring operations

APPLICATIONS

• Large Flanges
• Bearing Housings
• Valve Bodies
• Turbine Components
• Mining Equipment
• Oil & Gas Components
• Heavy Industrial Parts
• General Large-Diameter Machining
