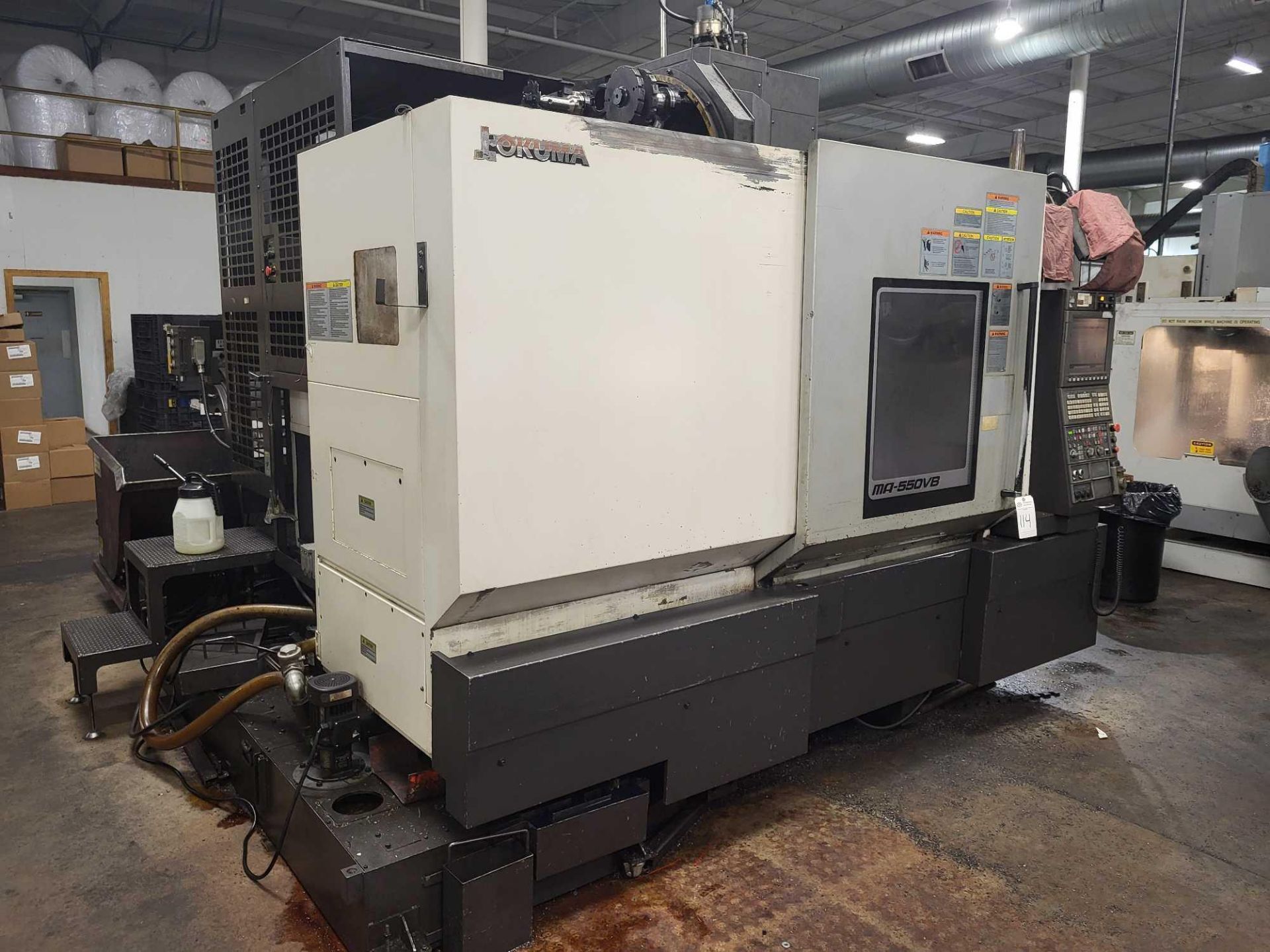

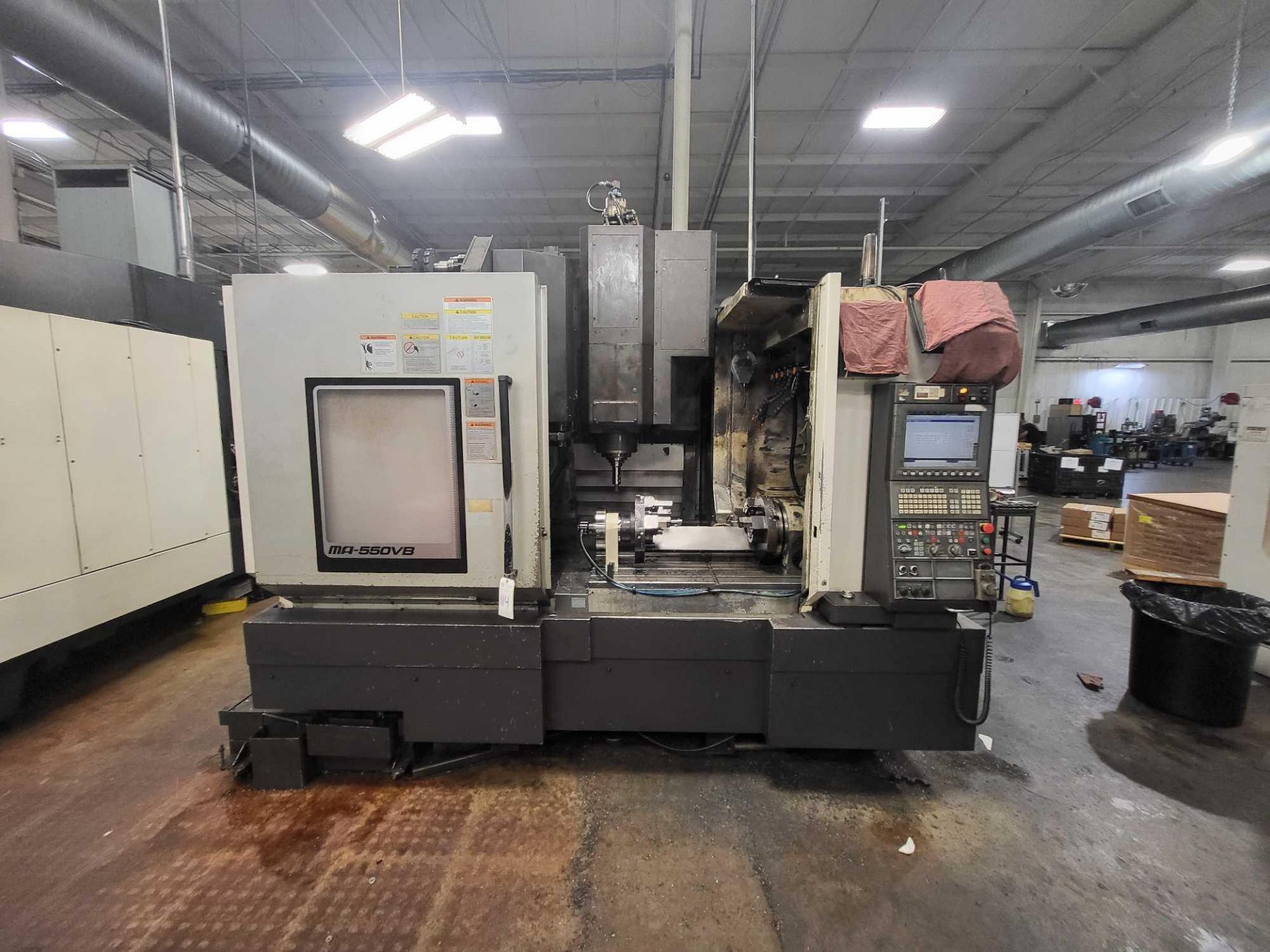

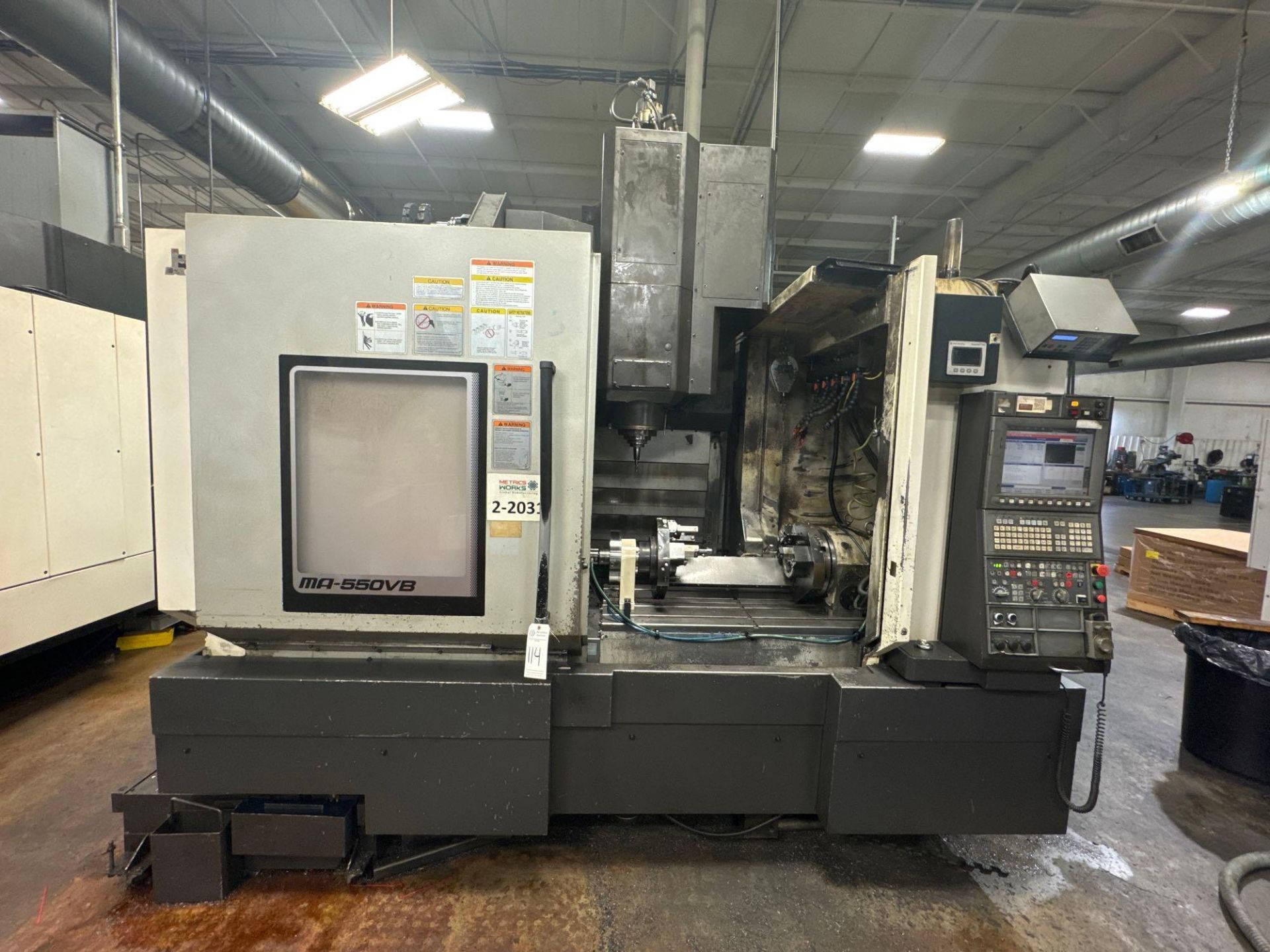

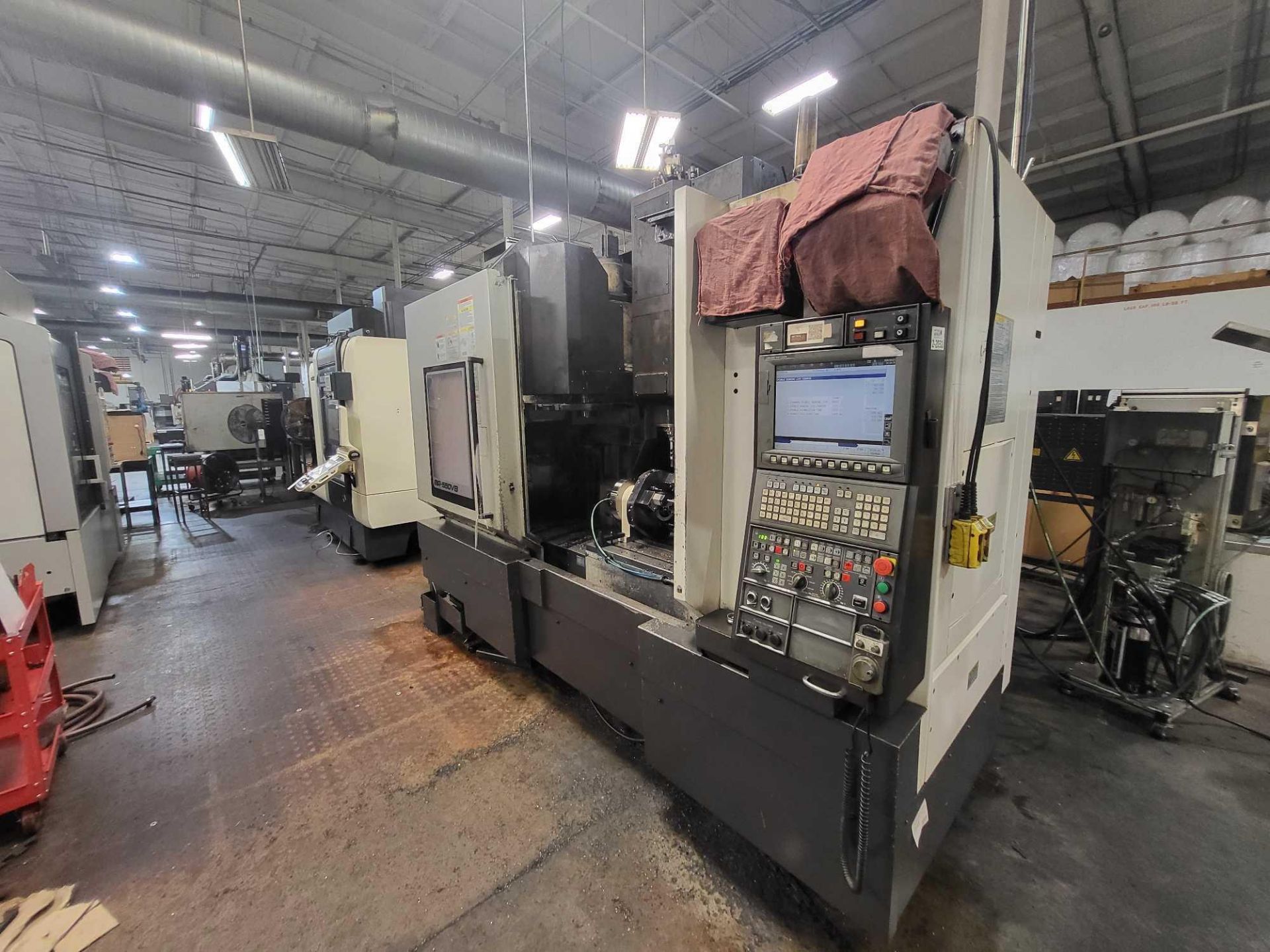

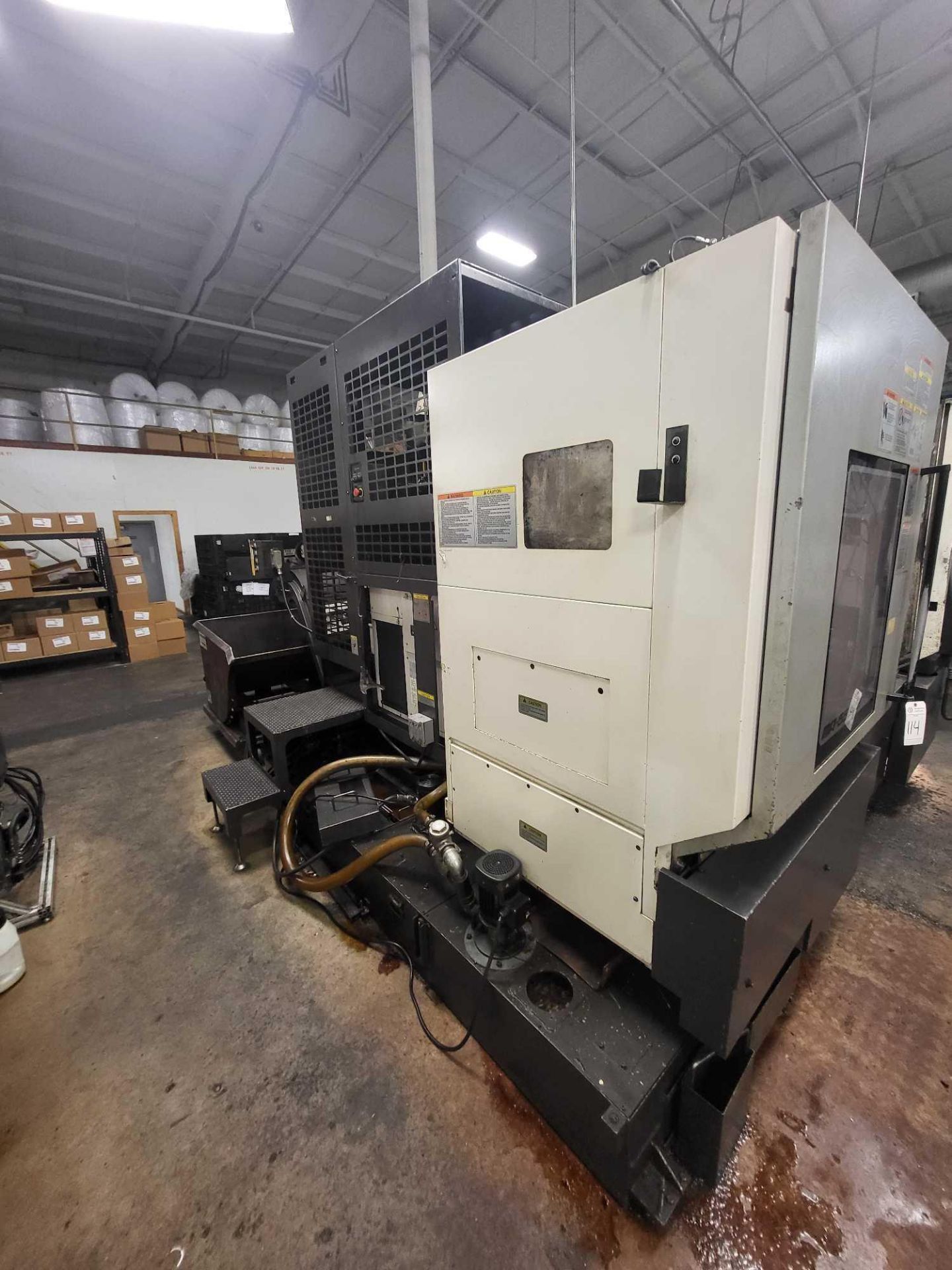

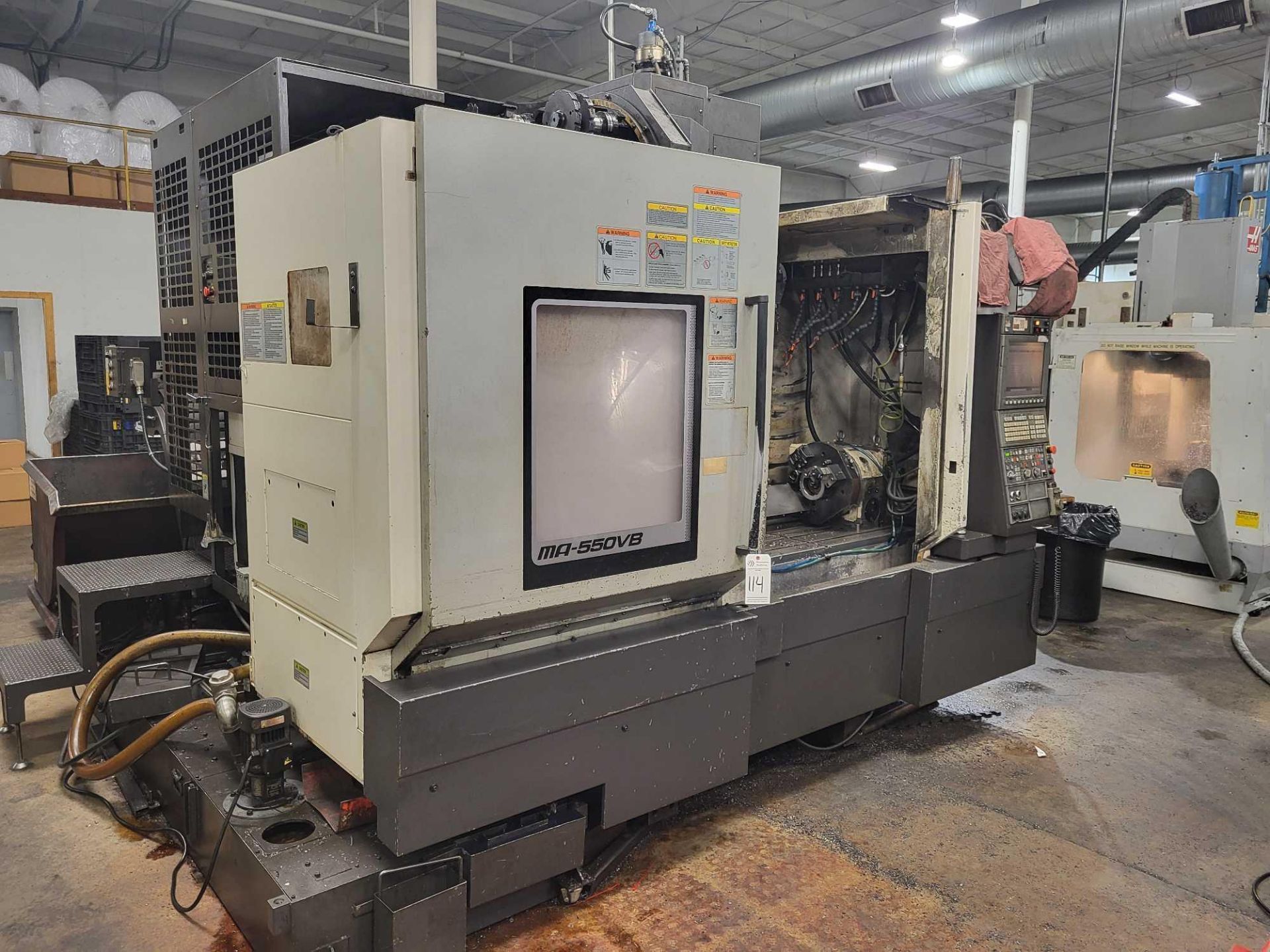

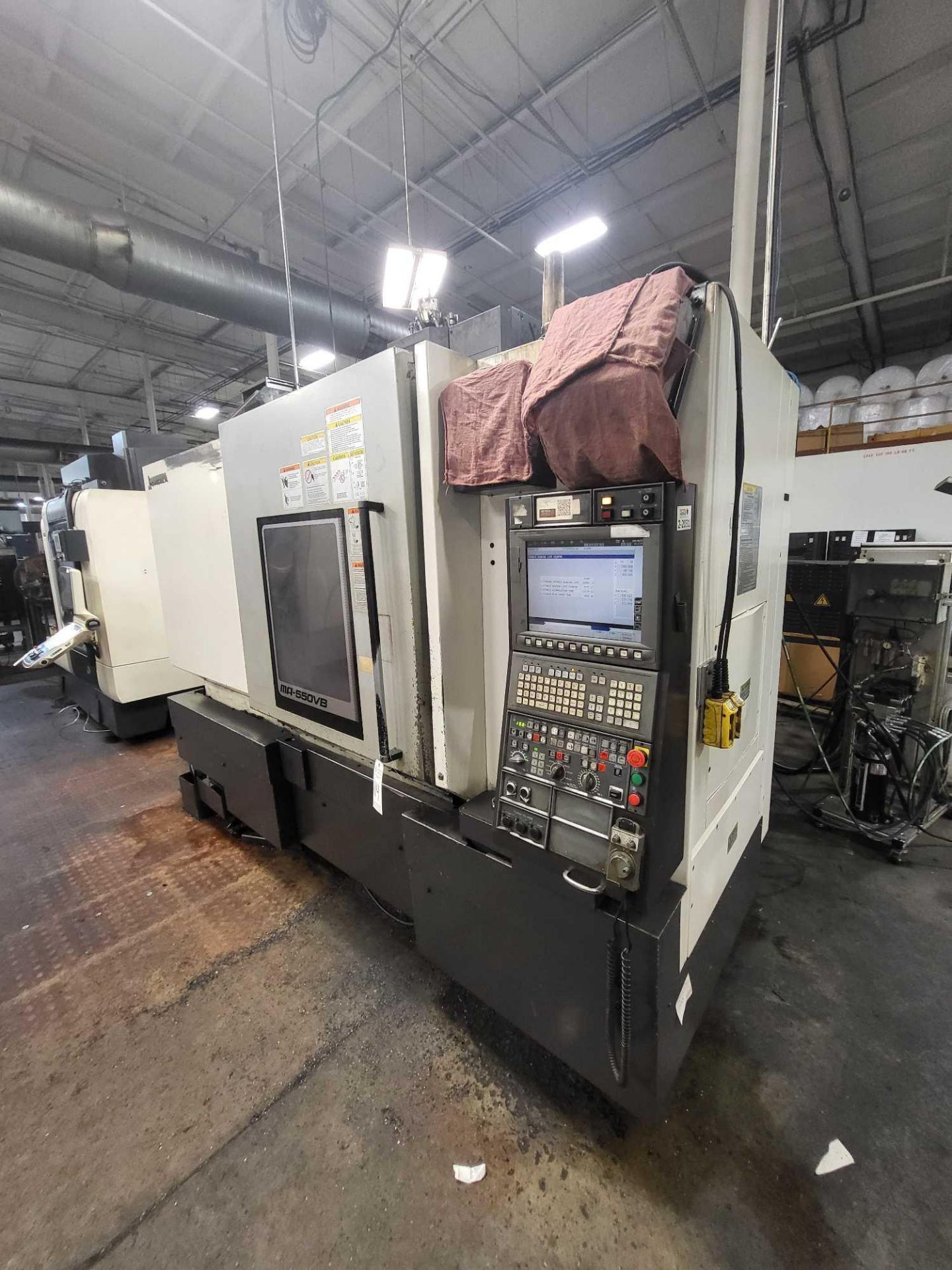

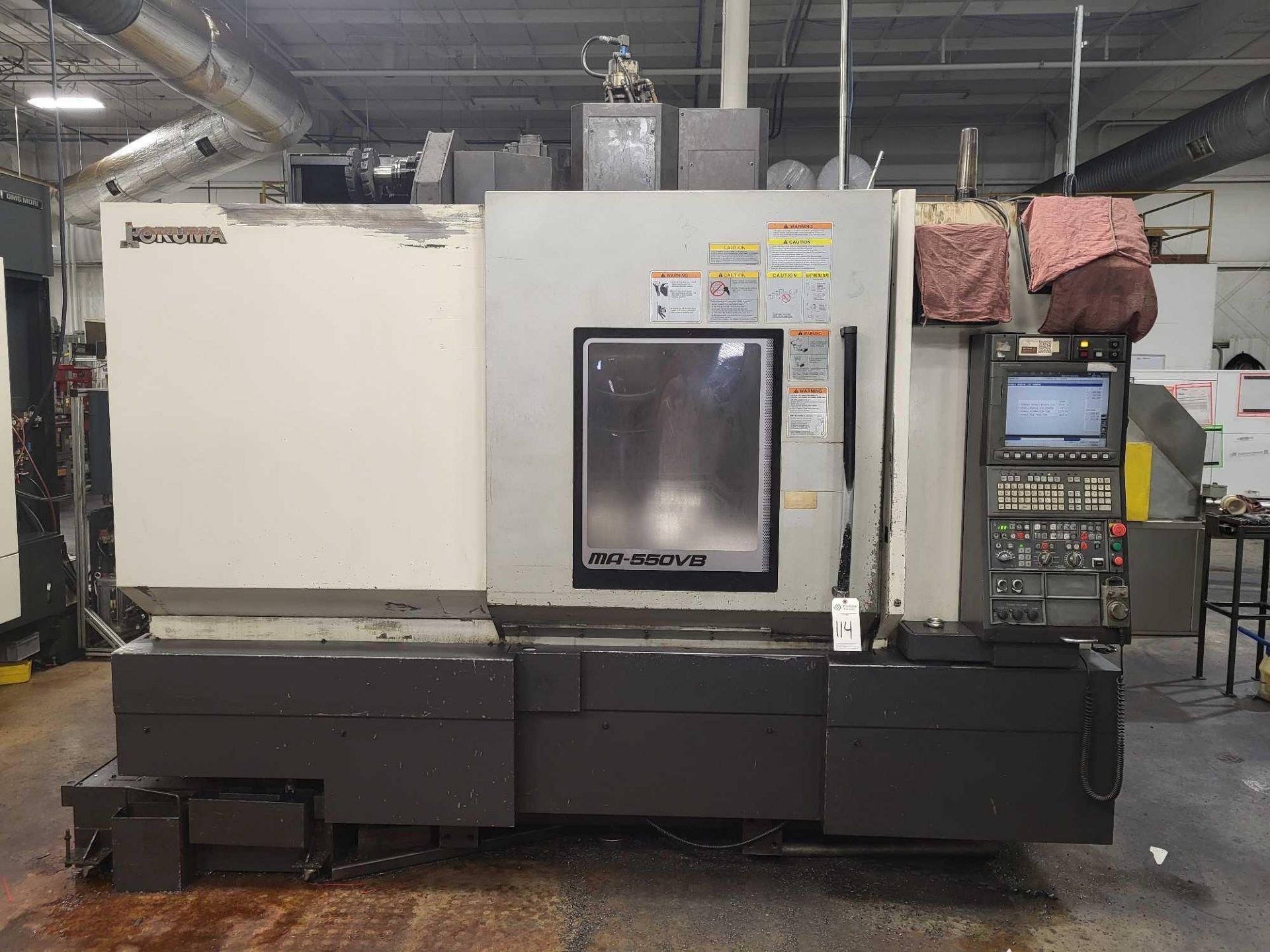

2014 OKUMA MA-550VB CNC VERTICAL MACHINING CENTER
The 2014 Okuma MA-550VB CNC Vertical Machining Center features a 51.18″ x 22.04″ table, CAT 50 spindle, 6,000 RPM, 20 HP motor, 32-tool ATC, and coolant-through-spindle capability — ideal for high-volume, precision vertical machining operations.
The 2014 Okuma MA-550VB CNC Vertical Machining Center is a high-performance, heavy-duty VMC built for demanding precision machining applications. With a generous 51.18″ x 22.04″ table and a table capacity of 2,204 lbs, this machine handles large, heavy workpieces with confidence.
- X-Axis Travel: 51.18 inches
- Y-Axis Travel: 22.04 inches
- Z-Axis Travel: 22.04 inches
- Rapid Traverse Rate (X/Y/Z): 1,181 IPM
- Spindle Taper: CAT 50
- Spindle Speed: 6,000 RPM
- Main Motor: 20 HP
- Tool Changer Capacity: 32 tools
- Coolant Through Spindle: Yes
- Machine Weight: 29,960 lbs
The integrated coolant-through-spindle system enhances tool life and machining efficiency. The 32-position automatic tool changer maximizes productivity for complex, multi-operation jobs. All specifications should be verified by the purchasing entity prior to acquisition.
SHIPPING DIMENSIONS
| Weight | 30000.47 lbs |
|---|---|
| Dimensions | 125.98 × 112.2 × 114.17 in |
